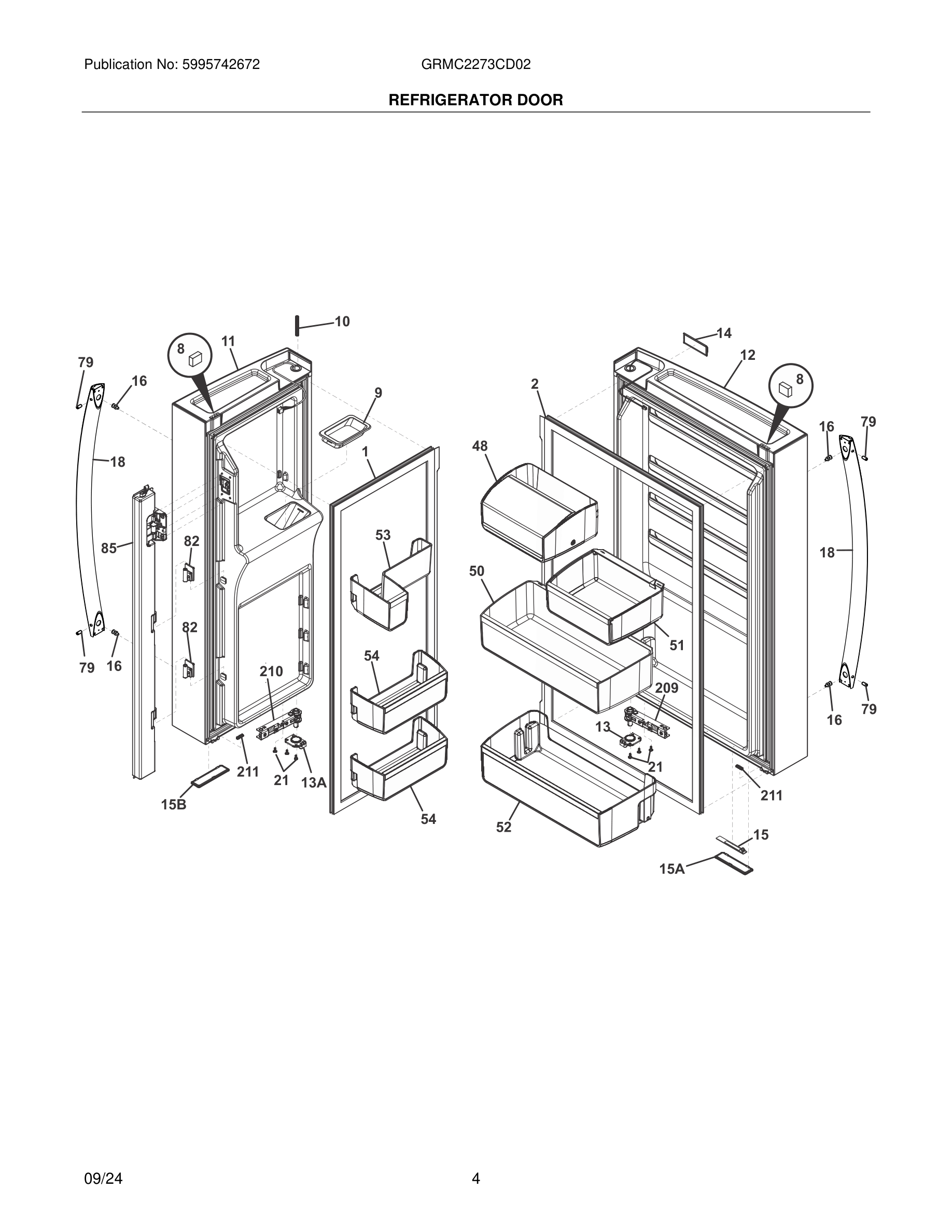

GRMC2273CD02 05 – REFRIGERATOR DOOR

GRMC2273CD02 05 – REFRIGERATOR DOOR

Written by

in

GRMC2273CD02 05 – REFRIGERATOR DOOR

Products

PositionProduct
*ALIGNMENT KIT, DOOR ADJUSTMENT
*242200102 Frigidaire Refrigerator Clip
15304529569 Frigidaire Refrigerator Gasket
25304529576 Frigidaire Refrigerator Gasket
85304519044 Frigidaire Magnet
95304526838 Frigidaire Frame
105304519067 Frigidaire Refrigerator Spring
11#5304529593 Frigidaire Refrigerator Door Assembly
125304529596 Frigidaire Refrigerator Door Assembly
13ASTOP, ASSEMBLY, LH DOOR
135304519070 Frigidaire Refrigerator Stop
145304510904 Frigidaire Refrigerator Nameplate
15B5304529570 Frigidaire Refrigerator Lens
15A5304526839 Frigidaire Lens Assembly
15#5304523011 Frigidaire Refrigerator Light Board
165304519063 Frigidaire Refrigerator Screw
18Handle Kit, fresh food, black stainless, (2 handles)
21241953902 Frigidaire Refrigerator Screw
485304519073 Frigidaire Bin Assembly
505304526860 Frigidaire Refrigerator Bin
51BIN ASMY,FLEX,DOOR,SLIDE
525304519077 Frigidaire Refrigerator Bin
535304519078 Frigidaire Refrigerator Bin
545304519079 Frigidaire Refrigerator Bin
79218755405 Frigidaire Refrigerator Screw Set
79*5304508270 Frigidaire Wrench
825304519080 Frigidaire Refrigerator Hinge
85*Screw, hilo phil pn, .5", white
85*#5304531674 Frigidaire Heater
85#5304519081 Frigidaire Refrigerator Mullion Assembly
2095304526201 Frigidaire Refrigerator Right Hand Door Closer Without
2105304526202 Frigidaire Refrigerator Left Hand Door Closer
2115304519083 Frigidaire Refrigerator Bumper
