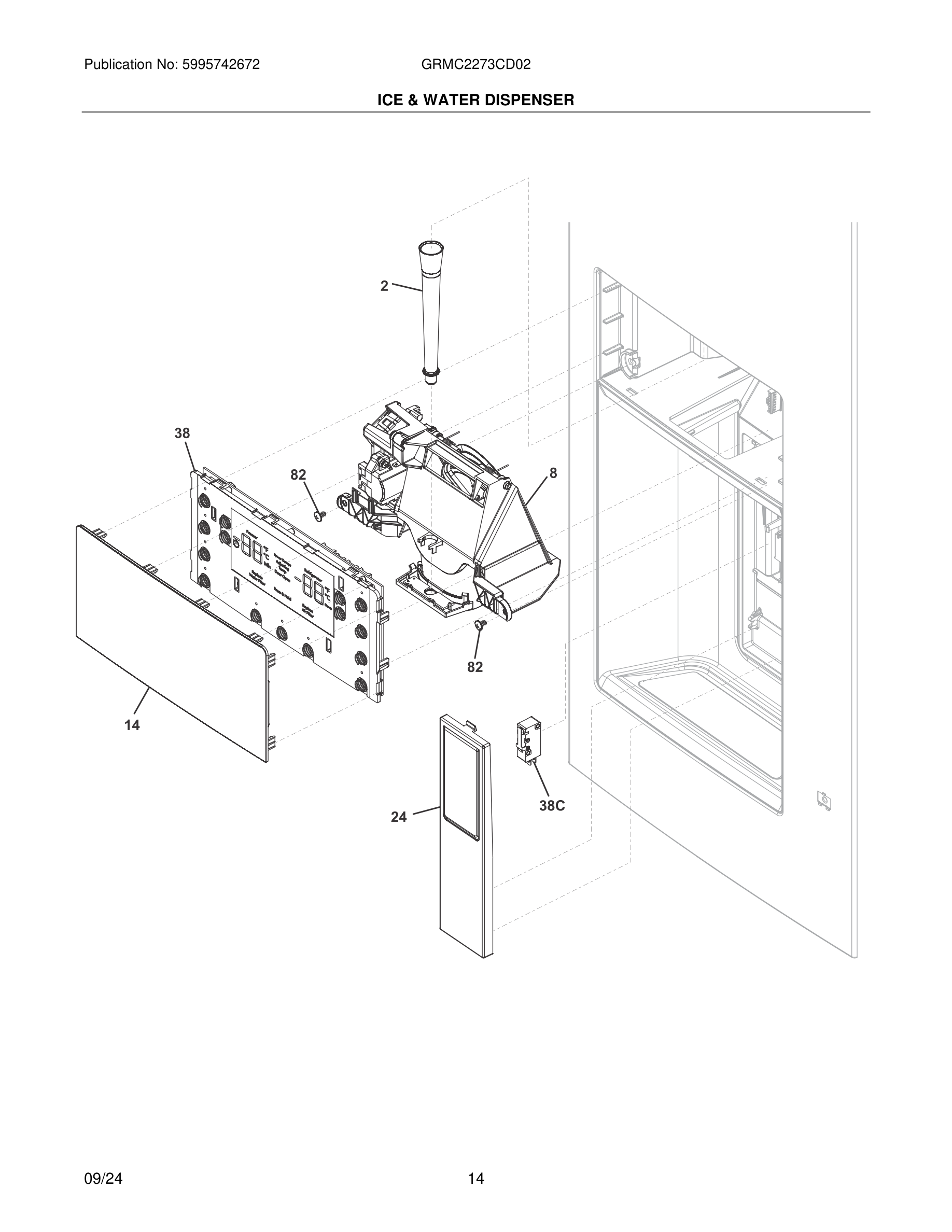

GRMC2273CD02 15 – ICE & WATER DISPENSER

Written by

Products

Position	Product
*	242200102 Frigidaire Refrigerator Clip
2	5304519194 Frigidaire Refrigerator Guide
8#	5304529571 Frigidaire Refrigerator Dispenser Assembly
14	OVERLAY
24*	5304519199 Frigidaire Refrigerator Spring
24	5304529595 Frigidaire Assembly-Paddle
38C#	5304523072 Frigidaire Refrigerator Switch
38#	DISPLAY BOARD,ASMY,USER INTERF
82	241953902 Frigidaire Refrigerator Screw
