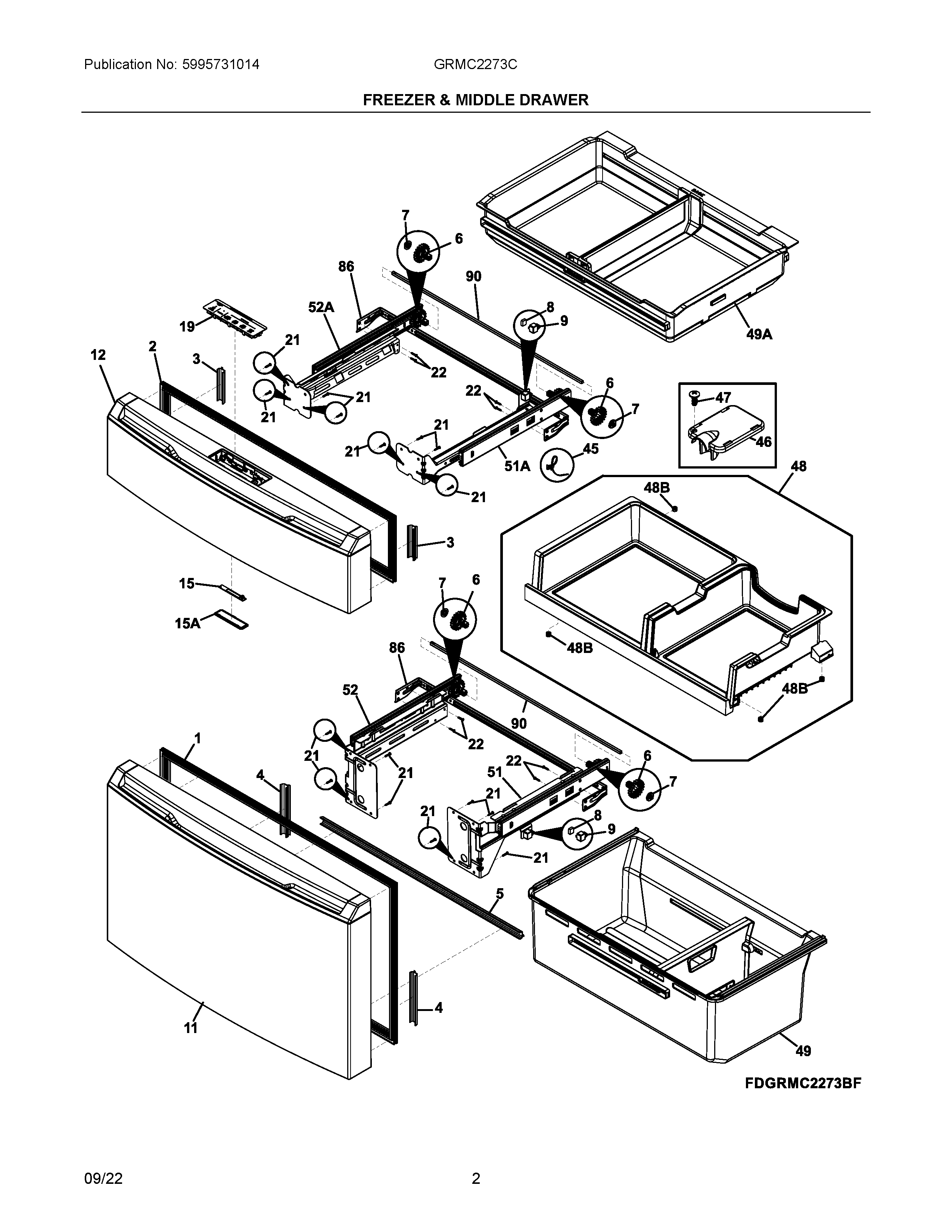

GRMC2273CF00 02 – FREEZER & MIDDLE DRAWER

GRMC2273CF00 02 – FREEZER & MIDDLE DRAWER

Written by

in

GRMC2273CF00 02 – FREEZER & MIDDLE DRAWER

Products

PositionProduct
NIBA811949503 Frigidaire Screw
NIASCREW, PHIL PN HD, M4 X 8
NIA5304519084 Frigidaire Screw
15304519037 Frigidaire Refrigerator Gasket
25304519038 Frigidaire Refrigerator Gasket
35304519041 Frigidaire Refrigerator Gasket
65304524001 Frigidaire Refrigerator Gear
75304519043 Frigidaire Refrigerator Bearing
85304519044 Frigidaire Magnet
9SUPPORT
11DOOR ASSEMBLY, OUTER, STAINLESS, FREEZER
125304536613 Frigidaire Door Assembly
155304523011 Frigidaire Refrigerator Light Board
15A5304526839 Frigidaire Lens Assembly
195304529567 Frigidaire Refrigerator Display Assembly
21811949401 Frigidaire Refrigerator Screw
225304519053 Frigidaire Refrigerator Screw
45539151026 Frigidaire Clip
465304529565 Frigidaire Cover
47241953902 Frigidaire Refrigerator Screw
485304529589 Frigidaire Drawer Assembly
48BCushion,rubber ,freezer drw
49A5304529588 Frigidaire Refrigerator Basket Assembly
495304519057 Frigidaire Refrigerator Assembly-Basket
515304519059 Frigidaire Refrigerator Slider
51A5304529564 Frigidaire Slider
525304519061 Frigidaire Refrigerator Slider
52A5304529563 Frigidaire Slider
865304519064 Frigidaire Refrigerator Bracket
905304524002 Frigidaire Shaft
