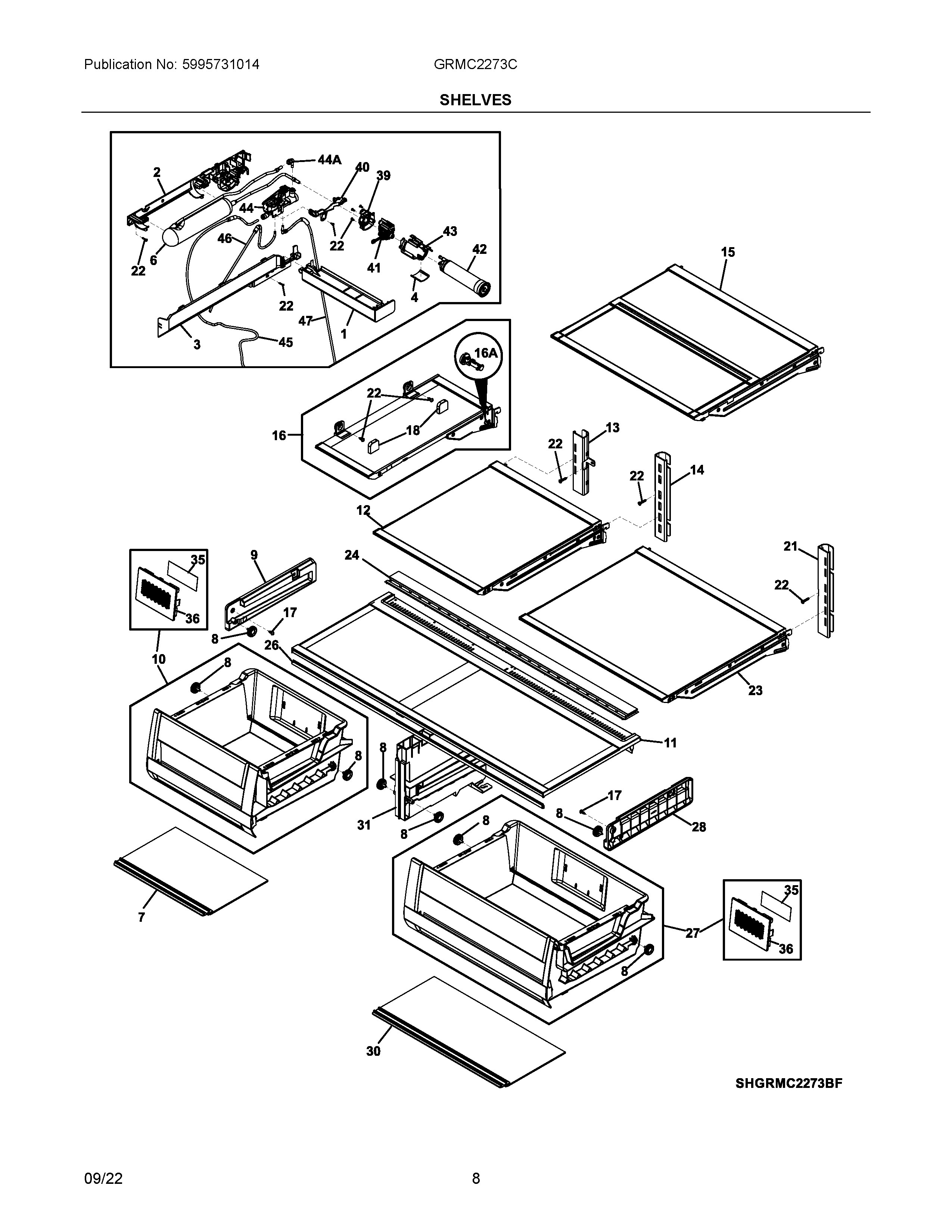

GRMC2273CF00 05 – SHELVES

GRMC2273CF00 05 – SHELVES

Written by

in

GRMC2273CF00 05 – SHELVES

Products

PositionProduct
NI242200102 Frigidaire Refrigerator Clip
NIASCREW
NIA5304529553 Frigidaire Seal
15304529551 Frigidaire Cover
25304529543 Frigidaire Support
3COVER, WATER TANK
45304529552 Frigidaire Seal
65304523037 Frigidaire Refrigerator Tank
75304519123 Frigidaire Refrigerator Cover
85304519124 Frigidaire Roller
95304519125 Frigidaire Refrigerator Rail
105304529585 Frigidaire Refrigerator Drawer Assembly
11COVER ASSEMBLY, CRISPERS, W/GLASS
125304523041 Frigidaire Shelf Assembly
13Bracket, cantilever shlf, LH
14Bracket, cantilever shlf, center
155304523044 Frigidaire Shelf Assembly
165304523045 Frigidaire Shelf Assembly
16A5304523682 Frigidaire Pin
17Screw, hilo phil pn, .5", white
185304519133 Frigidaire Refrigerator Cover Assembly
215304519136 Frigidaire Bracket Assembly
22811949503 Frigidaire Screw
23SHELF ASSEMBLY, CANTILEVER, GLASS, RH
245304523048 Frigidaire Housing Assembly
265304519140 Frigidaire Refrigerator Gasket
275304537361 Frigidaire Drawer Assembly
28Rail, crisper, RH side
305304519143 Frigidaire Refrigerator Cover
315304532661 Frigidaire Dishwasher Divider
35FRIGIDAIRE PA PK-2 REFILL
365304529586 Frigidaire Refrigerator Cover
39COVER
405304529545 Frigidaire Guide
415304529546 Frigidaire Refrigerator Manifold
42FPPWFU02 Refrigerator PurePour Connect PWF-2 Water Filter
435304529547 Frigidaire Refrigerator Cover
44A5304523053 Frigidaire Refrigerator Connector
445304529544 Frigidaire Refrigerator Water Valve
455304524353 Frigidaire Refrigerator Tubing
465304527422 Frigidaire Refrigerator Tube
475304529549 Frigidaire Refrigerator Tube
