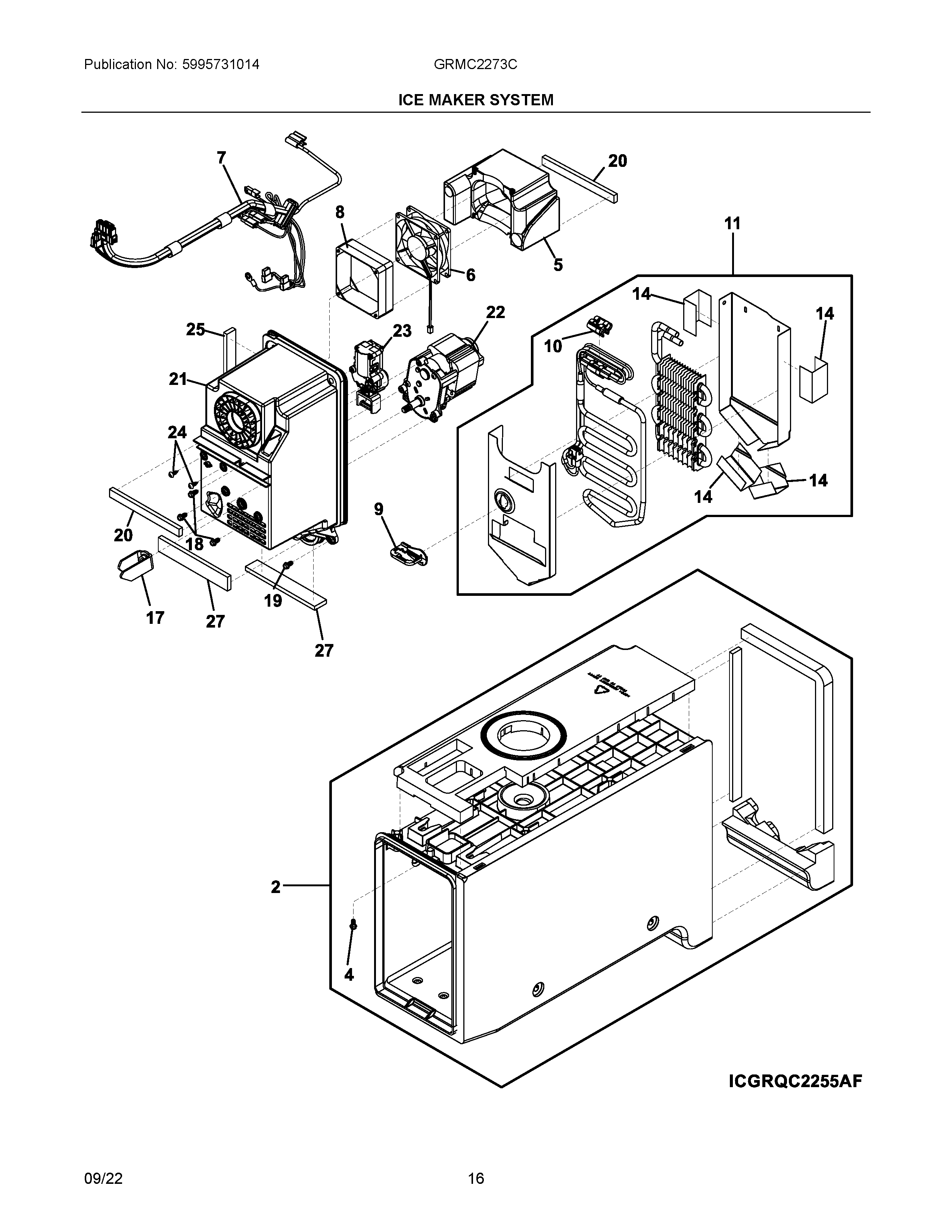

GRMC2273CF00 09 – ICE MAKER SYSTEM

Products

Position	Product
2	5303918901 Frigidaire Ice Maker Housing
4	241953902 Frigidaire Refrigerator Screw
5	5304523073 Frigidaire Refrigerator Duct
6	5304524796 Frigidaire Refrigerator Motor
7	5304532656 Frigidaire Refrigerator Harness
8	5304508063 Frigidaire Refrigerator Grommet
9	5304508037 Frigidaire Refrigerator Connector
10	5304519629 Frigidaire Refrigerator Clip
11	5304519630 Frigidaire Refrigerator Evaporator Assembly
14	5304485759 Frigidaire Refrigerator Tape
17	241829001 Frigidaire Refrigerator Bar Drive
18	240555002 Frigidaire Refrigerator Screw #8-32 X 3/8
19	519088008 Frigidaire Refrigerator Screw
20	5304519209 Frigidaire Refrigerator Gasket
21	5304534888 Frigidaire Housing
22	5304519208 Frigidaire Refrigerator Motor
23	5304526819 Frigidaire Refrigerator Selector
24	218359202 Frigidaire Refrigerator Screw
25	5303918784 Frigidaire Refrigerator Air Handler Housing
27	5304519211 Frigidaire Refrigerator Gasket
