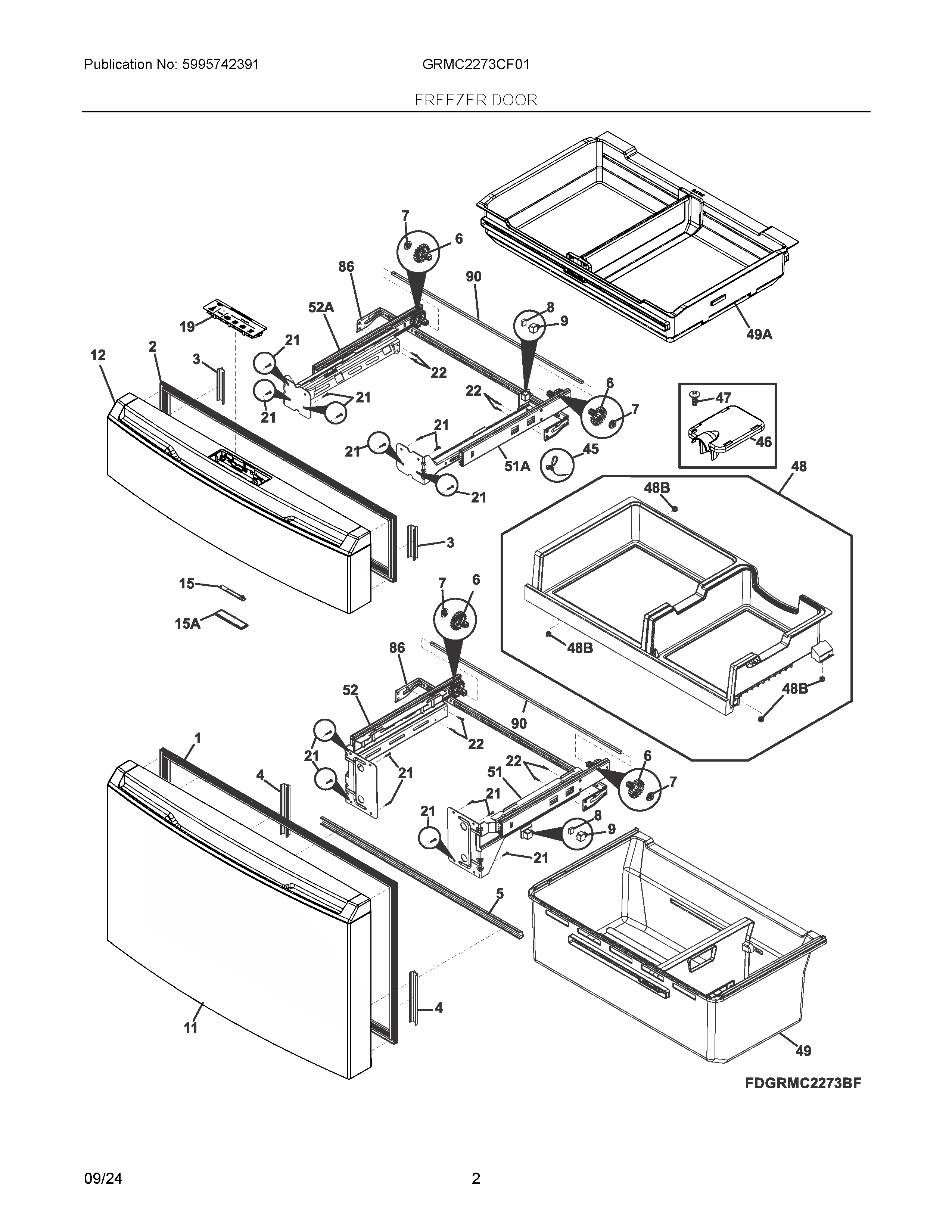

GRMC2273CF01 02 – FREEZER DOOR

Products

Position	Product
NIB	811949503 Frigidaire Screw
NIA	SCREW, PHIL PN HD, M4 X 8
NIA	5304519084 Frigidaire Screw
1	5304519037 Frigidaire Refrigerator Gasket
2	5304519038 Frigidaire Refrigerator Gasket
3	5304519041 Frigidaire Refrigerator Gasket
6	5304524001 Frigidaire Refrigerator Gear
7	5304519043 Frigidaire Refrigerator Bearing
8	5304519044 Frigidaire Magnet
9	SUPPORT
11	DOOR ASSEMBLY, OUTER, STAINLESS, FREEZER
12	5304536613 Frigidaire Door Assembly
15	5304523011 Frigidaire Refrigerator Light Board
15A	5304526839 Frigidaire Lens Assembly
19	5304529567 Frigidaire Refrigerator Display Assembly
21	811949401 Frigidaire Refrigerator Screw
22	5304519053 Frigidaire Refrigerator Screw
45	539151026 Frigidaire Clip
46	5304529565 Frigidaire Cover
47	241953902 Frigidaire Refrigerator Screw
48	5304529589 Frigidaire Drawer Assembly
48B	Cushion,rubber ,freezer drw
49A	5304529588 Frigidaire Refrigerator Basket Assembly
49	5304519057 Frigidaire Refrigerator Assembly-Basket
51	5304519059 Frigidaire Refrigerator Slider
51A	5304529564 Frigidaire Slider
52	5304519061 Frigidaire Refrigerator Slider
52A	5304529563 Frigidaire Slider
86	5304519064 Frigidaire Refrigerator Bracket
90	5304524002 Frigidaire Shaft
