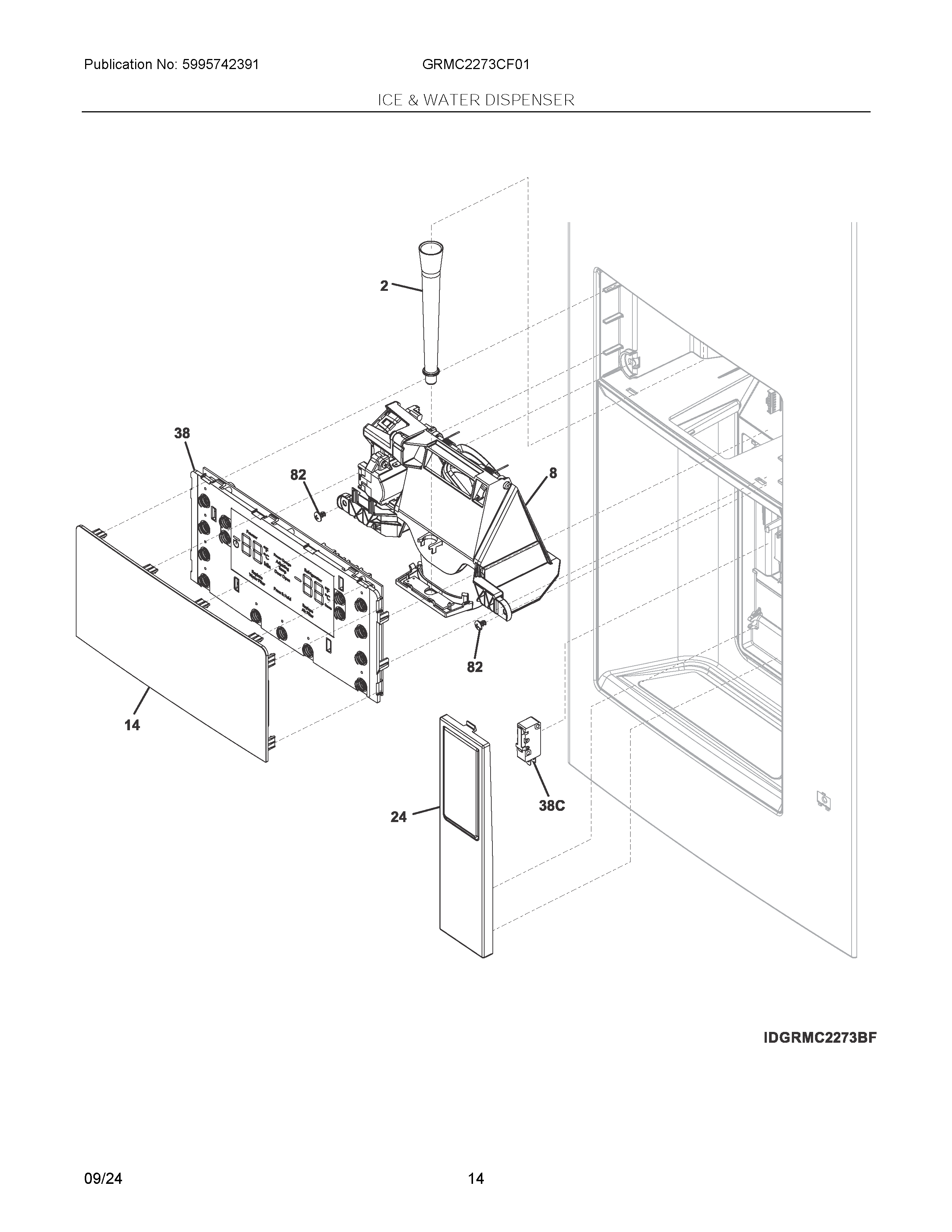

GRMC2273CF01 08 – ICE & WATER DISPENSER

GRMC2273CF01 08 – ICE & WATER DISPENSER

Written by

in

GRMC2273CF01 08 – ICE & WATER DISPENSER

Products

PositionProduct
NI242200102 Frigidaire Refrigerator Clip
NIA5304519199 Frigidaire Refrigerator Spring
25304519194 Frigidaire Refrigerator Guide
85304529571 Frigidaire Refrigerator Dispenser Assembly
145304532657 Frigidaire Overlay
245304529574 Frigidaire Assembly Paddle
38C5304523072 Frigidaire Refrigerator Switch
38DISPLAY BOARD,ASMY,USER INTERF
82241953902 Frigidaire Refrigerator Screw
