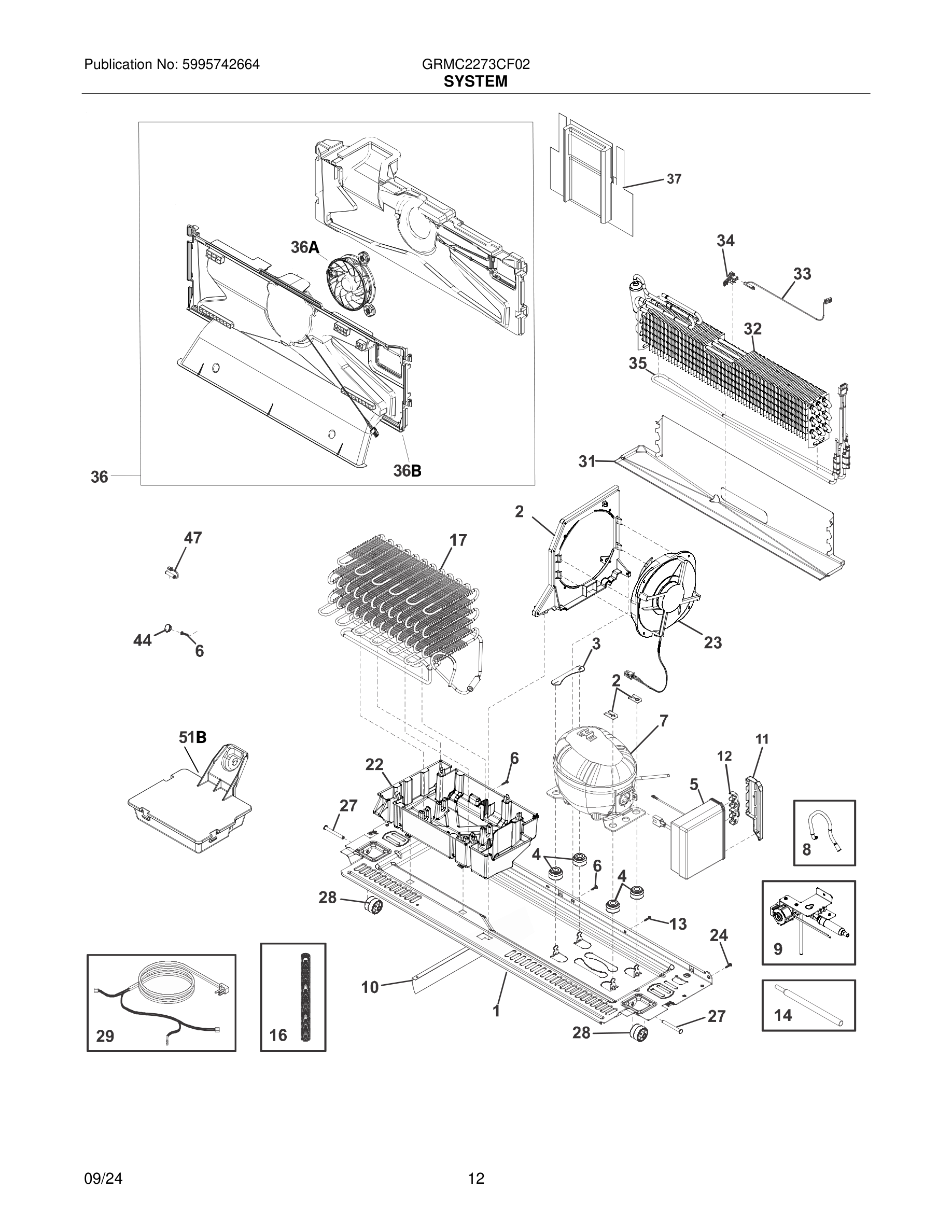

GRMC2273CF02 13 – SYSTEM

Products

Position	Product
*	811950601 Frigidaire Refrigerator Seal
1	BASE, COMPRESSOR ASSY
2	CLAMP, COMPRESSOR, SINGLE HOLE
3	5304524607 Frigidaire Clamp
4	811978901 Frigidaire Refrigerator Grommet
5#	5304523061 Frigidaire Refrigerator Control Assembly
5*	SCREW
6	811949503 Frigidaire Screw
7#	5304523062 Frigidaire Refrigerator Compressor
8#	5304526794 Frigidaire Tube
9#	5304529531 Frigidaire Refrigerator Valve
10	FLAP BRACKET, COMPRESSOR BASE
11	COVER, FLEX DRIVE, SIDE, COMPRESSOR
12	Clamp,flex drive ,cable
13	5304523032 Frigidaire Refrigerator Screw
14#	5304523065 Frigidaire Refrigerator Tubing
16	5304519156 Frigidaire Refrigerator Drain Tube
17*	GROMMET, DYCO TUBE
17#	CONDENSER ASSY DYNAMIC
22	5304529527 Frigidaire Refrigerator Pan
22*	FOAM INSULATION, DYCO TUBE
23#	5304525730 Frigidaire Refrigerator Fan Assembly
24	808199001 Frigidaire Screw
25	5304529530 Frigidaire Refrigerator Condenser Shroud
27	811998302 Frigidaire Refrigerator Shaft
28	811666601 Frigidaire Refrigerator Roller
29#	5304523066 Frigidaire Refrigerator Power Cord
31	DRAIN TROUGH
32#	5304529535 Frigidaire Refrigerator Evaporator
33#	5303918851 Frigidaire Refrigerator Thermostat Kit
34	811980406 Frigidaire Clamp
35#	5304534878 Frigidaire Heater
36#	COVER ASSEMBLY, EVAPORATOR, FREEZER, W/FAN ASSY
36A#	5304536608 Frigidaire Motor
36B	Cover, evaporator, freezer, radial fan
37	DUCT, AIR RETURN
44*	5304523687 Frigidaire Sticker
44	5304524004 Frigidaire Refrigerator Cover
47#	5303918775 Frigidaire Refrigerator Thermistor
51B	COVER, WINDOW, FREEZER
