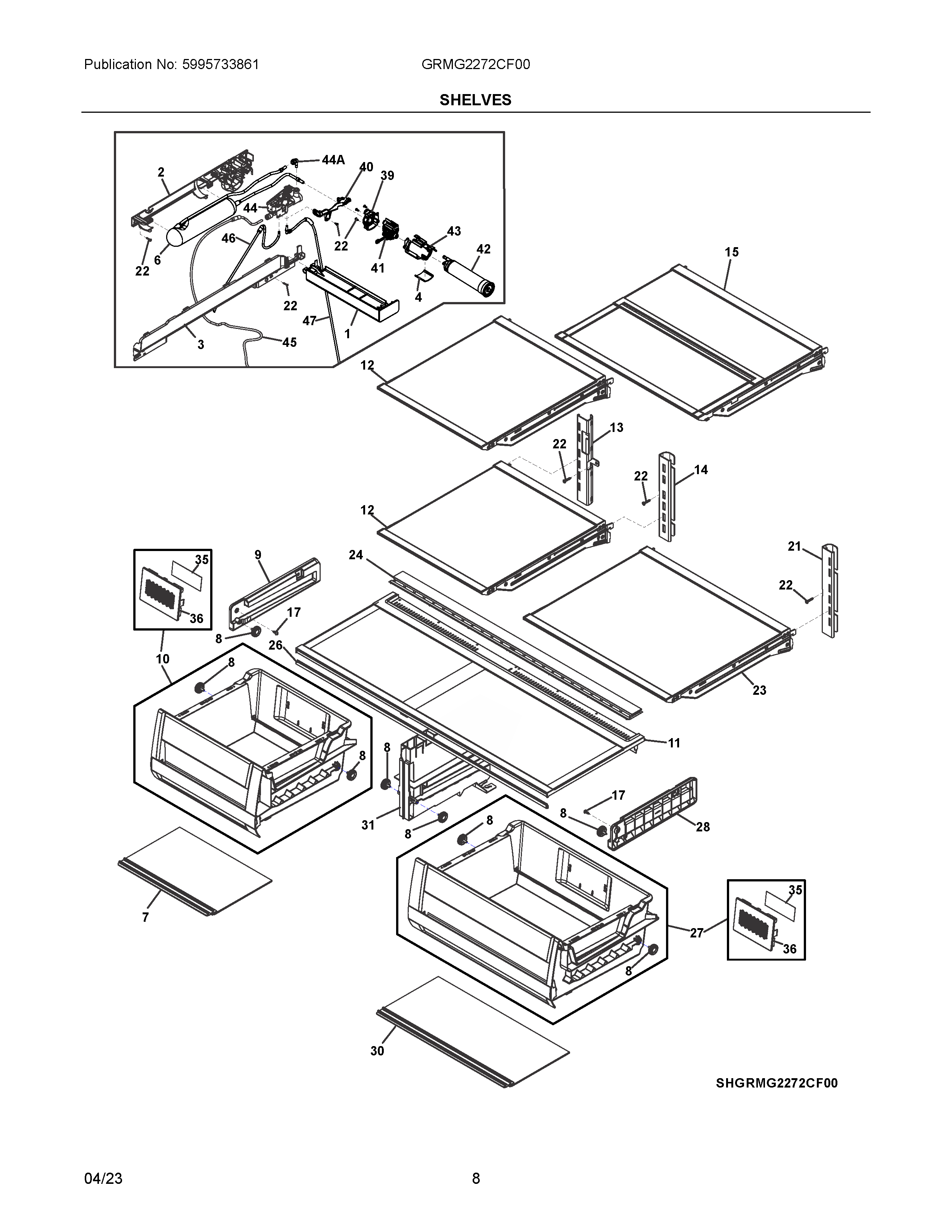

GRMG2272CF00 05 – SHELVES

Products

Position	Product
NI	242200102 Frigidaire Refrigerator Clip
NIA	5304529553 Frigidaire Seal
NIA	SCREW
1	5304529551 Frigidaire Cover
2	5304529601 Frigidaire Support Bracket
3	COVER, WATER TANK
4	5304529552 Frigidaire Seal
6	5304523037 Frigidaire Refrigerator Tank
7	5304519123 Frigidaire Refrigerator Cover
8	5304519124 Frigidaire Roller
9	5304519125 Frigidaire Refrigerator Rail
10	5304529585 Frigidaire Refrigerator Drawer Assembly
11	5304531895 Frigidaire Cover Assembly
12	5304523041 Frigidaire Shelf Assembly
13	Bracket, cantilever shlf, LH
14	Bracket, cantilever shlf, center
15	5304523044 Frigidaire Shelf Assembly
17	Screw, hilo phil pn, .5", white
21	5304519136 Frigidaire Bracket Assembly
22	811949503 Frigidaire Screw
23	SHELF ASSEMBLY, CANTILEVER, GLASS, RH
24	5304523048 Frigidaire Housing Assembly
26	5304519140 Frigidaire Refrigerator Gasket
27	5304537361 Frigidaire Drawer Assembly
28	Rail, crisper, RH side
30	5304519143 Frigidaire Refrigerator Cover
31	5304532661 Frigidaire Dishwasher Divider
35	FRIGIDAIRE PA PK-2 REFILL
36	5304529586 Frigidaire Refrigerator Cover
39	COVER
40	5304529545 Frigidaire Guide
41	5304529546 Frigidaire Refrigerator Manifold
42	FPPWFU02 Refrigerator PurePour Connect PWF-2 Water Filter
43	5304529547 Frigidaire Refrigerator Cover
44A	5304523053 Frigidaire Refrigerator Connector
44	5304529602 Frigidaire Water Valve
45	5304529603 Frigidaire Tube
46	5304523685 Frigidaire Refrigerator Tubing
47	5304529549 Frigidaire Refrigerator Tube
