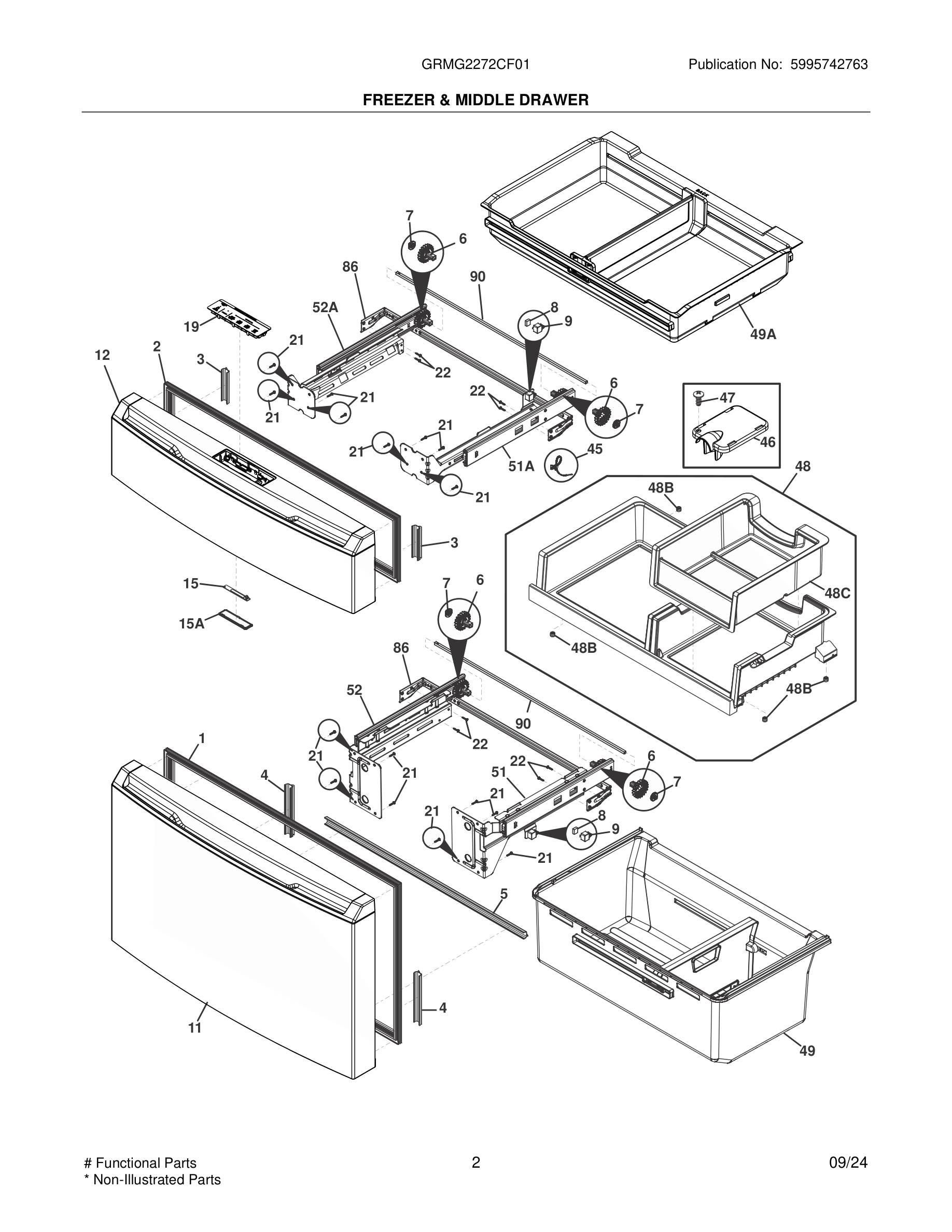

GRMG2272CF01 03 – FREEZER & MIDDLE DRAWER

Products

Position	Product
1	5304519037 Frigidaire Refrigerator Gasket
2	5304519038 Frigidaire Refrigerator Gasket
3	5304519041 Frigidaire Refrigerator Gasket
6	5304524001 Frigidaire Refrigerator Gear
7	5304519043 Frigidaire Refrigerator Bearing
8	5304519044 Frigidaire Magnet
9*	5304519084 Frigidaire Screw
9	SUPPORT
11	DOOR ASSEMBLY, OUTER, STAINLESS, FREEZER
12#	5304536613 Frigidaire Door Assembly
15A	5304526839 Frigidaire Lens Assembly
15#	5304523011 Frigidaire Refrigerator Light Board
19#	5304529567 Frigidaire Refrigerator Display Assembly
21	811949401 Frigidaire Refrigerator Screw
22	5304519053 Frigidaire Refrigerator Screw
45	539151026 Frigidaire Clip
46	5304529565 Frigidaire Cover
47	241953902 Frigidaire Refrigerator Screw
48C	Container, drawer ice, freezer
48	5304523088 Frigidaire Drawer Assembly
48B*	811949503 Frigidaire Screw
48B	Cushion,rubber ,freezer drw
49	5304519057 Frigidaire Refrigerator Assembly-Basket
49A	5304529588 Frigidaire Refrigerator Basket Assembly
51	5304519059 Frigidaire Refrigerator Slider
51A	5304529564 Frigidaire Slider
52	5304519061 Frigidaire Refrigerator Slider
52A	5304529563 Frigidaire Slider
86	5304519064 Frigidaire Refrigerator Bracket
90*	SCREW, PHIL PN HD, M4 X 8
90	5304524002 Frigidaire Shaft
