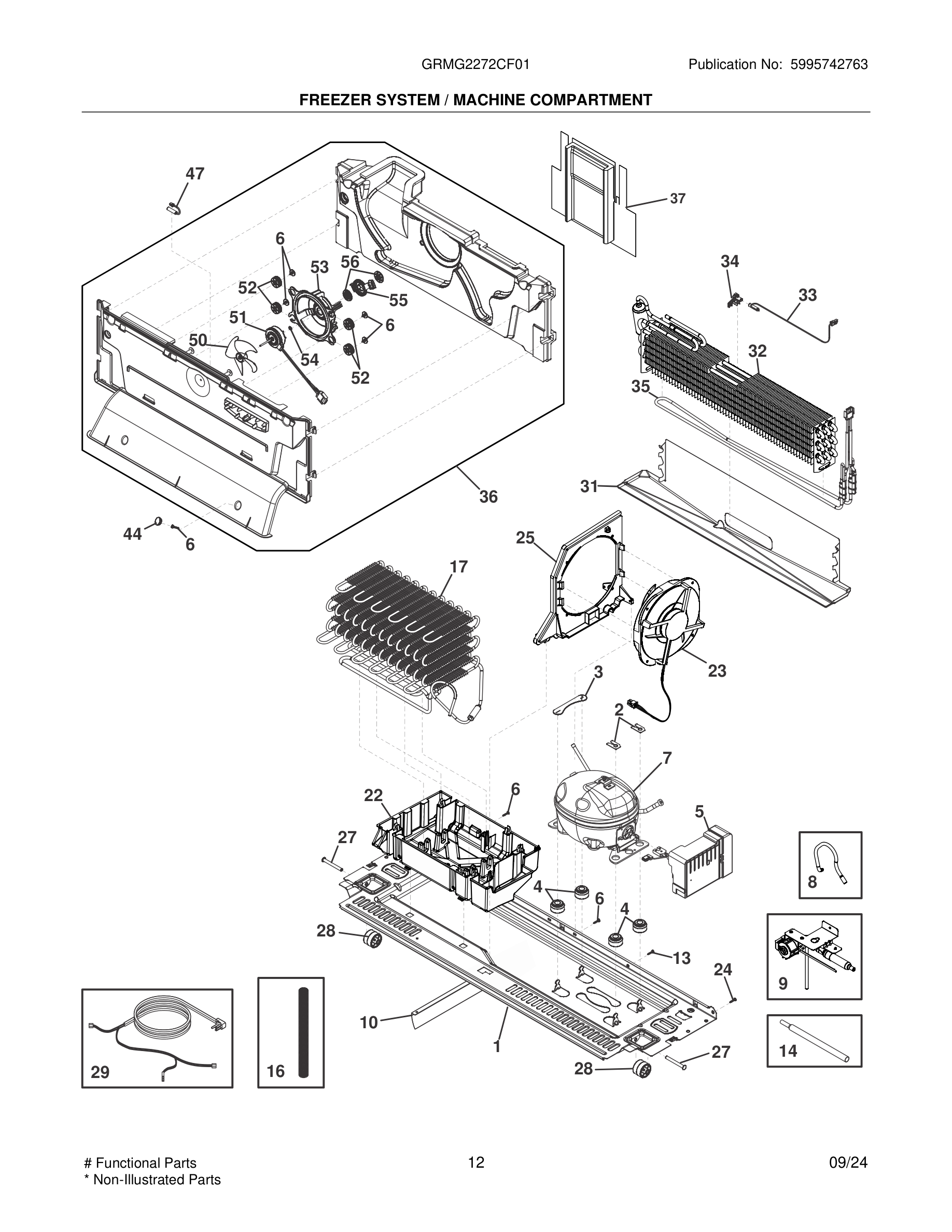

GRMG2272CF01 13 – FREEZER SYSTEM / MACHINE COMPARTMENT

Products

PositionProduct
*811950601 Frigidaire Refrigerator Seal
1BASE, COMPRESSOR ASSY
2CLAMP, COMPRESSOR, SINGLE HOLE
35304524607 Frigidaire Clamp
4811978901 Frigidaire Refrigerator Grommet
5#5304533506 Frigidaire Inverter
6811949503 Frigidaire Screw
7#5304533509 Frigidaire Compressor
8#5304519154 Frigidaire Refrigerator Tube
9#5304529531 Frigidaire Refrigerator Valve
10FLAP BRACKET, COMPRESSOR BASE
135304523032 Frigidaire Refrigerator Screw
14#5304523065 Frigidaire Refrigerator Tubing
165304519156 Frigidaire Refrigerator Drain Tube
17#CONDENSER ASSY DYNAMIC
17*GROMMET, DYCO TUBE
225304529527 Frigidaire Refrigerator Pan
22*FOAM INSULATION, DYCO TUBE
23#5304525730 Frigidaire Refrigerator Fan Assembly
24808199001 Frigidaire Screw
255304529530 Frigidaire Refrigerator Condenser Shroud
27811998302 Frigidaire Refrigerator Shaft
28811666601 Frigidaire Refrigerator Roller
29#5304523066 Frigidaire Refrigerator Power Cord
31DRAIN TROUGH
32#5304529535 Frigidaire Refrigerator Evaporator
33#5303918851 Frigidaire Refrigerator Thermostat Kit
34811980406 Frigidaire Clamp
35#5304534878 Frigidaire Heater
36#5304523067 Frigidaire Refrigerator Cover
37DUCT, AIR RETURN
445304524004 Frigidaire Refrigerator Cover
44*5304523687 Frigidaire Sticker
47#5303918775 Frigidaire Refrigerator Thermistor
50BLADE, EVAPORATOR FAN
51#809069207 Frigidaire Refrigerator Motor
52GROMMET, FAN SHROUND, FREEZER
52*WCI 5304523068
535304519175 Frigidaire Shroud
54WASHER, SLINGER, NYLON
555304519177 Frigidaire Refrigerator Clip
565304519178 Frigidaire Refrigerator Grommet
