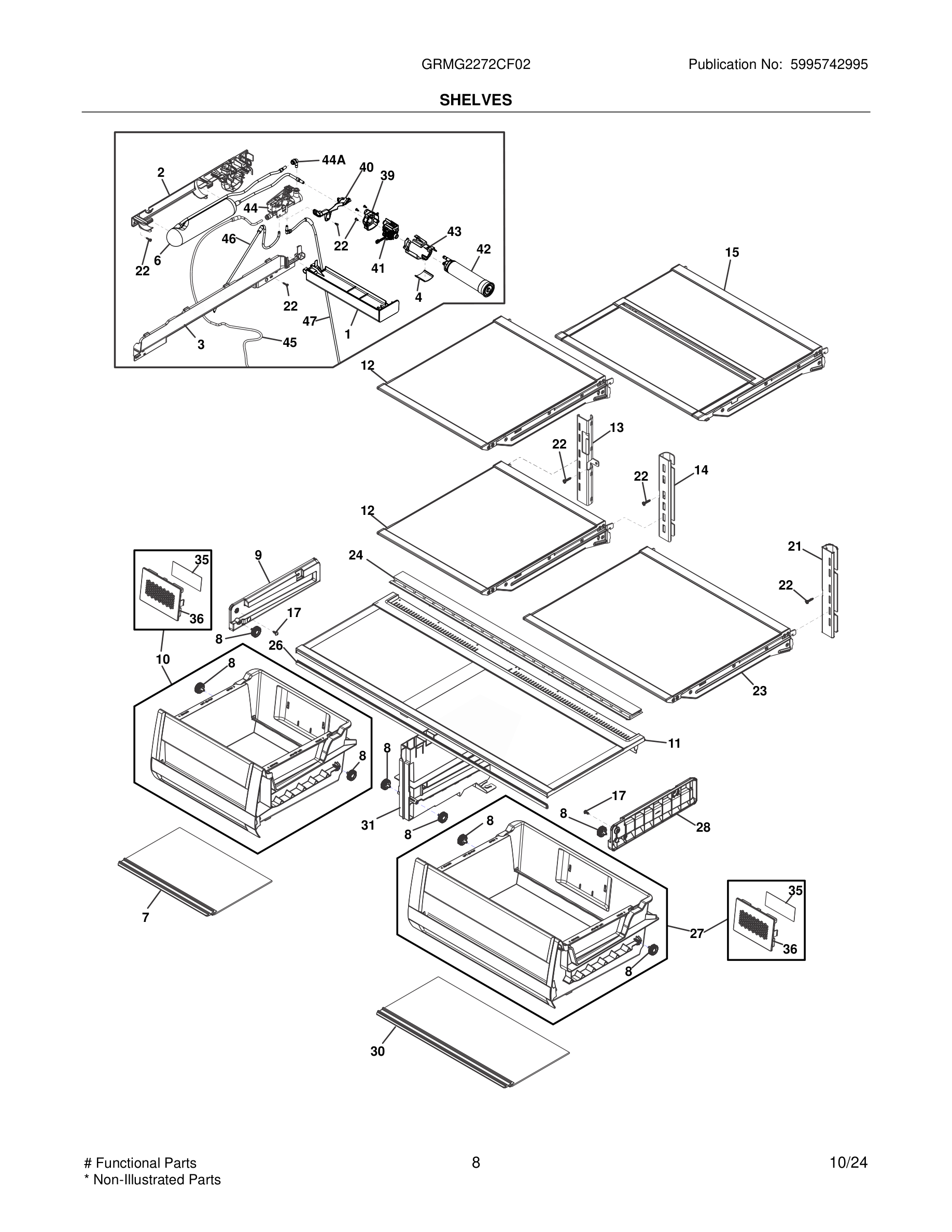

GRMG2272CF02 09 – SHELVES

GRMG2272CF02 09 – SHELVES

Written by

in

GRMG2272CF02 09 – SHELVES

Products

PositionProduct
*242200102 Frigidaire Refrigerator Clip
15304529551 Frigidaire Cover
25304529601 Frigidaire Support Bracket
3COVER, WATER TANK
45304529552 Frigidaire Seal
6#5304523037 Frigidaire Refrigerator Tank
75304519123 Frigidaire Refrigerator Cover
85304519124 Frigidaire Roller
8*SCREW
95304519125 Frigidaire Refrigerator Rail
105304529585 Frigidaire Refrigerator Drawer Assembly
115304531895 Frigidaire Cover Assembly
125304523041 Frigidaire Shelf Assembly
13Bracket, cantilever shlf, LH
14Bracket, cantilever shlf, center
155304523044 Frigidaire Shelf Assembly
17Screw, hilo phil pn, .5", white
215304519136 Frigidaire Bracket Assembly
22811949503 Frigidaire Screw
23SHELF ASSEMBLY, CANTILEVER, GLASS, RH
245304523048 Frigidaire Housing Assembly
265304519140 Frigidaire Refrigerator Gasket
275304537361 Frigidaire Drawer Assembly
28Rail, crisper, RH side
305304519143 Frigidaire Refrigerator Cover
315304532661 Frigidaire Dishwasher Divider
35FRIGIDAIRE PA PK-2 REFILL
365304529586 Frigidaire Refrigerator Cover
39COVER
405304529545 Frigidaire Guide
41#5304529546 Frigidaire Refrigerator Manifold
42FPPWFU02 Refrigerator PurePour Connect PWF-2 Water Filter
435304529547 Frigidaire Refrigerator Cover
44A5304523053 Frigidaire Refrigerator Connector
44#5304529602 Frigidaire Water Valve
45#5304529603 Frigidaire Tube
46#5304523685 Frigidaire Refrigerator Tubing
47#5304529549 Frigidaire Refrigerator Tube
47*5304529553 Frigidaire Seal
