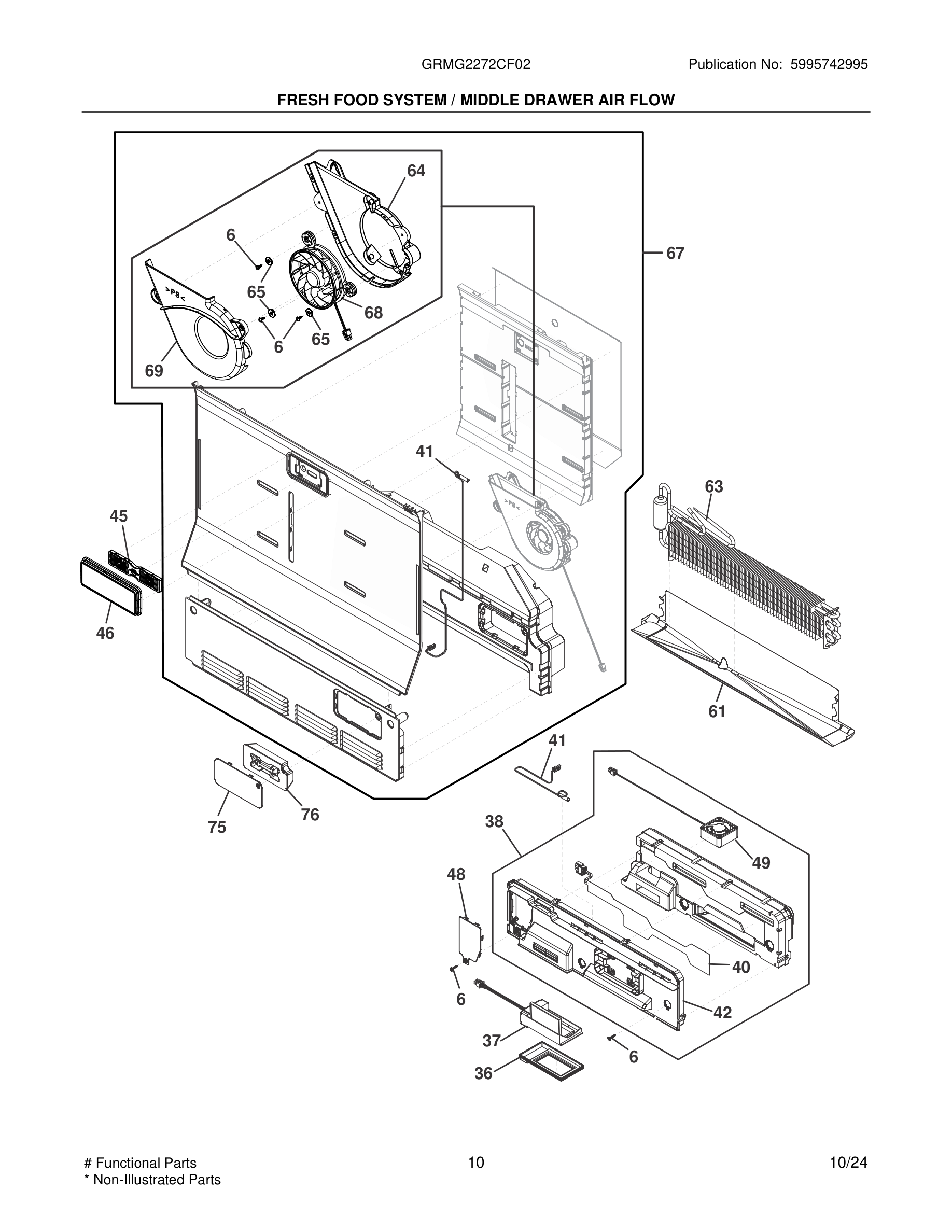

GRMG2272CF02 11 – FRESH FOOD SYSTEM / MIDDLE DRAWER AIR FLOW

GRMG2272CF02 11 – FRESH FOOD SYSTEM / MIDDLE DRAWER AIR FLOW

Written by

in

GRMG2272CF02 11 – FRESH FOOD SYSTEM / MIDDLE DRAWER AIR FLOW

Products

PositionProduct
*811950601 Frigidaire Refrigerator Seal
6811949503 Frigidaire Screw
365304523686 Frigidaire Seal
37#5304519166 Frigidaire Refrigerator Baffle Assembly
38#5304519167 Frigidaire Refrigerator Assembly Cover
40#HEATER ASSEMBLY, MIDDLE DRAWER
41#5303918775 Frigidaire Refrigerator Thermistor
425304519170 Frigidaire Cover
45FRGPAAF2 Frigidaire PureAir® Replacement Refrigerator Air Filter
465304529542 Frigidaire Refrigerator Cover
48COVER, WINDOW, MIDDLE DRAWER
49#5304519173 Frigidaire Refrigerator Fan Assembly
615304519180 Frigidaire Drain Trough
63#5304529599 Frigidaire Evaporator
64PLATE, FAN MOUNTING, FRESH FOOD
655304519183 Frigidaire Washer
67#5304529600 Frigidaire Assembly Cover
68#5304536608 Frigidaire Motor
695304526812 Frigidaire Housing
755304519189 Frigidaire Cover
765304522062 Frigidaire Insulation Assembly
