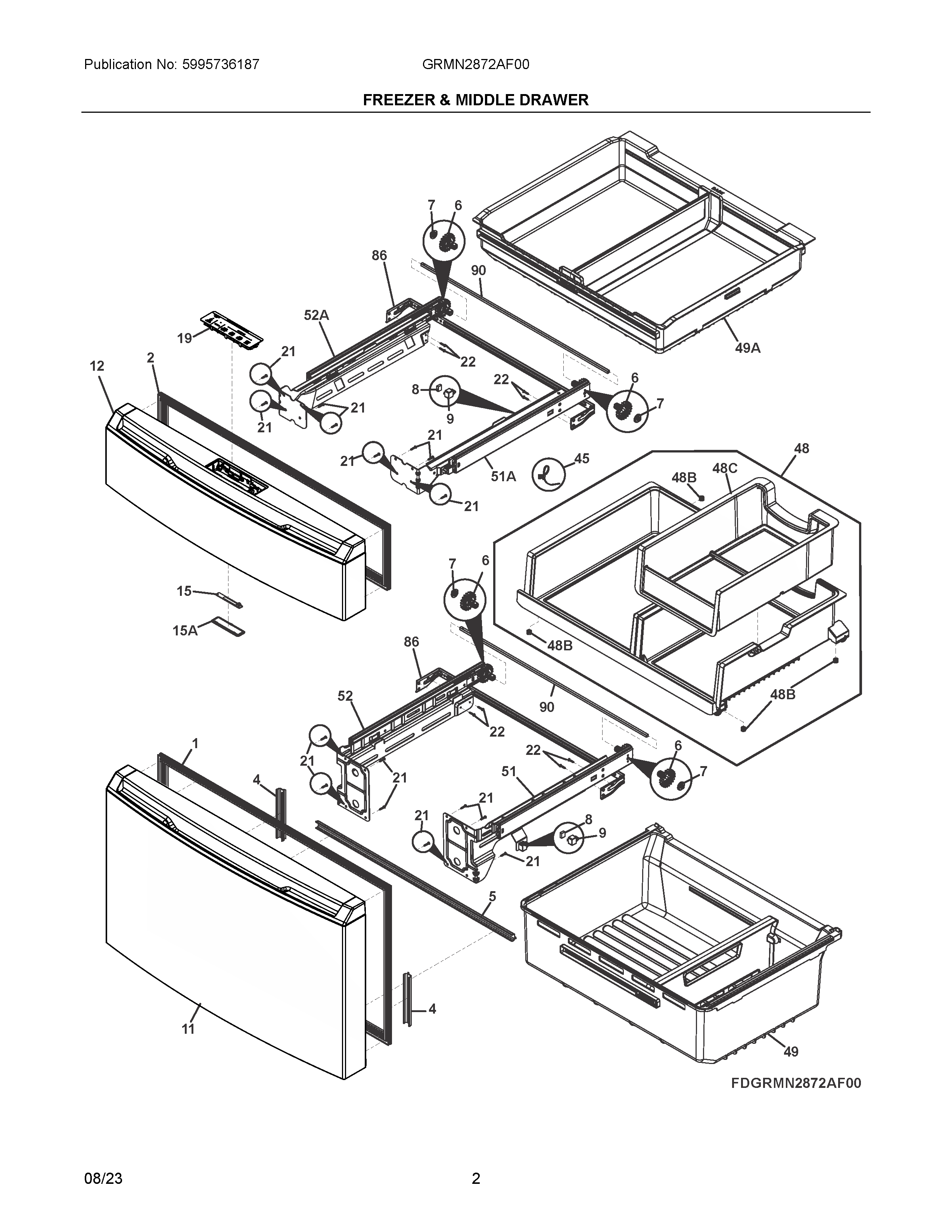

GRMN2872AF00 02 – FREEZER & MIDDLE DRAWER

GRMN2872AF00 02 – FREEZER & MIDDLE DRAWER

Written by

in

GRMN2872AF00 02 – FREEZER & MIDDLE DRAWER

Products

PositionProduct
NI241953902 Frigidaire Refrigerator Screw
NIBA811949503 Frigidaire Screw
NIASCREW, PHIL PN HD, M4 X 8
NIA5304519084 Frigidaire Screw
15304519037 Frigidaire Refrigerator Gasket
25304519038 Frigidaire Refrigerator Gasket
45304519041 Frigidaire Refrigerator Gasket
65304524001 Frigidaire Refrigerator Gear
75304519043 Frigidaire Refrigerator Bearing
85304519044 Frigidaire Magnet
9SUPPORT
11DOOR ASSEMBLY, OUTER, STAINLESS, FREEZER
125304536613 Frigidaire Door Assembly
15A5304526839 Frigidaire Lens Assembly
155304523011 Frigidaire Refrigerator Light Board
195304534898 Frigidaire Display Assembly
21811949401 Frigidaire Refrigerator Screw
225304519053 Frigidaire Refrigerator Screw
45539151026 Frigidaire Clip
485304534917 Frigidaire Drawer Assembly
48BCushion,rubber ,freezer drw
48C5304535271 Frigidaire Container
49A5304534910 Frigidaire Assembly-Basket
49BASKET ASSEMBLY, FREEZER DRAWER, W/DIVIDER
51ASLIDER, ASSEMBLY, RH MIDDLE DRW
515304534895 Frigidaire Slider Assembly
525304534894 Frigidaire Slider
52ASLIDER, ASSEMBLY, LH MIDDLE DRW
865304519064 Frigidaire Refrigerator Bracket
905304524002 Frigidaire Shaft
