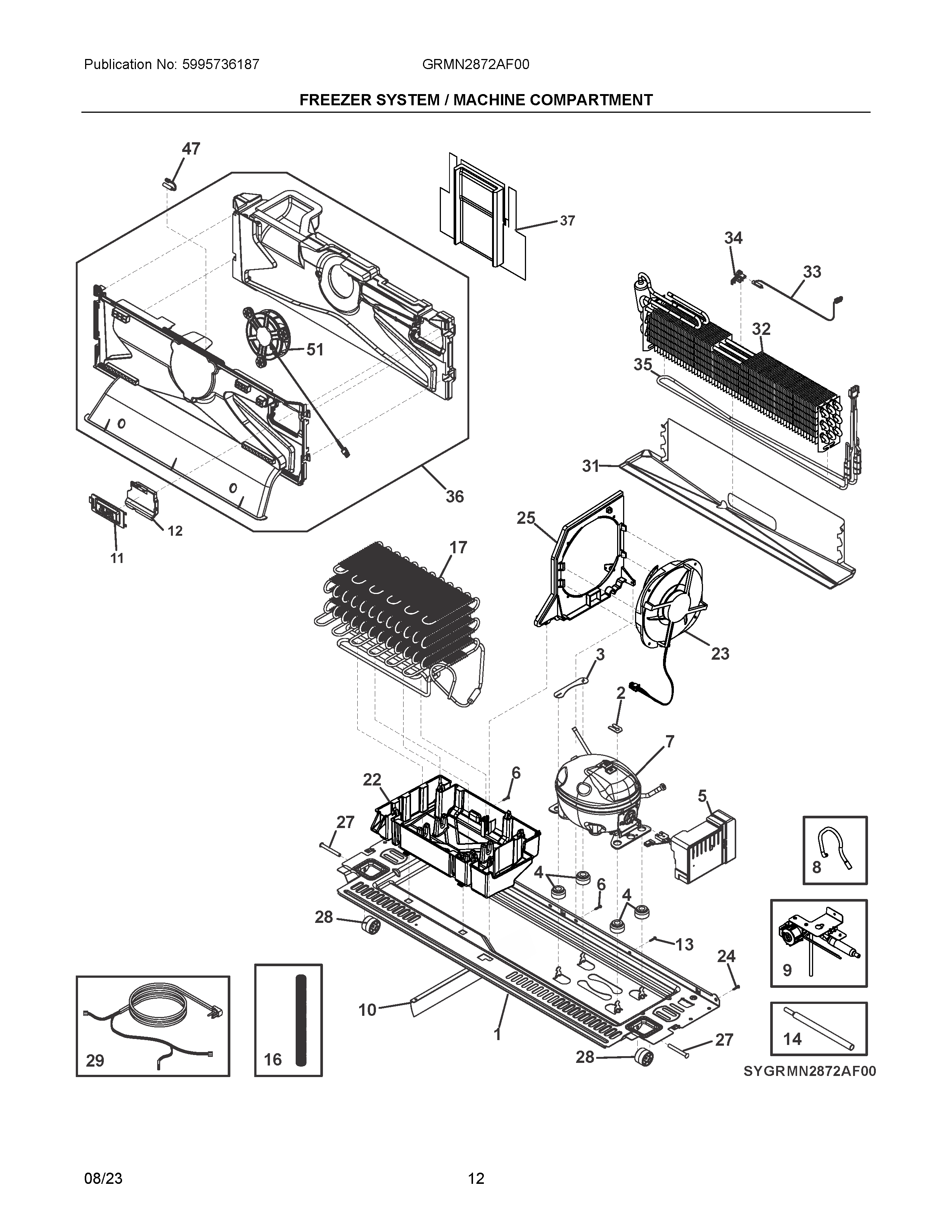

GRMN2872AF00 07 – FREEZER SYSTEM / MACHINE COMPARTMENT

Products

Position	Product
NIA	GROMMET, DYCO TUBE
NI	5304526847 Frigidaire Screw Assembly
NIA	FOAM INSULATION, DYCO TUBE
NI	811950601 Frigidaire Refrigerator Seal
1	BASE, COMPRESSOR ASSY
2	CLAMP, COMPRESSOR, SINGLE HOLE
3	Clamp,compressor ,2 hole
4	811978901 Frigidaire Refrigerator Grommet
5	5304533506 Frigidaire Inverter
6	811949503 Frigidaire Screw
7	5304533509 Frigidaire Compressor
8	5304519154 Frigidaire Refrigerator Tube
9	5304529531 Frigidaire Refrigerator Valve
10	FLAP BRACKET, COMPRESSOR BASE
11	COVER, ICE MAKER, FREEZER, CONNECTION
12	COVER, WINDOW, FREEZER
13	5304523032 Frigidaire Refrigerator Screw
14	5304523065 Frigidaire Refrigerator Tubing
16	DRAIN TUBE
17	CONDENSER ASSY DYNAMIC
22	5304529527 Frigidaire Refrigerator Pan
23	5304525730 Frigidaire Refrigerator Fan Assembly
24	808199001 Frigidaire Screw
25	5304529530 Frigidaire Refrigerator Condenser Shroud
27	811998302 Frigidaire Refrigerator Shaft
28	811666601 Frigidaire Refrigerator Roller
29	5304523066 Frigidaire Refrigerator Power Cord
31	DRAIN TROUGH
32	5304529535 Frigidaire Refrigerator Evaporator
33	5303918851 Frigidaire Refrigerator Thermostat Kit
34	811980406 Frigidaire Clamp
35	5304534878 Frigidaire Heater
36	COVER ASSEMBLY, EVAPORATOR, FREEZER, W/FAN ASSY
37	DUCT, AIR RETURN
47	5303918775 Frigidaire Refrigerator Thermistor
51	5304536608 Frigidaire Motor
