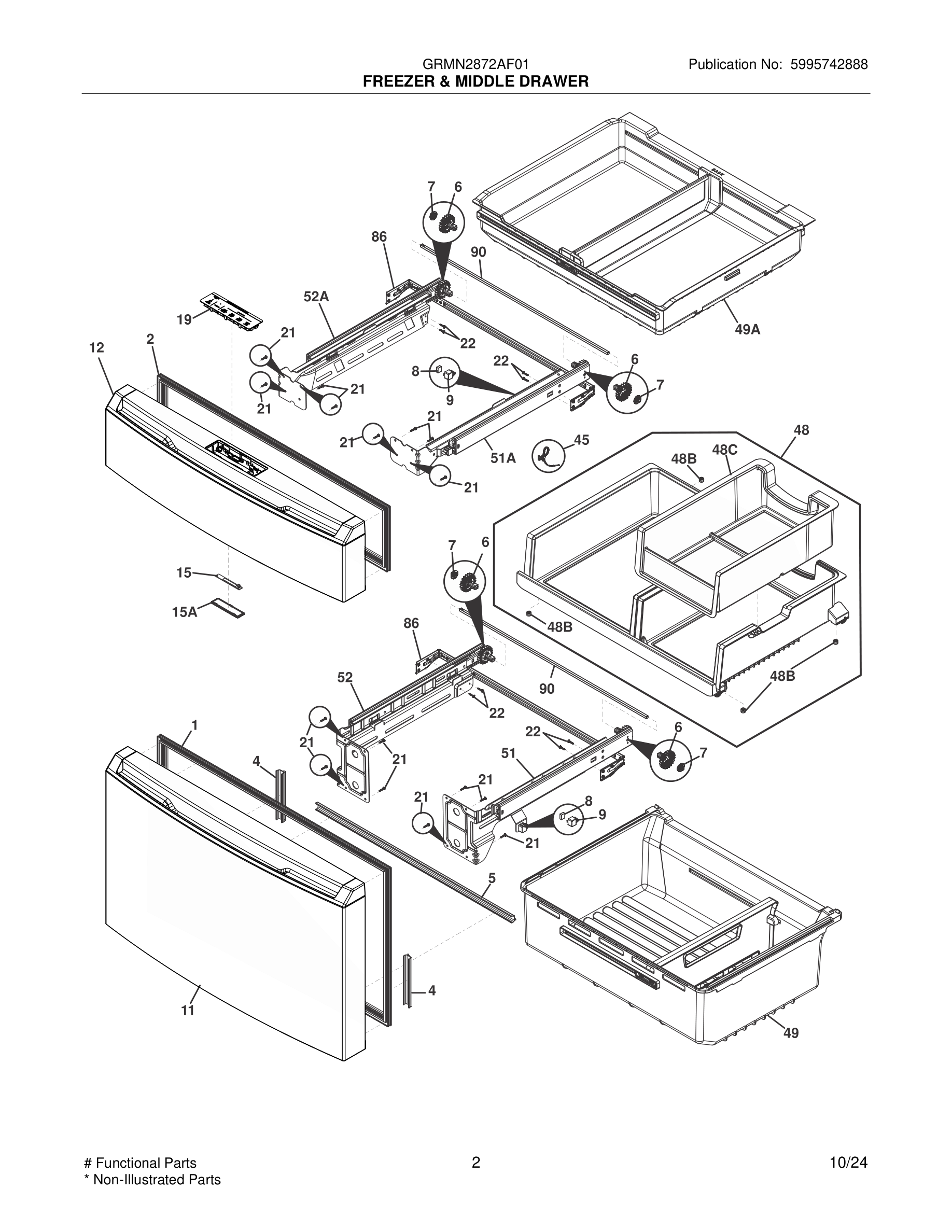

GRMN2872AF01 03 – FREEZER & MIDDLE DRAWERadmin2025-04-26T10:19:15+00:00GRMN2872AF01 03 – FREEZER & MIDDLE DRAWER
Products
| Position | Product |
|---|
| * | 241953902 Frigidaire Refrigerator Screw |
| 1 | 5304519037 Frigidaire Refrigerator Gasket |
| 2 | 5304519038 Frigidaire Refrigerator Gasket |
| 4 | 5304519041 Frigidaire Refrigerator Gasket |
| 6 | 5304524001 Frigidaire Refrigerator Gear |
| 7 | 5304519043 Frigidaire Refrigerator Bearing |
| 8 | 5304519044 Frigidaire Magnet |
| 9 | SUPPORT |
| 9* | 5304519084 Frigidaire Screw |
| 11 | DOOR ASSEMBLY, OUTER, STAINLESS, FREEZER |
| 12# | 5304536613 Frigidaire Door Assembly |
| 15# | 5304523011 Frigidaire Refrigerator Light Board |
| 15A | 5304526839 Frigidaire Lens Assembly |
| 19# | 5304534898 Frigidaire Display Assembly |
| 21 | 811949401 Frigidaire Refrigerator Screw |
| 22 | 5304519053 Frigidaire Refrigerator Screw |
| 45 | 539151026 Frigidaire Clip |
| 48 | 5304534917 Frigidaire Drawer Assembly |
| 48B | Cushion,rubber ,freezer drw |
| 48C | 5304535271 Frigidaire Container |
| 48B* | 811949503 Frigidaire Screw |
| 49 | BASKET ASSEMBLY, FREEZER DRAWER, W/DIVIDER |
| 49A | 5304534910 Frigidaire Assembly-Basket |
| 51 | 5304534895 Frigidaire Slider Assembly |
| 51A | SLIDER, ASSEMBLY, RH MIDDLE DRW |
| 52 | 5304534894 Frigidaire Slider |
| 52A | SLIDER, ASSEMBLY, LH MIDDLE DRW |
| 86 | 5304519064 Frigidaire Refrigerator Bracket |
| 90* | SCREW, PHIL PN HD, M4 X 8 |
| 90 | 5304524002 Frigidaire Shaft |
