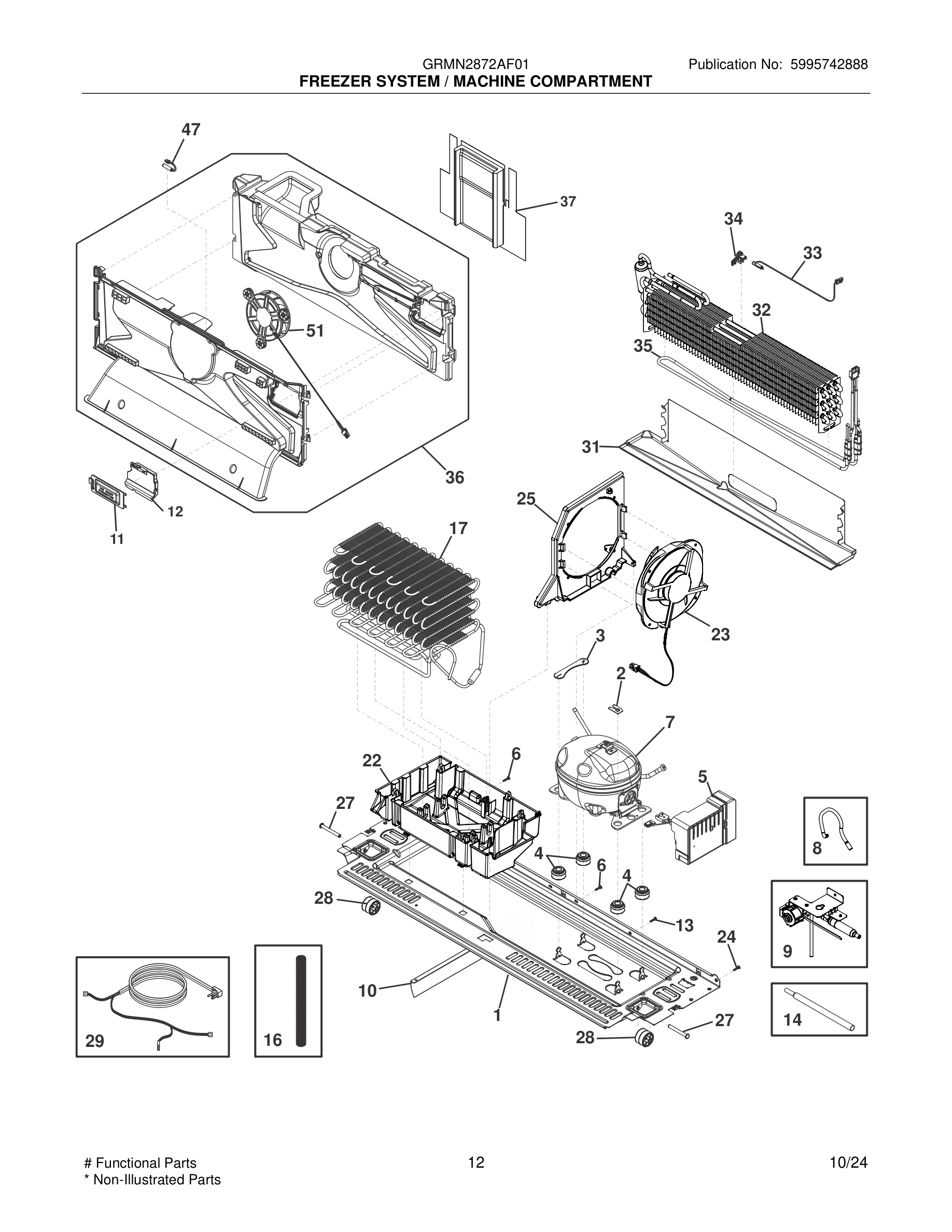

GRMN2872AF01 13 – FREEZER SYSTEM / MACHINE COMPARTMENT

Products

PositionProduct
*811950601 Frigidaire Refrigerator Seal
*5304526847 Frigidaire Screw Assembly
1BASE, COMPRESSOR ASSY
2CLAMP, COMPRESSOR, SINGLE HOLE
3Clamp,compressor ,2 hole
4811978901 Frigidaire Refrigerator Grommet
5#5304533506 Frigidaire Inverter
6811949503 Frigidaire Screw
7#5304533509 Frigidaire Compressor
8#5304519154 Frigidaire Refrigerator Tube
9#5304529531 Frigidaire Refrigerator Valve
10FLAP BRACKET, COMPRESSOR BASE
11COVER, ICE MAKER, FREEZER, CONNECTION
12COVER, WINDOW, FREEZER
135304523032 Frigidaire Refrigerator Screw
14#5304523065 Frigidaire Refrigerator Tubing
16DRAIN TUBE
17#CONDENSER ASSY DYNAMIC
17*GROMMET, DYCO TUBE
225304529527 Frigidaire Refrigerator Pan
22*FOAM INSULATION, DYCO TUBE
23#5304525730 Frigidaire Refrigerator Fan Assembly
24808199001 Frigidaire Screw
255304529530 Frigidaire Refrigerator Condenser Shroud
27811998302 Frigidaire Refrigerator Shaft
28811666601 Frigidaire Refrigerator Roller
29#5304523066 Frigidaire Refrigerator Power Cord
31DRAIN TROUGH
32#5304529535 Frigidaire Refrigerator Evaporator
33#5303918851 Frigidaire Refrigerator Thermostat Kit
34811980406 Frigidaire Clamp
35#5304534878 Frigidaire Heater
36#COVER ASSEMBLY, EVAPORATOR, FREEZER, W/FAN ASSY
37DUCT, AIR RETURN
47#5303918775 Frigidaire Refrigerator Thermistor
51#5304536608 Frigidaire Motor
