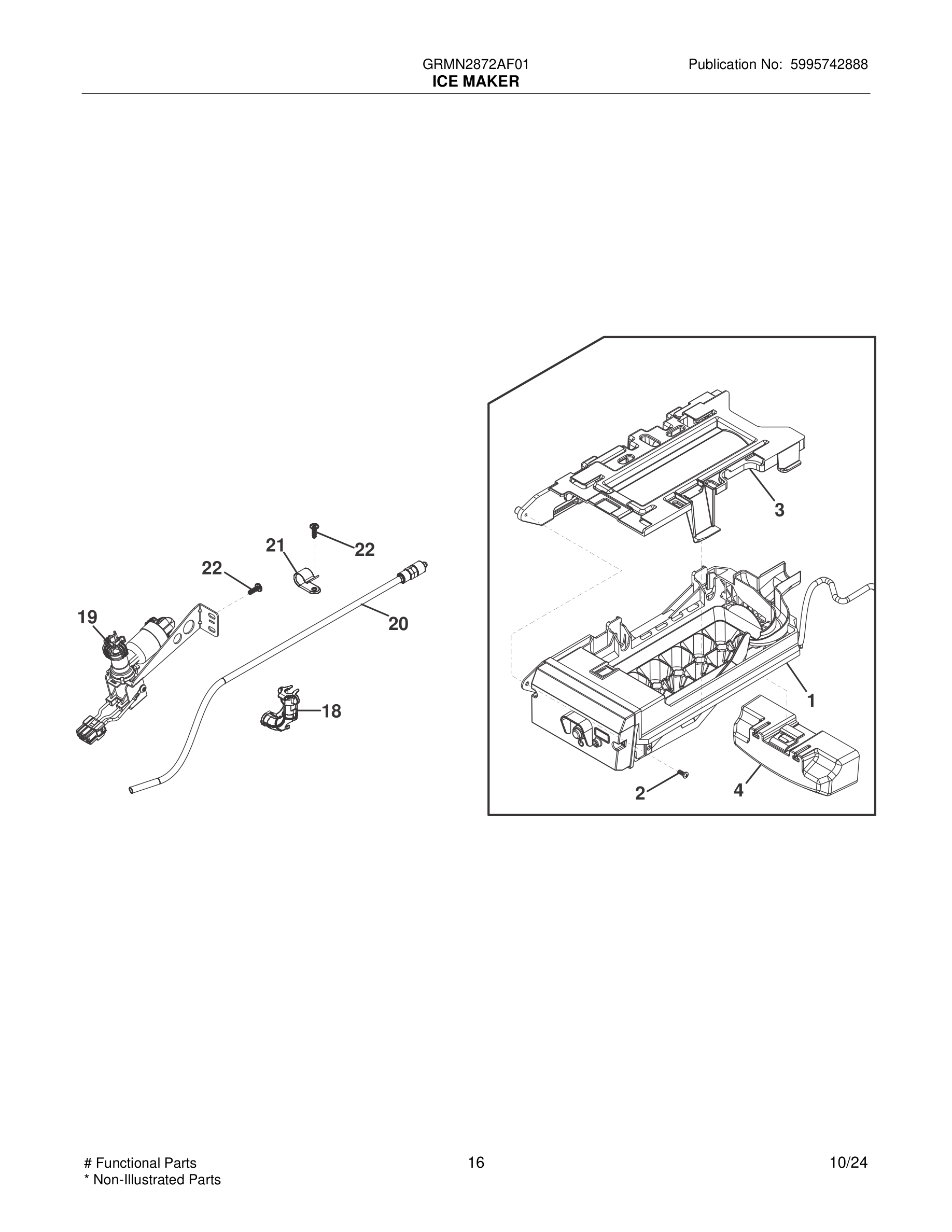

GRMN2872AF01 17 – ICE MAKER

Products

Position	Product
*	CLAMP, WATER TUBE
*	CABLE TIE, 2.5 X 120
1#	5304532556 Frigidaire Refrigerator Ice Maker Component
2	241641502 Frigidaire Refrigerator Screw
3	5304523075 Frigidaire Refrigerator Bracket
4	5304524340 Frigidaire Refrigerator Cover
18	242200102 Frigidaire Refrigerator Clip
19#	5304536607 Frigidaire Valve
20#	TUBE ASMY,INLET WATER,OVERMOLD
21	240396801 Frigidaire Refrigerator Tube Clamp
22	811949503 Frigidaire Screw
