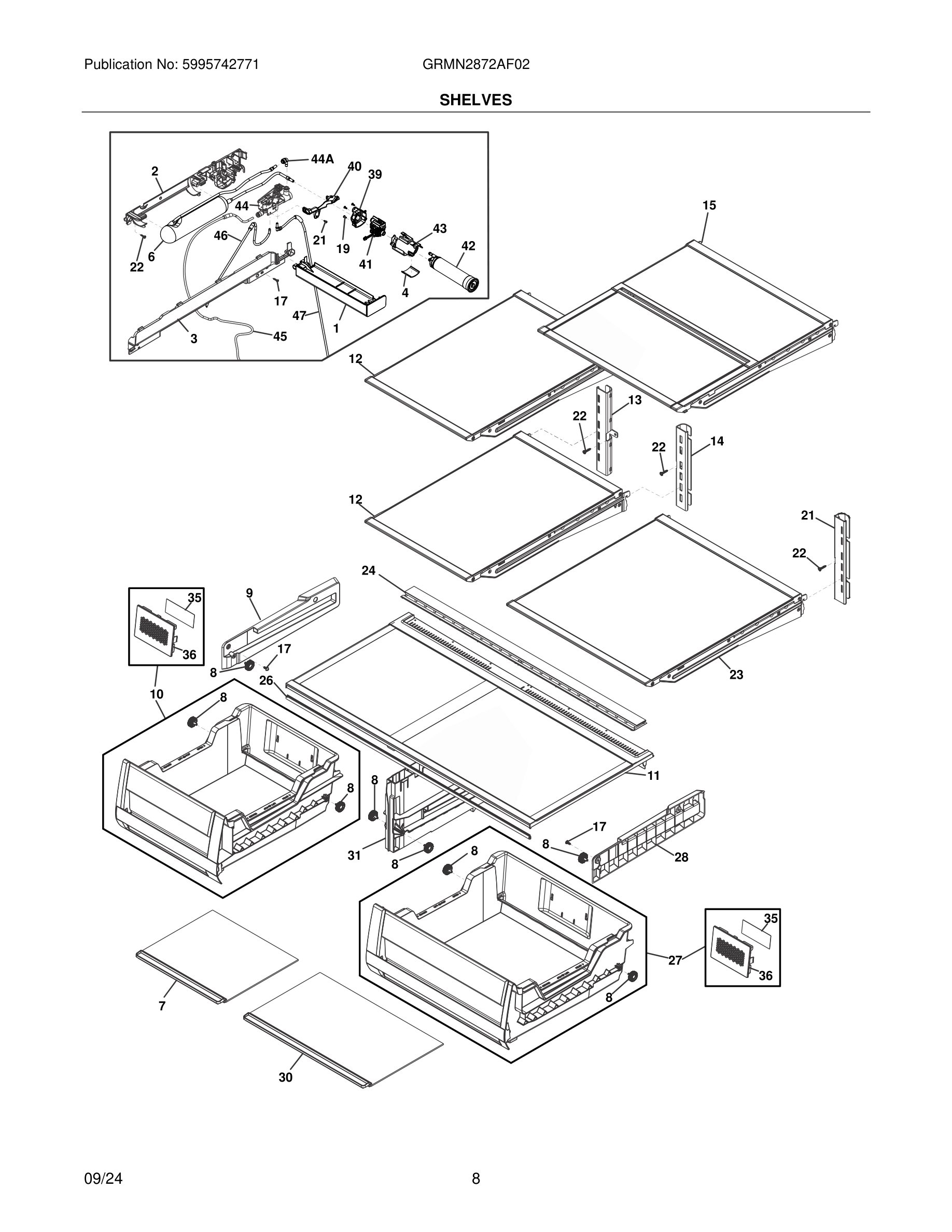

GRMN2872AF02 09 – SHELVES

GRMN2872AF02 09 – SHELVES

Written by

in

GRMN2872AF02 09 – SHELVES

Products

PositionProduct
*242200102 Frigidaire Refrigerator Clip
15304529551 Frigidaire Cover
25304529543 Frigidaire Support
3COVER, WATER TANK
45304529552 Frigidaire Seal
6#5304523037 Frigidaire Refrigerator Tank
7COVER, MULLION STORAGE, GLASS, LH
8*SCREW
85304519124 Frigidaire Roller
9RAIL, CRISPER, LH SIDE
10DRAWER ASSEMBLY, CRISPER, LH, W/ROLLERS
11COVER ASSEMBLY, CRISPER, W/GLASS
12SHELF ASSEMBLY, CANTILEVER, GLASS, LH
13BRACKET, CANTILEVER SHLF, LH
14Bracket, cantilever shlf, center
155304534902 Frigidaire Shelf Assembly
17SCREW, PHIL PAN HILO, .63 IN
19241953902 Frigidaire Refrigerator Screw
215304519136 Frigidaire Bracket Assembly
22811949503 Frigidaire Screw
23SHELF ASSEMBLY, CANTILEVER, GLASS, RH
245304523048 Frigidaire Housing Assembly
26GASKET, COVER, CRISPER
275304534903 Frigidaire Drawer Assembly
28RAIL, CRISPER, RH SIDE
305304534908 Frigidaire Cover Assembly
31DIVIDER, CRISPER COVER
35FRIGIDAIRE PA PK-2 REFILL
365304529586 Frigidaire Refrigerator Cover
39COVER
405304529545 Frigidaire Guide
41#5304529546 Frigidaire Refrigerator Manifold
42FPPWFU01 Frigidaire Refrigerator PurePour Water Filter
435304529547 Frigidaire Refrigerator Cover
44#5304529602 Frigidaire Water Valve
44A5304523053 Frigidaire Refrigerator Connector
45#5304534916 Frigidaire Tube Assembly
46#5304523685 Frigidaire Refrigerator Tubing
47*5304529553 Frigidaire Seal
47#5304529549 Frigidaire Refrigerator Tube
