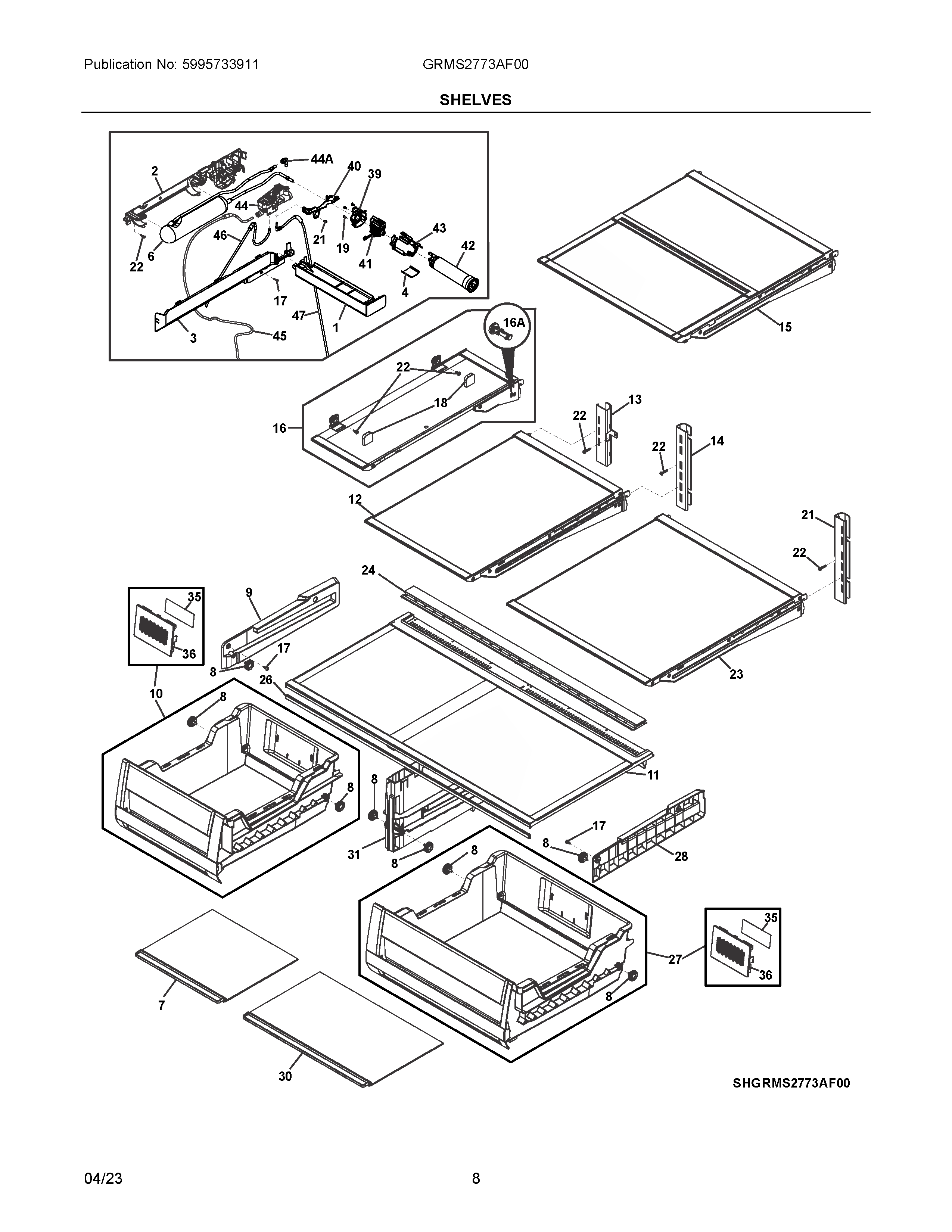

GRMS2773AF00 05 – SHELVES

Products

PositionProduct
NI242200102 Frigidaire Refrigerator Clip
NIA5304529553 Frigidaire Seal
NIASCREW
15304529551 Frigidaire Cover
25304529543 Frigidaire Support
3COVER, WATER TANK
45304529552 Frigidaire Seal
65304523037 Frigidaire Refrigerator Tank
7COVER, MULLION STORAGE, GLASS, LH
85304519124 Frigidaire Roller
9RAIL, CRISPER, LH SIDE
10DRAWER ASSEMBLY, CRISPER, LH, W/ROLLERS
11COVER ASSEMBLY, CRISPER, W/GLASS
12SHELF ASSEMBLY, CANTILEVER, GLASS, LH
13Bracket, cantilever shlf, LH
14Bracket, cantilever shlf, center
155304534902 Frigidaire Shelf Assembly
16A5304523682 Frigidaire Pin
16SHELF ASSEMBLY, FLIP UP, GLASS, LH
17SCREW, PHIL PAN HILO, .63 IN
185304519133 Frigidaire Refrigerator Cover Assembly
19241953902 Frigidaire Refrigerator Screw
215304519136 Frigidaire Bracket Assembly
22811949503 Frigidaire Screw
23SHELF ASSEMBLY, CANTILEVER, GLASS, RH
245304523048 Frigidaire Housing Assembly
26GASKET, COVER, CRISPER
275304534903 Frigidaire Drawer Assembly
28RAIL, CRISPER, RH SIDE
305304534908 Frigidaire Cover Assembly
31DIVIDER, CRISPER COVER
35FRIGIDAIRE PA PK-2 REFILL
365304529586 Frigidaire Refrigerator Cover
39COVER
405304529545 Frigidaire Guide
415304529546 Frigidaire Refrigerator Manifold
42FPPWFU02 Refrigerator PurePour Connect PWF-2 Water Filter
435304529547 Frigidaire Refrigerator Cover
44A5304523053 Frigidaire Refrigerator Connector
445304529544 Frigidaire Refrigerator Water Valve
455304534886 Frigidaire Tubing
465304527422 Frigidaire Refrigerator Tube
475304529549 Frigidaire Refrigerator Tube
