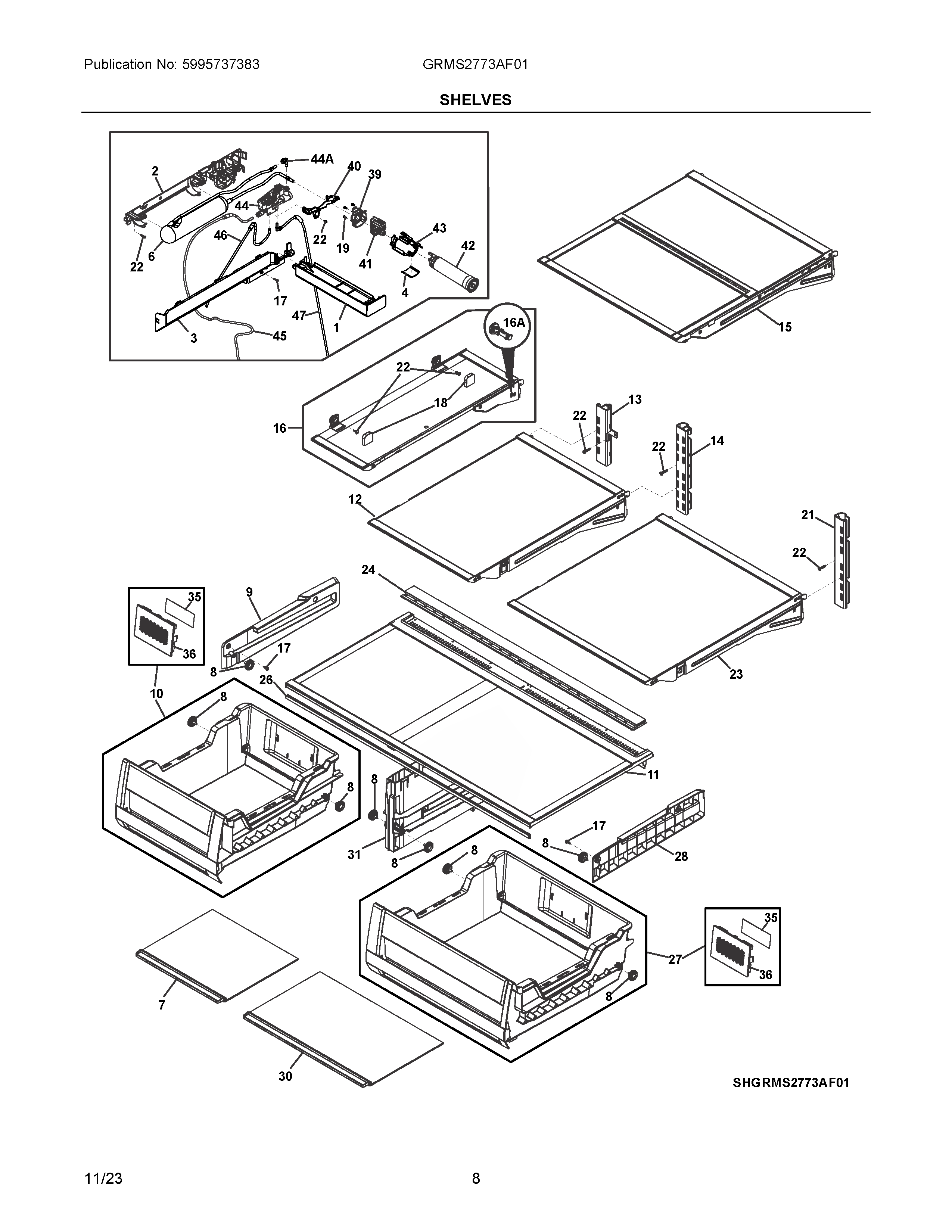

GRMS2773AF01 05 – SHELVES

GRMS2773AF01 05 – SHELVES

Written by

in

GRMS2773AF01 05 – SHELVES

Products

PositionProduct
NIA5304529553 Frigidaire Seal
NIA811949401 Frigidaire Refrigerator Screw
15304529551 Frigidaire Cover
25304529543 Frigidaire Support
3COVER, WATER TANK
45304529552 Frigidaire Seal
65304523037 Frigidaire Refrigerator Tank
7COVER, MULLION STORAGE, GLASS, LH
85304519124 Frigidaire Roller
9RAIL, CRISPER, LH SIDE
10DRAWER ASSEMBLY, CRISPER, LH, W/ROLLERS
11COVER ASSEMBLY, CRISPER, W/GLASS
125304536618 Frigidaire Assembly-Shelf
13BRACKET, CANTILEVER SHLF, LH
14BRACKET, CANTILEVER SHLF, CENTER
15SHELF ASSEMBLY, CANTILEVER, UPPER, SLIDE UNDER
16A5304523682 Frigidaire Pin
16SHELF ASSEMBLY, FLIP UP, LH, GLASS
17SCREW, PHIL PAN HILO, .63 IN
185304519133 Frigidaire Refrigerator Cover Assembly
19241953902 Frigidaire Refrigerator Screw
21BRACKET, CANTILEVER SHLF, RH
22811949503 Frigidaire Screw
23SHELF ASSEMBLY, CANTILEVER, GLASS, RH
24HOUSING ASSEMBLY, AUTO MEMBRANE, W/MEMBRANE
26GASKET, COVER, CRISPER
275304534903 Frigidaire Drawer Assembly
28RAIL, CRISPER, RH SIDE
305304534908 Frigidaire Cover Assembly
31DIVIDER, CRISPER COVER
35FRIGIDAIRE PA PK-2 REFILL
365304529586 Frigidaire Refrigerator Cover
39COVER
405304529545 Frigidaire Guide
415304524817 Frigidaire Water Filter Head Manifold
42FPPWFU01 Frigidaire Refrigerator PurePour Water Filter
435304529547 Frigidaire Refrigerator Cover
44A5304523053 Frigidaire Refrigerator Connector
445304529544 Frigidaire Refrigerator Water Valve
455304534886 Frigidaire Tubing
465304527422 Frigidaire Refrigerator Tube
475304529549 Frigidaire Refrigerator Tube
