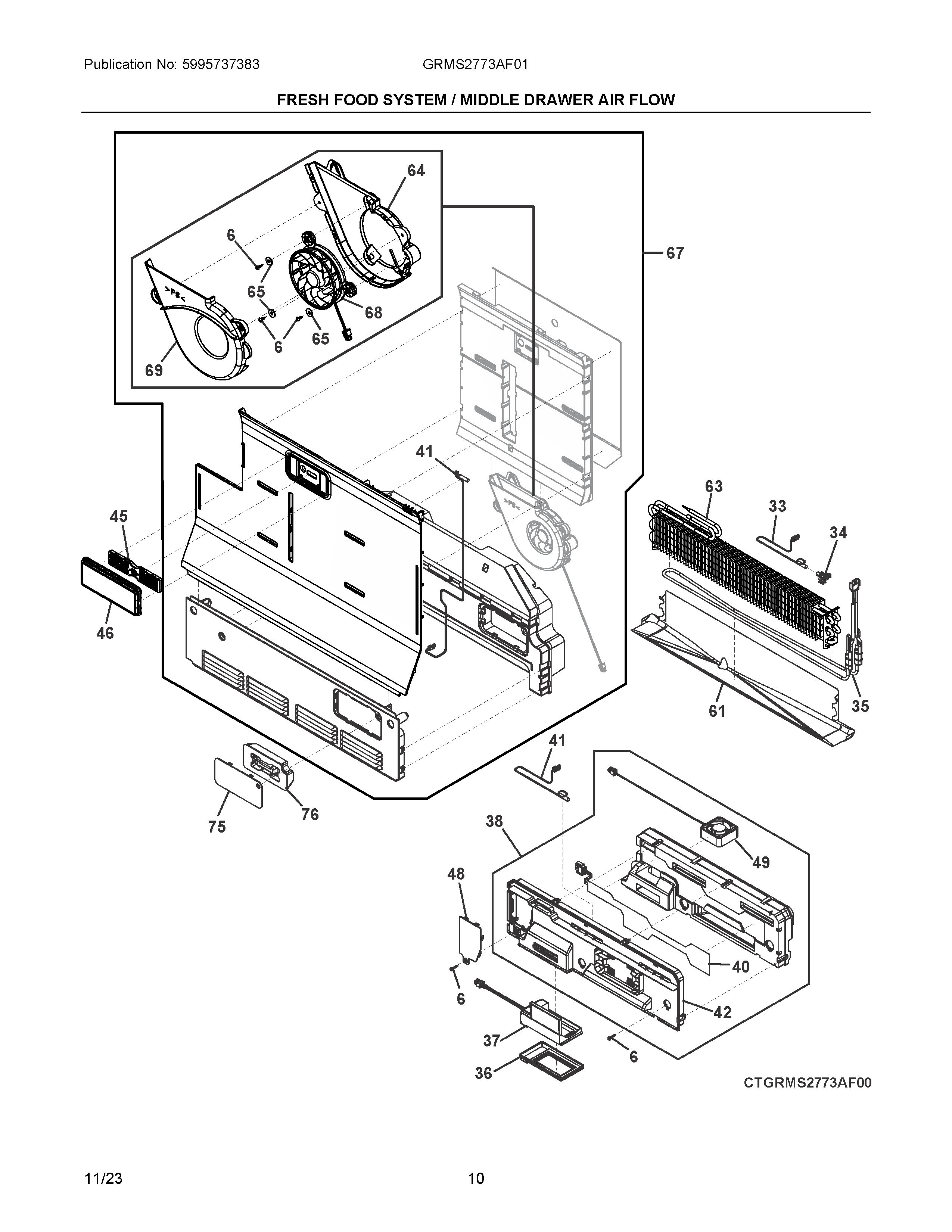

GRMS2773AF01 06 – FRESH FOOD SYSTEM / MIDDLE DRAWER AIR FLOW

GRMS2773AF01 06 – FRESH FOOD SYSTEM / MIDDLE DRAWER AIR FLOW

Written by

in

GRMS2773AF01 06 – FRESH FOOD SYSTEM / MIDDLE DRAWER AIR FLOW

Products

PositionProduct
NIScrew, hilo phil pn, .5", white
NISCREW, PHIL PAN HILO, .63 IN
NI811950601 Frigidaire Refrigerator Seal
6811949503 Frigidaire Screw
335303918851 Frigidaire Refrigerator Thermostat Kit
34811980406 Frigidaire Clamp
355304534878 Frigidaire Heater
365304523686 Frigidaire Seal
375304519166 Frigidaire Refrigerator Baffle Assembly
385304519167 Frigidaire Refrigerator Assembly Cover
40HEATER ASSEMBLY, MIDDLE DRAWER
415303918775 Frigidaire Refrigerator Thermistor
425304519170 Frigidaire Cover
45FRGPAAF2 Frigidaire PureAir® Replacement Refrigerator Air Filter
465304529542 Frigidaire Refrigerator Cover
48COVER, WINDOW, MIDDLE DRAWER
495304519173 Frigidaire Refrigerator Fan Assembly
615304519180 Frigidaire Drain Trough
635304526811 Frigidaire Refrigerator Evaporator
64PLATE, FAN MOUNTING, FRESH FOOD
655304519183 Frigidaire Washer
67COVER ASSEMBLY
685304536608 Frigidaire Motor
695304526812 Frigidaire Housing
755304519189 Frigidaire Cover
765304522062 Frigidaire Insulation Assembly
