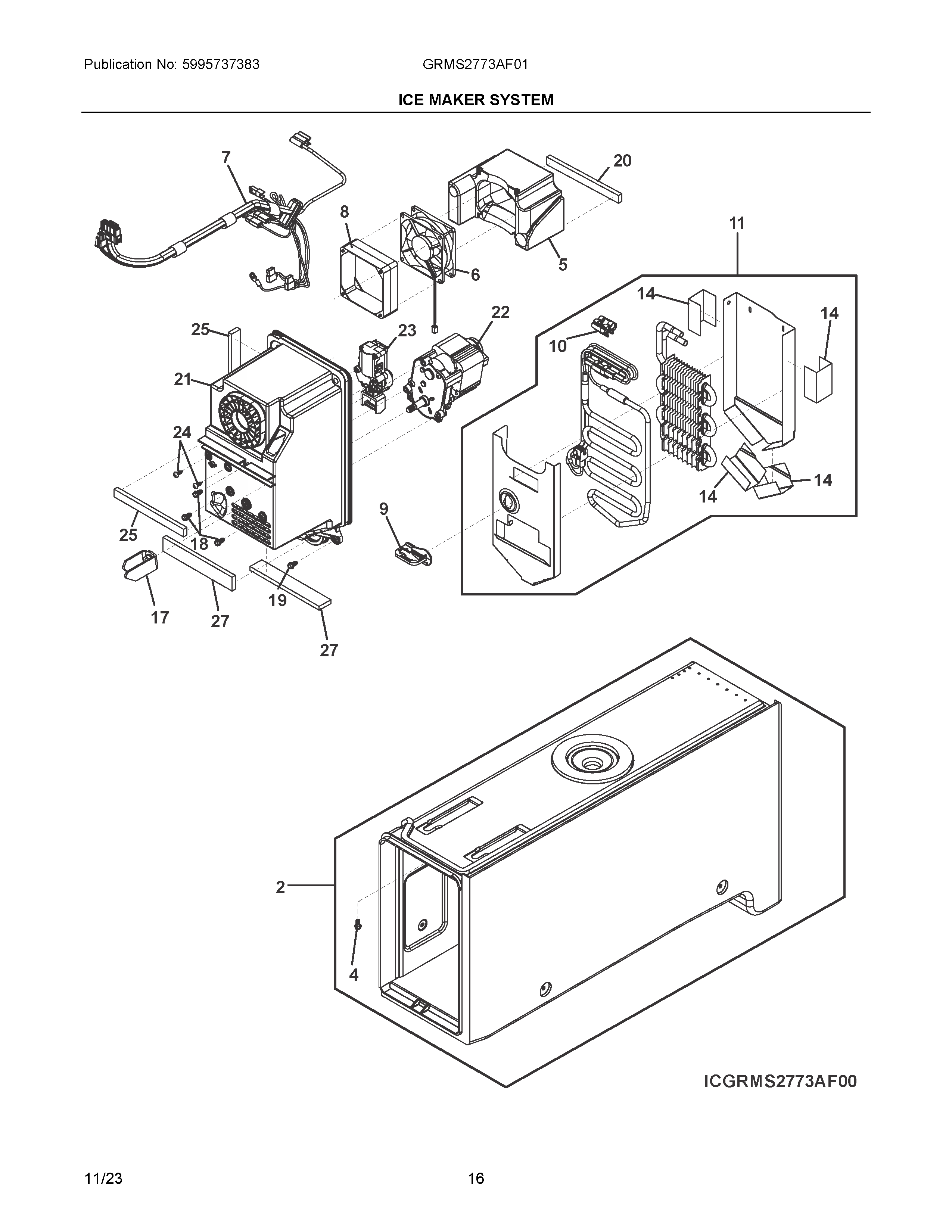

GRMS2773AF01 09 – ICE MAKER SYSTEM

GRMS2773AF01 09 – ICE MAKER SYSTEM

Written by

in

GRMS2773AF01 09 – ICE MAKER SYSTEM

Products

PositionProduct
NI811949503 Frigidaire Screw
25304534891 Frigidaire Housing Assembly
4241953902 Frigidaire Refrigerator Screw
55304523073 Frigidaire Refrigerator Duct
65304524796 Frigidaire Refrigerator Motor
75304534890 Frigidaire Harness
8GROMMET, FAN
95304508037 Frigidaire Refrigerator Connector
105304519629 Frigidaire Refrigerator Clip
115304519630 Frigidaire Refrigerator Evaporator Assembly
145304485759 Frigidaire Refrigerator Tape
17241829001 Frigidaire Refrigerator Bar Drive
18240555002 Frigidaire Refrigerator Screw #8-32 X 3/8
19519088008 Frigidaire Refrigerator Screw
215304534888 Frigidaire Housing
225304534889 Frigidaire Motor
235304526819 Frigidaire Refrigerator Selector
24218359202 Frigidaire Refrigerator Screw
255303918784 Frigidaire Refrigerator Air Handler Housing
275304519211 Frigidaire Refrigerator Gasket
