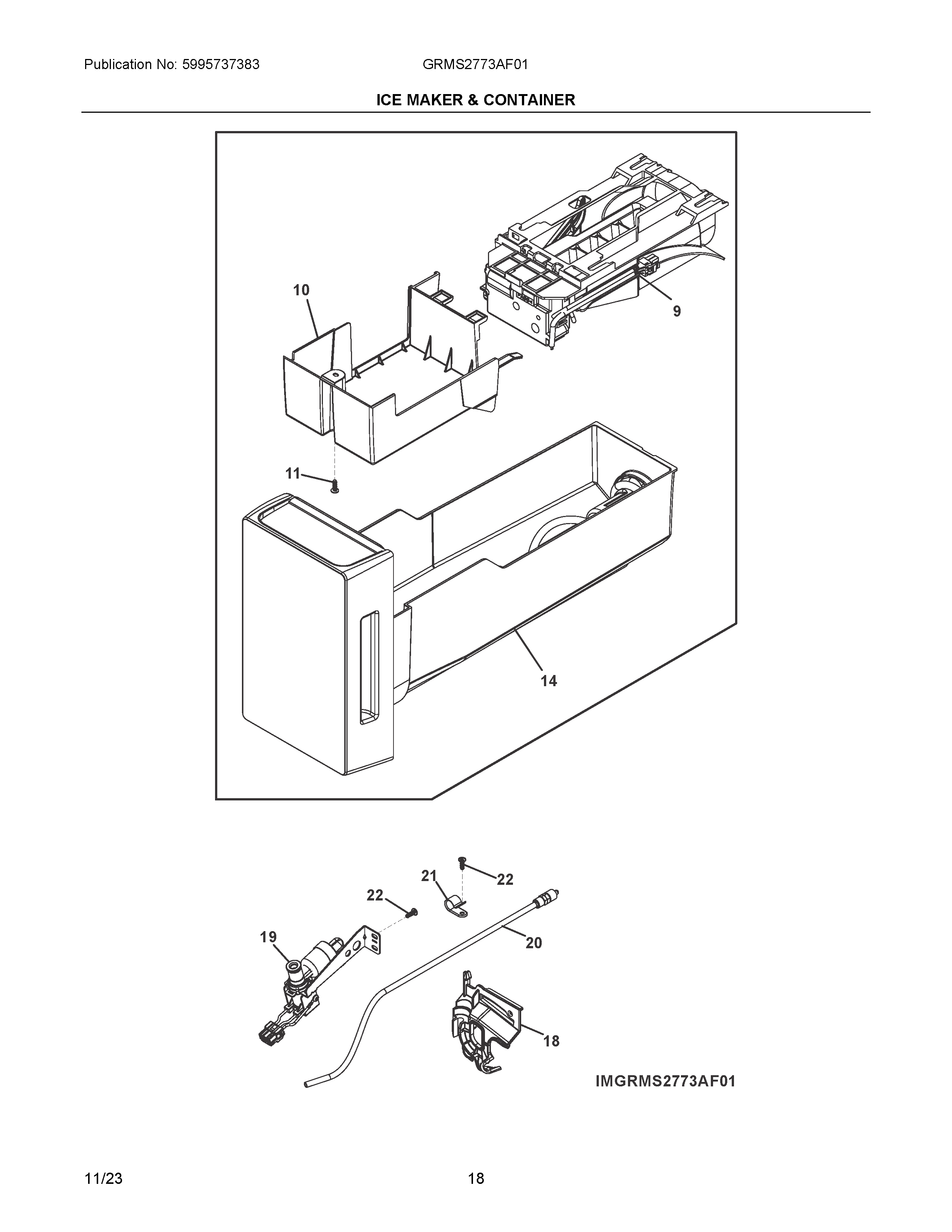

GRMS2773AF01 10 – ICE MAKER & CONTAINER

GRMS2773AF01 10 – ICE MAKER & CONTAINER

Written by

in

GRMS2773AF01 10 – ICE MAKER & CONTAINER

Products

PositionProduct
NICLAMP, WATER TUBE
NICLAMP
NICABLE TIE, 2.5 X 120
9243297608 Frigidaire Refrigerator Ice Maker
10COVER
115304453707 Frigidaire Oven Screw
145304534893 Frigidaire Bucket Assembly
18BRACKET, WATER VALVE
195304536607 Frigidaire Valve
20TUBE ASMY,INLET WATER,OVERMOLD
21240396801 Frigidaire Refrigerator Tube Clamp
22811949503 Frigidaire Screw
