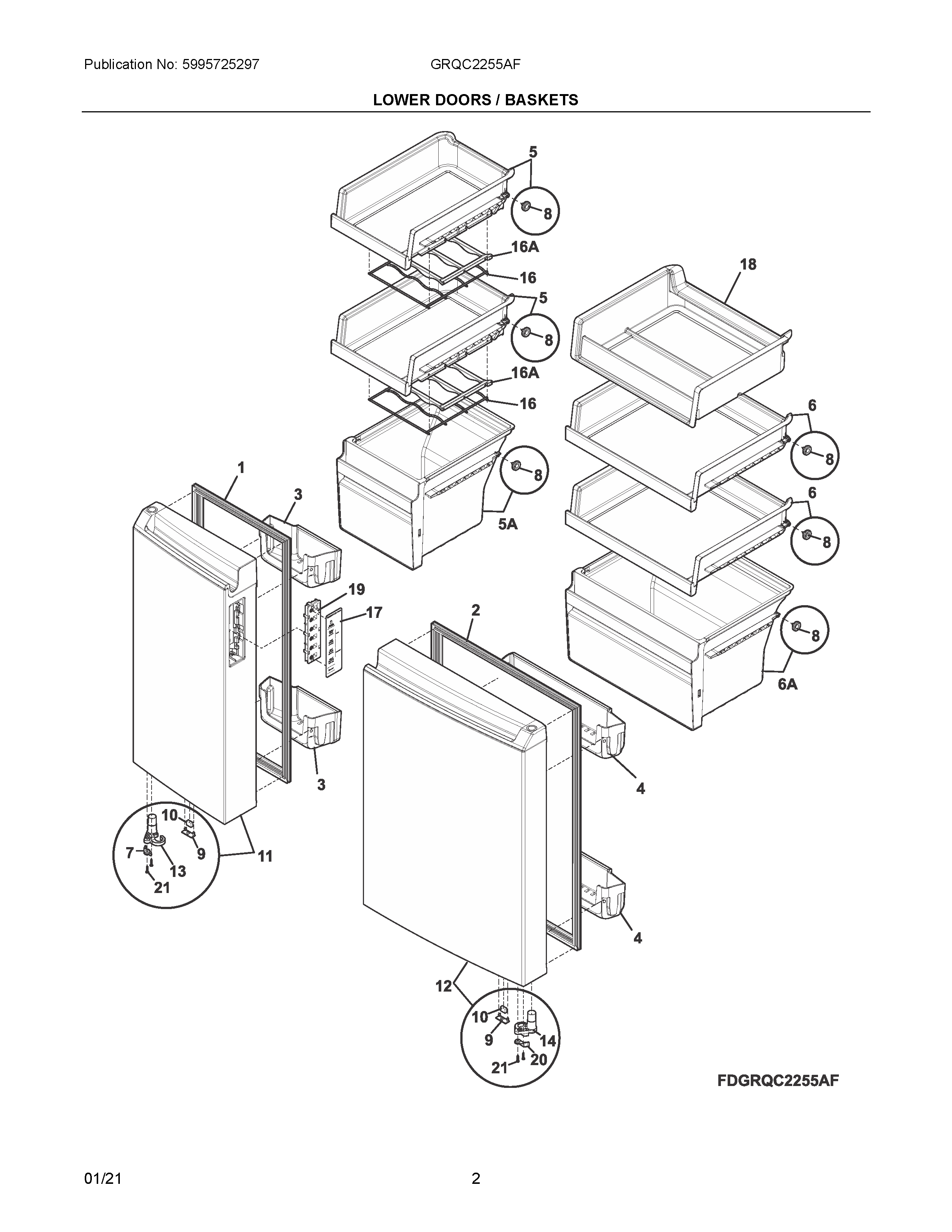

GRQC2255AF 02 – LOWER DOORS / BASKETS

GRQC2255AF 02 – LOWER DOORS / BASKETS

Written by

in

GRQC2255AF 02 – LOWER DOORS / BASKETS

Products

PositionProduct
15304527968 Frigidaire Gasket
2GASKET, DOOR, RH FREEZER
35304526862 Frigidaire Refrigerator Bin
45304526861 Frigidaire Bin
5DRAWER ASSEMBLY, FREEZER, LH TOP
5ADRAWER ASSEMBLY, FREEZER, LH BOTTOM
6DRAWER ASSEMBLY, FREEZER, RH TOP
6ADRAWER ASSEMBLY, FREEZER, RH BOTTOM
7STOP, FRZR DOOR, LH BOTTOM
85304519124 Frigidaire Roller
9COVER, SENSOR MAGNET
105304519044 Frigidaire Magnet
11DOOR ASMY,FREEZER,STAINLESS
12DOOR ASSEMBLY, FREEZER, STAINLESS, RH
135304526833 Frigidaire Bearing
14BEARING, AUTO CLOSER, RH
16RACK ASSEMBLY, BOTTLE, WIRE
16AMAT, WINE RACK
17OVERLAY, USER INTERFACE, FREEZER
185304526856 Frigidaire Container
195304531769 Frigidaire Refrigerator PCB Board
20STOP, FRZR DOOR, RH BOTTOM
21Screw,PF AB PFZ PF ,3.5×1.27×19
