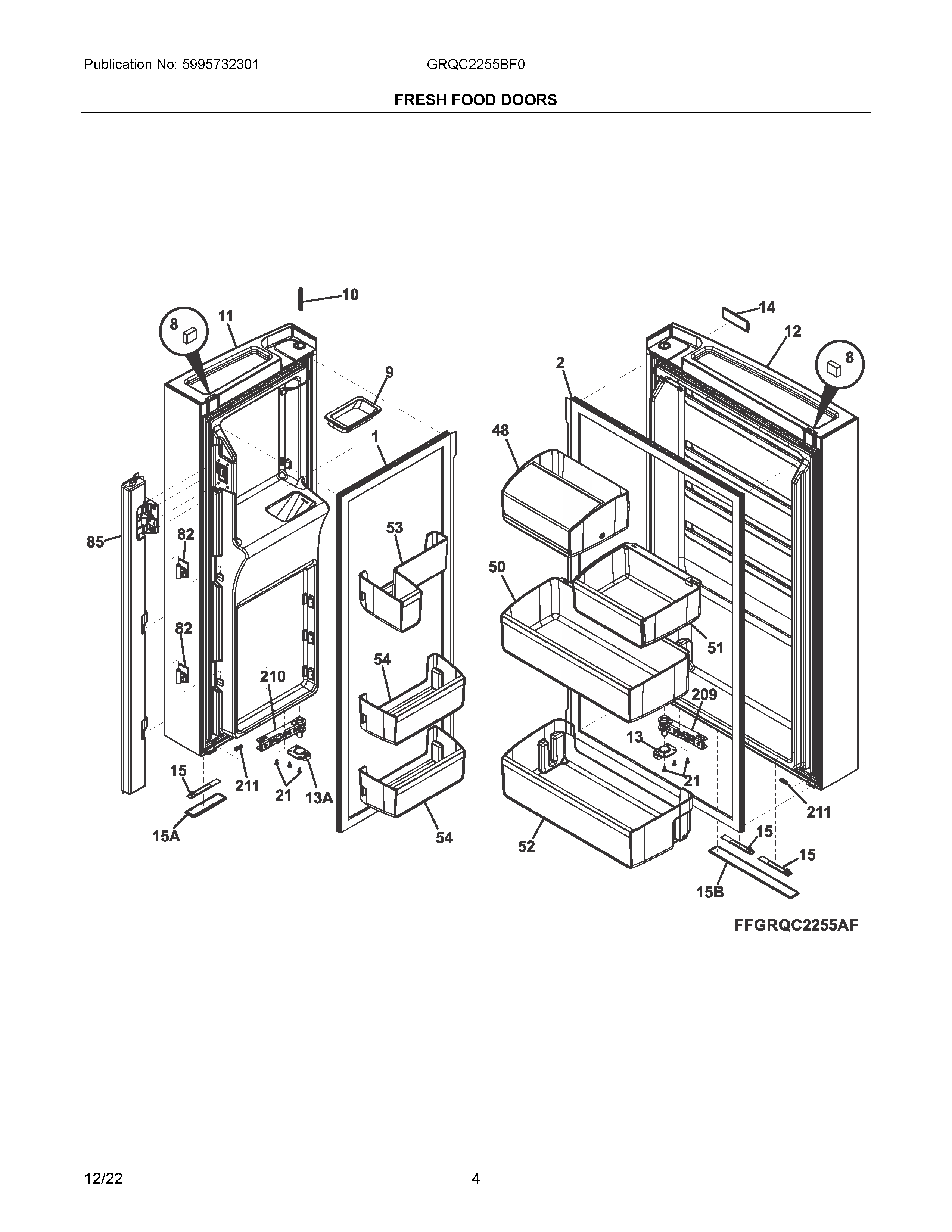

GRQC2255BF0 03 – FRESH FOOD DOORS

GRQC2255BF0 03 – FRESH FOOD DOORS

Written by

in

GRQC2255BF0 03 – FRESH FOOD DOORS

Products

PositionProduct
NI5304533518 Frigidaire Door Alignment
NI5304529570 Frigidaire Refrigerator Lens
NIA5304531674 Frigidaire Heater
NIBScrew, hilo phil pn, .5", white
NI242200102 Frigidaire Refrigerator Clip
15304529569 Frigidaire Refrigerator Gasket
25304529576 Frigidaire Refrigerator Gasket
85304519044 Frigidaire Magnet
95304526838 Frigidaire Frame
105304519067 Frigidaire Refrigerator Spring
11DOOR ASSEMBLY, OUTER, STAINLESS, LH FRESH FOOD, DISP SIDE
12DOOR ASSEMBLY, OUTER, STAINLESS, RH FRESH FOOD
135304519070 Frigidaire Refrigerator Stop
13ASTOP, ASSEMBLY, LH DOOR
145304512150 Frigidaire Refrigerator Nameplate
15A5304526839 Frigidaire Lens Assembly
155304523011 Frigidaire Refrigerator Light Board
15BLENS
21241953902 Frigidaire Refrigerator Screw
485304519073 Frigidaire Bin Assembly
505304526860 Frigidaire Refrigerator Bin
51BIN ASMY,FLEX,DOOR,SLIDE
525304519077 Frigidaire Refrigerator Bin
535304519078 Frigidaire Refrigerator Bin
545304519079 Frigidaire Refrigerator Bin
825304519080 Frigidaire Refrigerator Hinge
855304519081 Frigidaire Refrigerator Mullion Assembly
2095304526201 Frigidaire Refrigerator Right Hand Door Closer Without
2105304526202 Frigidaire Refrigerator Left Hand Door Closer
2115304519083 Frigidaire Refrigerator Bumper
