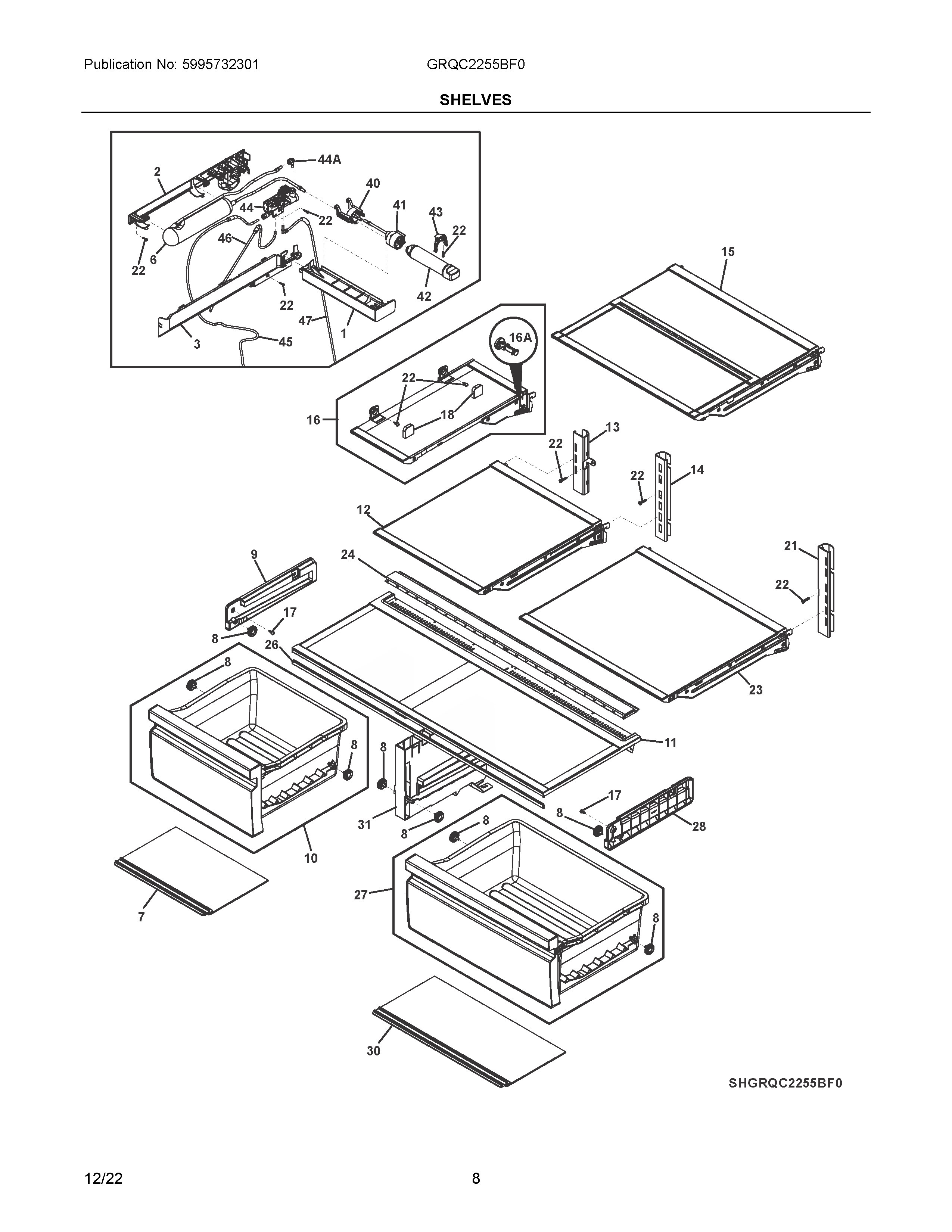

GRQC2255BF0 05 – SHELVES

GRQC2255BF0 05 – SHELVES

Written by

in

GRQC2255BF0 05 – SHELVES

Products

Position	Product
NIA	5304529553 Frigidaire Seal
NI	242200102 Frigidaire Refrigerator Clip
NI	5304523029 Frigidaire Screw Assembly
NIA	WCI 5304533519
1	5304533262 Frigidaire Refrigerator Cover
2	5304529601 Frigidaire Support Bracket
3	COVER, WATER TANK
6	5304523037 Frigidaire Refrigerator Tank
7	5304519123 Frigidaire Refrigerator Cover
8	5304519124 Frigidaire Roller
9	5304519125 Frigidaire Refrigerator Rail
10	DRAWER ASSEMBLY, CRISPER, LH, W/ROLLERS
11	5304531895 Frigidaire Cover Assembly
12	5304523041 Frigidaire Shelf Assembly
13	Bracket, cantilever shlf, LH
14	Bracket, cantilever shlf, center
15	5304523044 Frigidaire Shelf Assembly
16A	5304523682 Frigidaire Pin
16	5304523045 Frigidaire Shelf Assembly
17	Screw, hilo phil pn, .5", white
18	5304519133 Frigidaire Refrigerator Cover Assembly
21	5304519136 Frigidaire Bracket Assembly
22	811949503 Frigidaire Screw
23	SHELF ASSEMBLY, CANTILEVER, GLASS, RH
24	5304523048 Frigidaire Housing Assembly
26	5304519140 Frigidaire Refrigerator Gasket
27	DRAWER ASSEMBLY, CRISPER, RH, W/ROLLERS
28	Rail, crisper, RH side
30	5304519143 Frigidaire Refrigerator Cover
31	5304532661 Frigidaire Dishwasher Divider
40	5304531743 Frigidaire Refrigerator Guide
41	5304533202 Frigidaire Refrigerator Manifold
42	EPTWFU01 Frigidaire Refrigerator PureSource Ultra II Water Filter
43	5304519148 Frigidaire Refrigerator Holder
44	5304523052 Frigidaire Refrigerator Water Valve
44A	5304523053 Frigidaire Refrigerator Connector
45	5304524353 Frigidaire Refrigerator Tubing
46	5304527422 Frigidaire Refrigerator Tube
47	5304526817 Frigidaire Tubing
