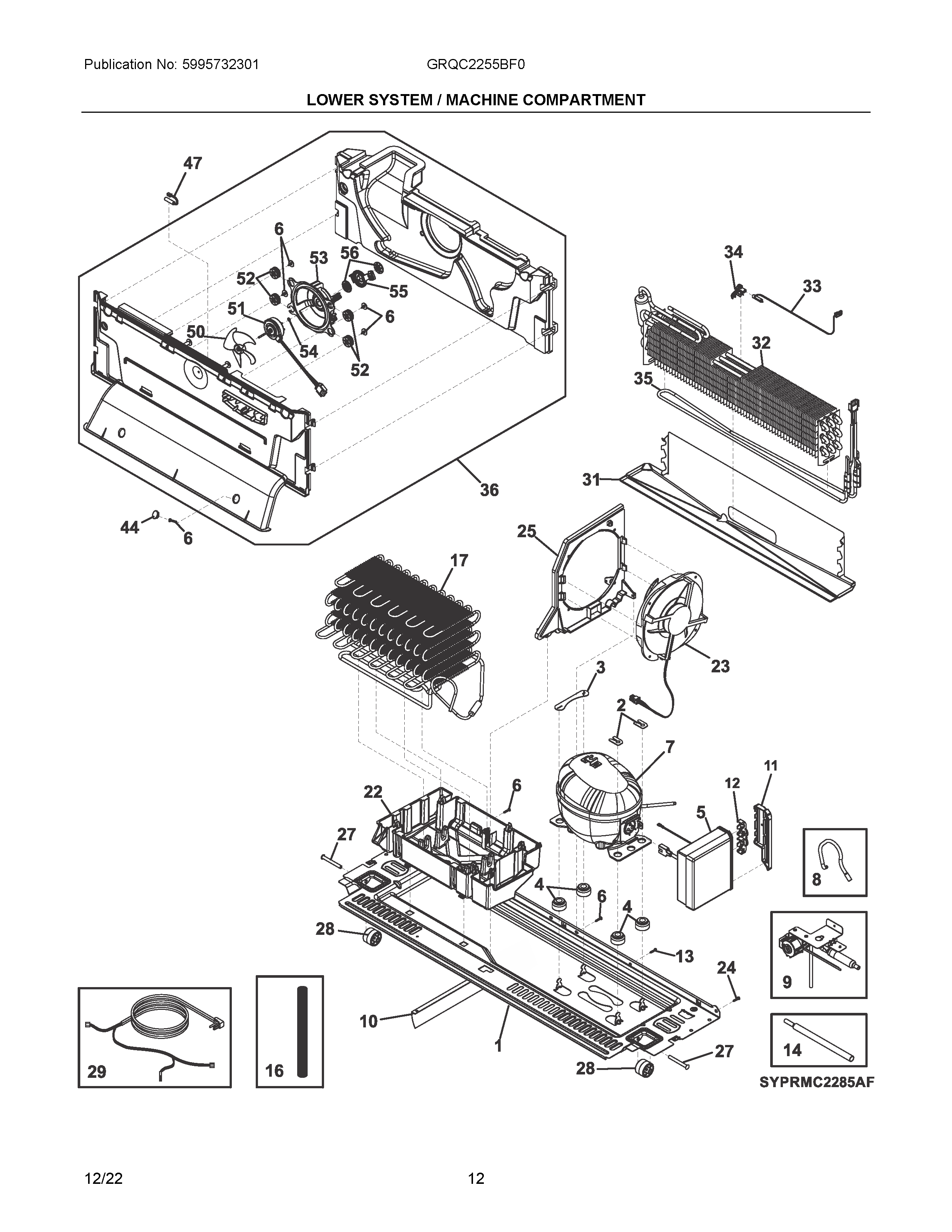

GRQC2255BF0 07 – LOWER SYSTEM / MACHINE COMPARTMENT

GRQC2255BF0 07 – LOWER SYSTEM / MACHINE COMPARTMENT

Written by

in

GRQC2255BF0 07 – LOWER SYSTEM / MACHINE COMPARTMENT

Products

PositionProduct
NI811950601 Frigidaire Refrigerator Seal
NIASCREW
NIAFOAM INSULATION, DYCO TUBE
NIAGROMMET, DYCO TUBE
1BASE, COMPRESSOR ASSY
2CLAMP, COMPRESSOR, SINGLE HOLE
3Clamp,compressor ,2 hole
4811978901 Frigidaire Refrigerator Grommet
55304523061 Frigidaire Refrigerator Control Assembly
6811949503 Frigidaire Screw
75304523062 Frigidaire Refrigerator Compressor
85304526794 Frigidaire Tube
95304529531 Frigidaire Refrigerator Valve
10FLAP BRACKET, COMPRESSOR BASE
11Cover,flex drive ,side ,compressor
12Clamp,flex drive ,cable
135304519110 Frigidaire Screw
145304523065 Frigidaire Refrigerator Tubing
15SUPPORT, FOAM, RH, EVAPORATOR
15ASUPPORT, FOAM, LH, EVAPORATOR
165304519156 Frigidaire Refrigerator Drain Tube
17CONDENSER ASSY DYNAMIC
18HEATER ASSEMBLY, FRZR, LH SIDE
19COVER ASSEMBLY, FRZR AIR FLOW, LH SIDE, W/FAN-HEATER
20BACKPLATE, FAN SHROUD
21COVER, CONNECTOR, DOUBLE IM
225304529527 Frigidaire Refrigerator Pan
235304525730 Frigidaire Refrigerator Fan Assembly
24808199001 Frigidaire Screw
255304529530 Frigidaire Refrigerator Condenser Shroud
27811998302 Frigidaire Refrigerator Shaft
28811666601 Frigidaire Refrigerator Roller
295304523066 Frigidaire Refrigerator Power Cord
30COVER, WINDOW, MIDDLE DRAWER
31TRAY, EVAP DRAIN
325304526798 Frigidaire Refrigerator Evaporator
335303918851 Frigidaire Refrigerator Thermostat Kit
34811980406 Frigidaire Clamp
35HEATER, DEFROST, EVAPORTATOR
365304526802 Frigidaire Assembly Cover
375304526806 Frigidaire Damper
385304523686 Frigidaire Seal
445304524004 Frigidaire Refrigerator Cover
515304536608 Frigidaire Motor
53WCI 5304526803
655304519183 Frigidaire Washer
