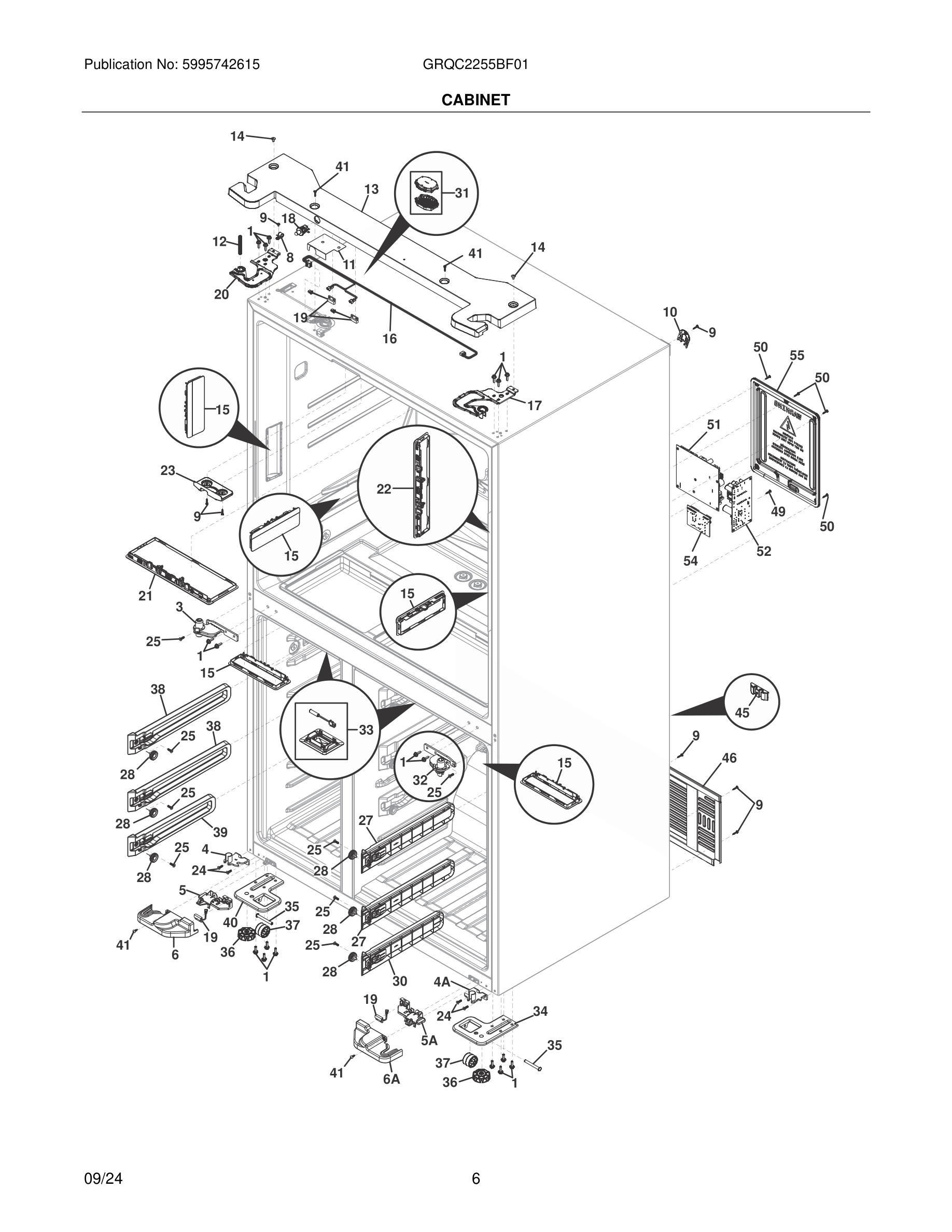

GRQC2255BF01 07 – CABINET

GRQC2255BF01 07 – CABINET

Written by

in

GRQC2255BF01 07 – CABINET

Products

PositionProduct
*240396801 Frigidaire Refrigerator Tube Clamp
*SCREW, SELF TAPPING, 4.2 X 13
*#5304519116 Frigidaire Refrigerator Harness
1811949401 Frigidaire Refrigerator Screw
3HINGE, CENTER, LH
4HINGE, BOTTOM DOOR, LH
4AHINGE, BOTTOM DOOR, RH
5SUPPORT, REED SWITCH, LH BOTTOM
5ASUPPORT, REED SWITCH, RH BOTTOM
6ACOVER, FOOT BASE, RH
6COVER, FOOT BASE, LH
8CLAMP
9811949503 Frigidaire Screw
105304519086 Frigidaire Refrigerator Cover
11SHIELD, EYEBROW
125304519067 Frigidaire Refrigerator Spring
135304536150 Frigidaire Cover Assembly
145304519089 Frigidaire Refrigerator Screw
15#5304524656 Frigidaire Refrigerator Assembly-Light
165304532658 Frigidaire Harness
175304536152 Frigidaire Hinge
18#5304519093 Frigidaire Refrigerator Switch
19#5304532559 Frigidaire Refrigerator Switch
205304536153 Frigidaire Hinge
21#LAMP
22#5304526810 Frigidaire Light Assembly
235304520058 Frigidaire Refrigerator Guide Assembly
24SCREW
25Screw, hilo phil pn, .5", white
27RAIL, FREEZER SIDE, RH TOP
285304519124 Frigidaire Roller
30RAIL, FREEZER SIDE, RH BOTTOM
315303918849 Frigidaire Refrigerator Housing Kit
32HINGE, CENTER, RH
33#5303918850 Frigidaire Refrigerator Thermistor Kit
34BRACKET ASSEMBLY, LEVELING FOOT, RH
35811998302 Frigidaire Refrigerator Shaft
365304519106 Frigidaire Refrigerator Foot
37811666601 Frigidaire Refrigerator Roller
38RAIL, FREEZER SIDE, LH TOP
39RAIL, FREEZER SIDE, LH BOTTOM
40BRACKET ASSEMBLY, LEVELING FO
415304526847 Frigidaire Screw Assembly
455304519111 Frigidaire Refrigerator Clip
465304519112 Frigidaire Refrigerator Cover
49808199001 Frigidaire Screw
505304523032 Frigidaire Refrigerator Screw
51#5304526796 Frigidaire PCB Board
52#5304526795 Frigidaire Refrigerator PC Board
54#5304519115 Frigidaire Refrigerator Power Control Board
555304519117 Frigidaire Cover
