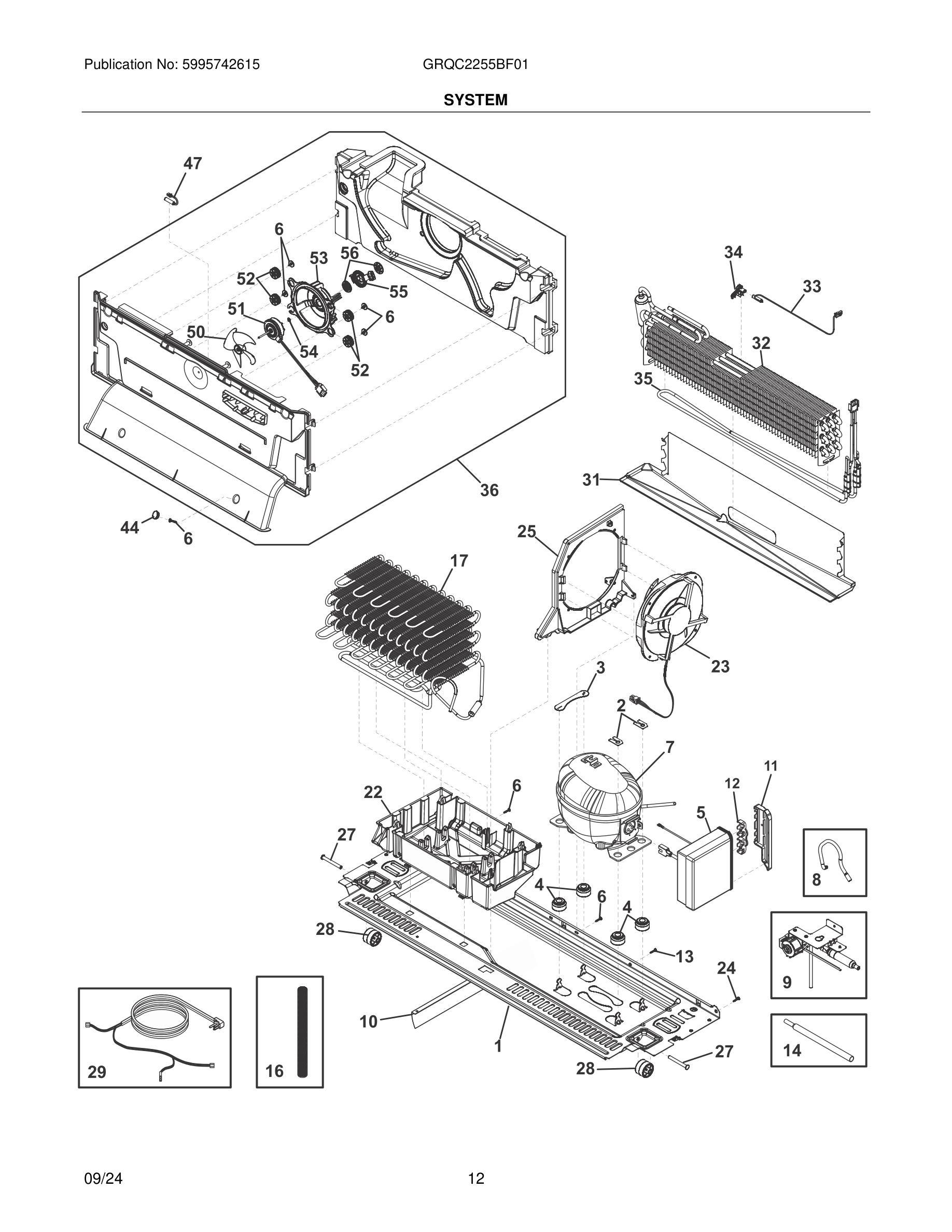

GRQC2255BF01 13 – SYSTEM

GRQC2255BF01 13 – SYSTEM

Written by

in

GRQC2255BF01 13 – SYSTEM

Products

PositionProduct
*811950601 Frigidaire Refrigerator Seal
1BASE, COMPRESSOR ASSY
2CLAMP, COMPRESSOR, SINGLE HOLE
3Clamp,compressor ,2 hole
4811978901 Frigidaire Refrigerator Grommet
5#5304523061 Frigidaire Refrigerator Control Assembly
5*SCREW
6811949503 Frigidaire Screw
7#5304523062 Frigidaire Refrigerator Compressor
8#5304526794 Frigidaire Tube
9#5304529531 Frigidaire Refrigerator Valve
10FLAP BRACKET, COMPRESSOR BASE
11Cover,flex drive ,side ,compressor
12Clamp,flex drive ,cable
135304519110 Frigidaire Screw
14#5304523065 Frigidaire Refrigerator Tubing
15ASUPPORT, FOAM, LH, EVAPORATOR
15SUPPORT, FOAM, RH, EVAPORATOR
165304519156 Frigidaire Refrigerator Drain Tube
17#CONDENSER ASSY DYNAMIC
17*GROMMET, DYCO TUBE
18#HEATER ASSEMBLY, FRZR, LH SIDE
19#COVER ASSEMBLY, FRZR AIR FLOW, LH SIDE, W/FAN-HEATER
20BACKPLATE, FAN SHROUD
21COVER, CONNECTOR, DOUBLE IM
22*FOAM INSULATION, DYCO TUBE
225304529527 Frigidaire Refrigerator Pan
23#5304525730 Frigidaire Refrigerator Fan Assembly
24808199001 Frigidaire Screw
255304529530 Frigidaire Refrigerator Condenser Shroud
27811998302 Frigidaire Refrigerator Shaft
28811666601 Frigidaire Refrigerator Roller
29#5304523066 Frigidaire Refrigerator Power Cord
30COVER, WINDOW, MIDDLE DRAWER
31TRAY, EVAP DRAIN
32#5304526798 Frigidaire Refrigerator Evaporator
33#5303918851 Frigidaire Refrigerator Thermostat Kit
34811980406 Frigidaire Clamp
35#HEATER, DEFROST, EVAPORTATOR
36#5304526802 Frigidaire Assembly Cover
37#5304526806 Frigidaire Damper
385304523686 Frigidaire Seal
445304524004 Frigidaire Refrigerator Cover
51#5304536608 Frigidaire Motor
53WCI 5304526803
655304519183 Frigidaire Washer
