GRQC2255BF01 15 – ICE & WATER DISPENSER

GRQC2255BF01 15 – ICE & WATER DISPENSER

Written by

in

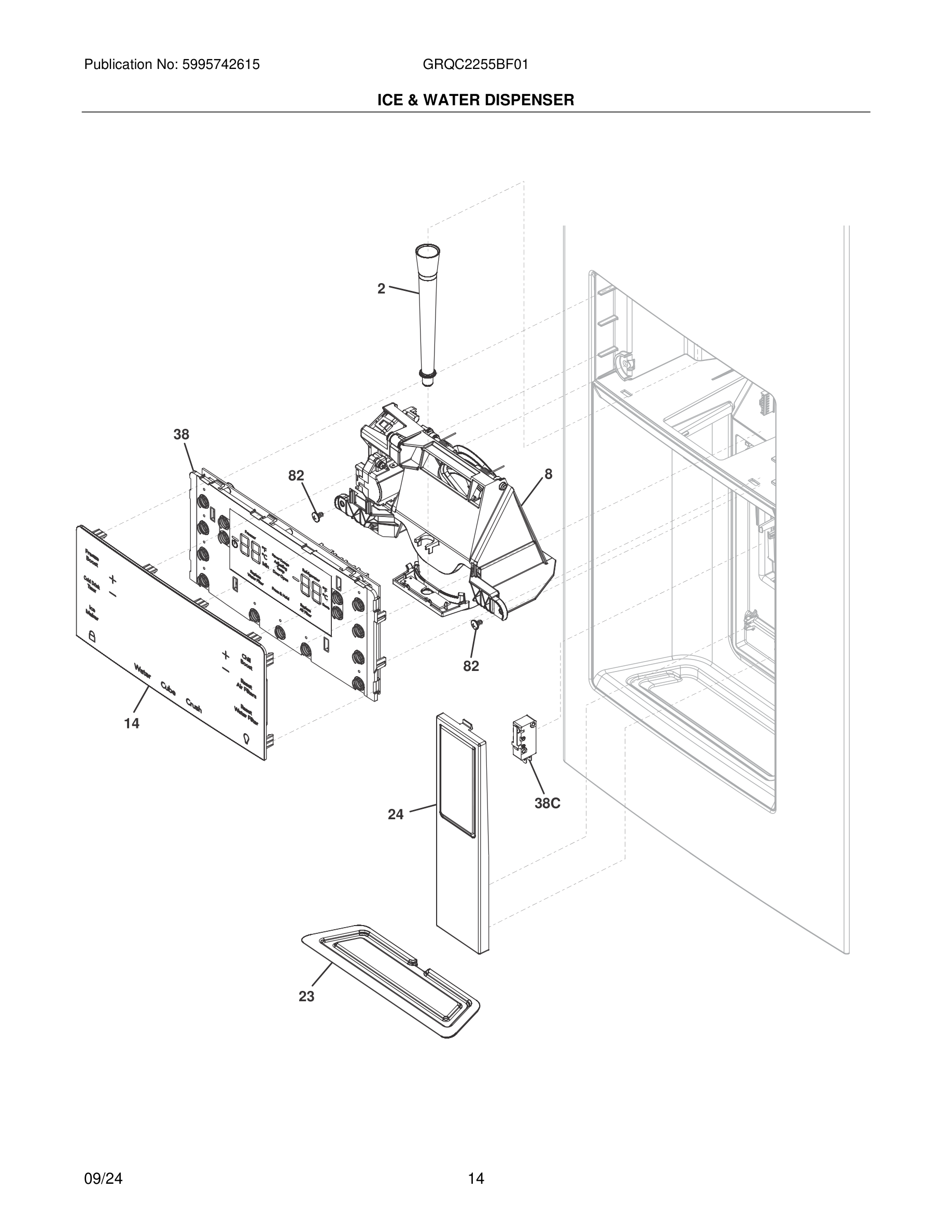

GRQC2255BF01 15 – ICE & WATER DISPENSER

Products

PositionProduct
*242200102 Frigidaire Refrigerator Clip
25304519194 Frigidaire Refrigerator Guide
8#5304531710 Frigidaire Refrigerator Dispenser Assembly
145304533508 Frigidaire Overlay
23TRAY, DISPENSER DRIP
245304526842 Frigidaire Paddle Assembly
24*5304519199 Frigidaire Refrigerator Spring
38#5304526840 Frigidaire Display Board
38C#5304523072 Frigidaire Refrigerator Switch
82241953902 Frigidaire Refrigerator Screw
