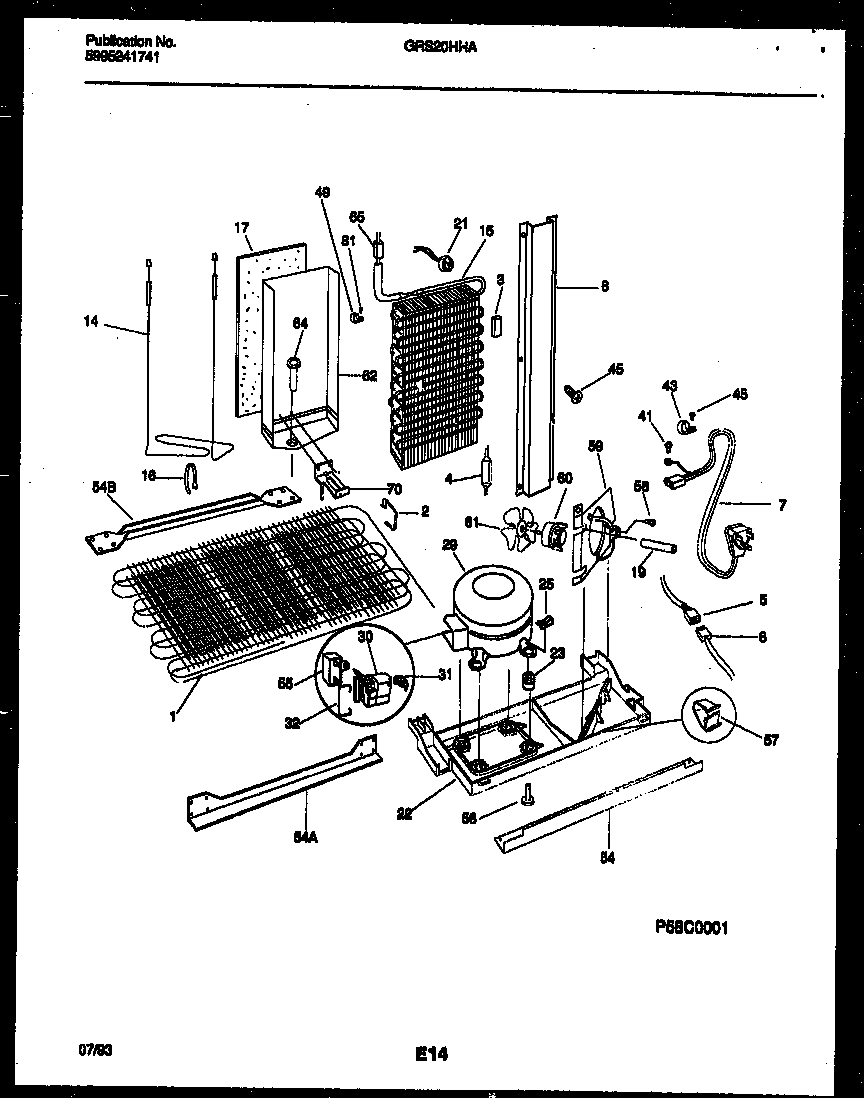

GRS20HRAD0 07 – SYSTEM AND AUTOMATIC DEFROST PARTS

GRS20HRAD0 07 – SYSTEM AND AUTOMATIC DEFROST PARTS

Written by

in

GRS20HRAD0 07 – SYSTEM AND AUTOMATIC DEFROST PARTS

Products

PositionProduct
*59890WCI 5303917166
1BSPACER TUBE
1WCI 5303289025
1ASPACER-COND TUBE,BLACK
2WCI 5303289029
3WCI 215226501
3ABLOCK-EVAP COIL, STYROFOAM INSUL, LH (NOT ILLUSTRATED)
45303305677 Frigidaire Replacement Filter Dryer Filters
5AHARNESS-WIRING, REFR CONTROLS (NOT ILLUSTRATED)
5BHARNESS-WIRING, FRZR CONTROLS (NOT ILLUSTRATED)
5WCI 215458800
6WCI 215501600
7WCI 215459201
8WCI 5303289033
14WCI 5303289039
15WCI 215289603
15ATUBE-INLET (NOT ILLUSTRATED)
165308000110 Frigidaire Refrigerator Evaporator/Heater Primary Strap
17WCI 5303289042
19TUBE-RUBBER
215303917954 Frigidaire Refrigerator Defrost Limit Thermostat Kit
22WCI 5303289030
23218513300 Frigidaire Refrigerator Compressor Mount Grommet
25WCI 215014200
29A5304464438 Frigidaire Compressor Run Capacitor
29WCI 5303925125
30WCI 216008900
31WCI 5303274700
32WCI 215012000
415308000039 Frigidaire Refrigerator Screw
43B5308000133 Frigidaire Refrigerator Clamp
435303001199 Frigidaire Refrigerator Wiring Harness Clamp
455304455651 Frigidaire Refrigerator Screw
45A5304455852 Frigidaire Refrigerator Screw
49WCI 215506900
54AWCI 5303289311
54BWCI 5303289292
54WCI 5303289027
54AWCI 215732700
56WCI 215014100
57WCI 215073800
58240555002 Frigidaire Refrigerator Screw #8-32 X 3/8
59WCI 5303289031
60WCI 215501800
61AWCI 215004700
61WCI 5303289032
61BGROMMET, SILENCER (NOT ILLUSTRATED)
62WCI 215048200
64241957901 Frigidaire Refrigerator Tube-Drain
65WCI 5303289301
70WCI 5303289041
815304455650 Frigidaire Refrigerator Screw
