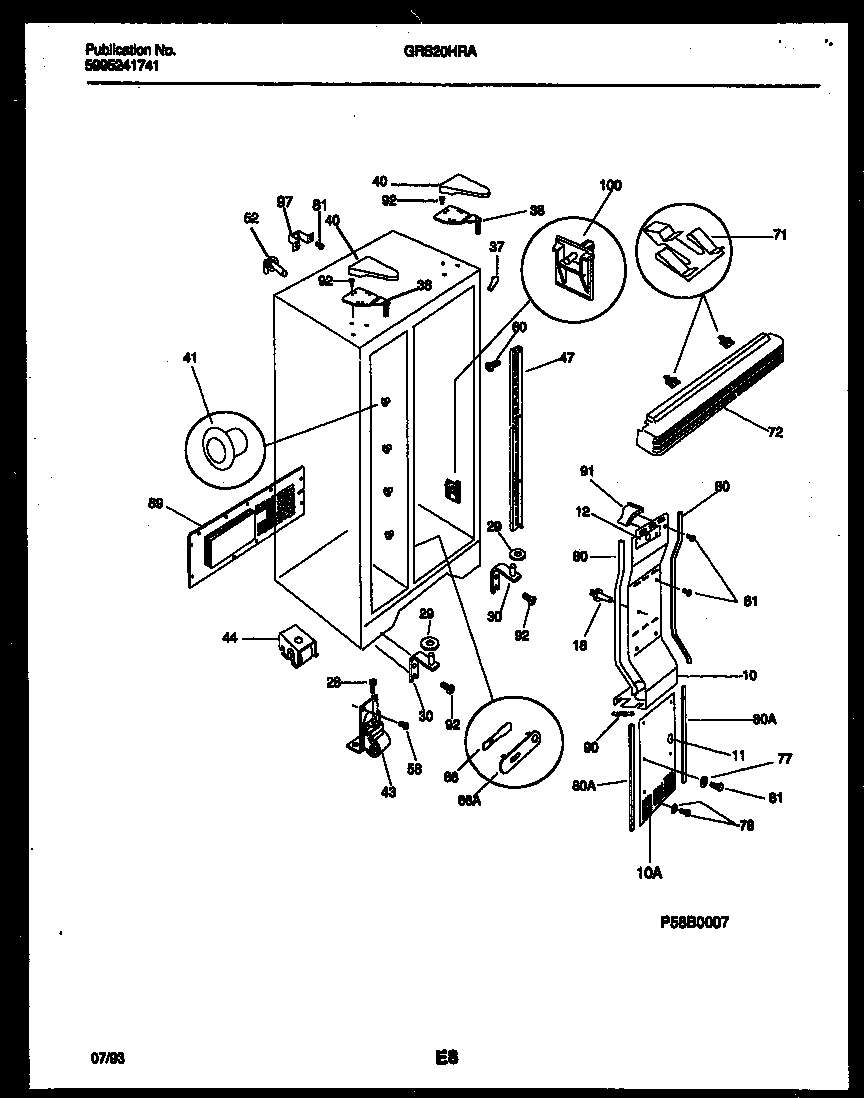

GRS20HRAW0 04 – CABINET PARTS

GRS20HRAW0 04 – CABINET PARTS

Written by

in

GRS20HRAW0 04 – CABINET PARTS

Products

PositionProduct
*59878PLUG, BUTTON, CABINET LINER (NI)
10WCI 5303289038
10AWCI 5303289035
115303208309 Frigidaire Refrigerator Plug Hole
12WCI 5303291143
18ASUPPORT-AIR DUCT CVR,1.83“ LONG
18WCI 5303289043
28WCI 5303289062
29WCI 215003200
30BRACKET-LOWER HINGE,RH/LH ,W/HINGE PIN
30ATAPPING PLATE, RH (NOT ILLUSTRATED)
30BTAPPING PLATE, LH (NOT ILLUSTRATED)
37TRIM-CABINET CORNER, WHITE
38WCI 215004400
40WCI 5303288945
415304509705 Frigidaire Refrigerator Grommet
41A5304500407 Frigidaire Refrigerator Shelf Mounting Grommet
43ASCREW-ROLLER MTG,SPCL IND HEX HD, 5/16-18(23) X 7/8
43WCI 5303289059
44WCI 215163900
47WCI 5303288974
52APLUG-WTR INLET TUBE
52WCI 5303289294
605304455852 Frigidaire Refrigerator Screw
66AWCI 215050101
66WCI 215050201
71WCI 215003300
71ASCREW-CLIP/GRILLE, PAN HEAD, 6-20AB X 1/4 (NOT ILLUSTRATED)
72WCI 215362901
77WASHER-NYLON,3/16 X 5/8 OD
78AWASHER, EXT TOOTH LOCK, NO. 10 (NON-ILLUSTRATED)
80AWCI 5303289036
80WCI 5303289037
815304455650 Frigidaire Refrigerator Screw
89A5304455651 Frigidaire Refrigerator Screw
89WCI 5303288947
90WCI 215022602
91WCI 215175300
92241710601 Frigidaire Refrigerator Screw
97WCI 5303289299
100SUPPORT-PAN COVER
