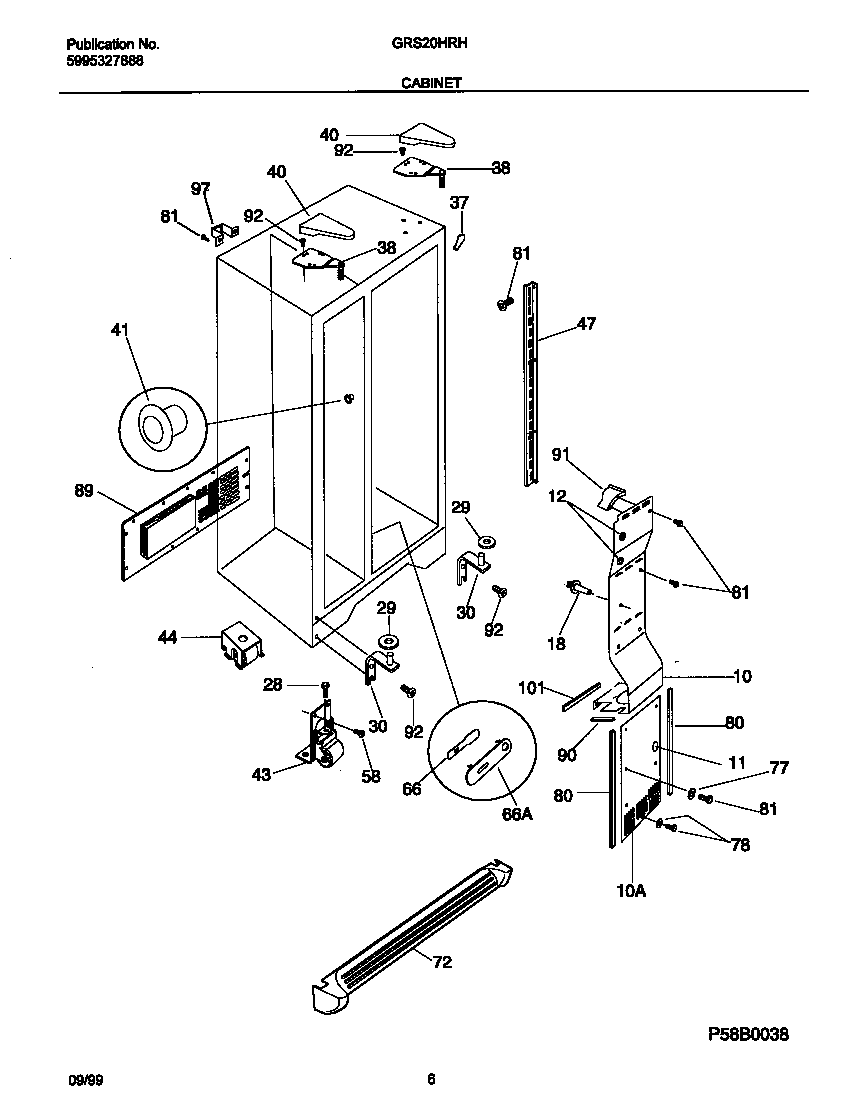

GRS20HRHD1 04 – CABINET

Products

Position	Product
*81011	WCI 5303322647
*81004	WCI 215314301
*81005	WCI 218871201
*81009	SCREW-ROLLER MTG,SPCL IND HEX HD, 5/16-18(23) X 7/8
*81016	PLUG-WTR INLET TUBE
*81003	SUPPORT-AIR DUCT CVR,1.83“ LONG
*81002	NUT, “U“ TYPE, NO. 8-15(A), FAN MOTOR MOUNT (NOT ILLUSTRATED)
*81015	PLUG, BUTTON, CABINET LINER (NI)
*81013	TOUCH, UP PAINT, ALMOND (NI)
*81006	WCI 218730700
*81010	WCI 218154003
*81007	WCI 218730800
*81008	5304500407 Frigidaire Refrigerator Shelf Mounting Grommet
*81012	WCI 218902101
10	WCI 218748902
10A	WCI 218751301
10B	WASHER, EXT TOOTH LOCK, NO. 10 (NON-ILLUSTRATED)
11	5303208309 Frigidaire Refrigerator Plug Hole
12	WCI 5303291143
18	WCI 5303289043
28	WCI 5303289062
29	WCI 215003200
30	BRACKET-LOWER HINGE,RH/LH ,W/HINGE PIN
37	WCI 5303321082
38	WCI 218215221
40	WCI 5303318774
41	5304509705 Frigidaire Refrigerator Grommet
43	WCI 218615300
44	WCI 218738300
47	WCI 218659500
66	WCI 215050201
66	WCI 218171301
72	WCI 218359608
77	WASHER-NYLON,3/16 X 5/8 OD
78	5304455651 Frigidaire Refrigerator Screw
80	WCI 218249802
81	5304455650 Frigidaire Refrigerator Screw
89	WCI 5303288947
90	WCI 215022602
91	WCI 218769900
92	241710601 Frigidaire Refrigerator Screw
97	WCI 5303289299
101	WCI 218663103
