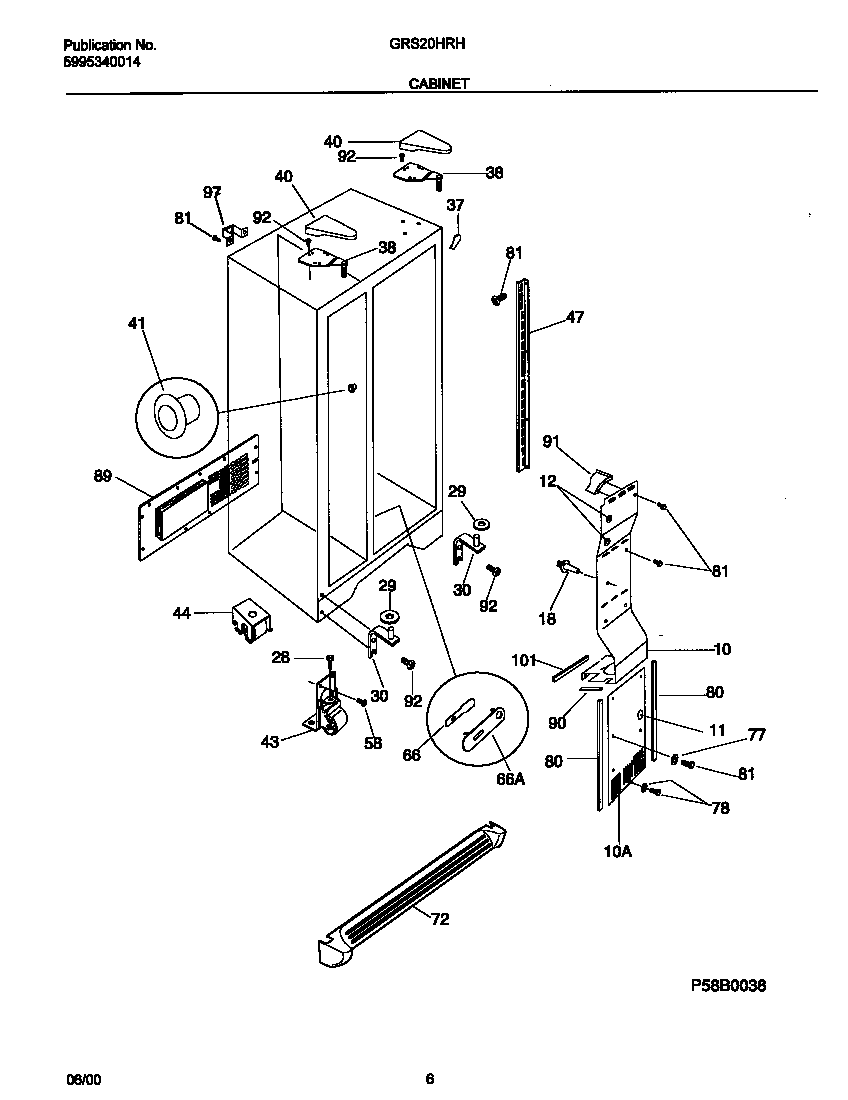

GRS20HRHD3 04 – CABINET

Written by

Products

Position	Product
*73771	WCI 218979601
*73767	NUT, “U“ TYPE, NO. 8-15(A), FAN MOTOR MOUNT (NOT ILLUSTRATED)
*73777	PLUG, BUTTON, CABINET LINER (NI)
*73773	WCI 5303322647
*73769	WCI 218871201
*73774	WCI 218902101
*73772	5304500407 Frigidaire Refrigerator Shelf Mounting Grommet
*73770	WCI 218979701
*73775	5303321319 Frigidaire Refrigerator White Touch Up Paint
*73768	SUPPORT-AIR DUCT CVR,1.83“ LONG
10	WCI 5303289038
10A	WCI 218751301
10B	WASHER, EXT TOOTH LOCK, NO. 10 (NON-ILLUSTRATED)
11	5303208309 Frigidaire Refrigerator Plug Hole
12	WCI 5303291143
18	WCI 5303289043
28	WCI 5303289062
29	WCI 215314301
30	BRACKET-LOWER HINGE,RH/LH ,W/HINGE PIN
37	WCI 5303321081
38	WCI 218215241
40	WCI 5303318773
41	5304509705 Frigidaire Refrigerator Grommet
43	WCI 218615300
44	WCI 218738300
47	WCI 218659500
66	WCI 215050201
66	WCI 218171301
72	WCI 218359604
77	WASHER-NYLON,3/16 X 5/8 OD
78	5304455651 Frigidaire Refrigerator Screw
80	WCI 218249802
81	5304455650 Frigidaire Refrigerator Screw
89	WCI 5303288947
90	WCI 215022602
91	WCI 218769900
92	241710601 Frigidaire Refrigerator Screw
97	WCI 5303289299
101	WCI 218663103
