GRS20HRHD4 07 – SYSTEM

GRS20HRHD4 07 – SYSTEM

Written by

in

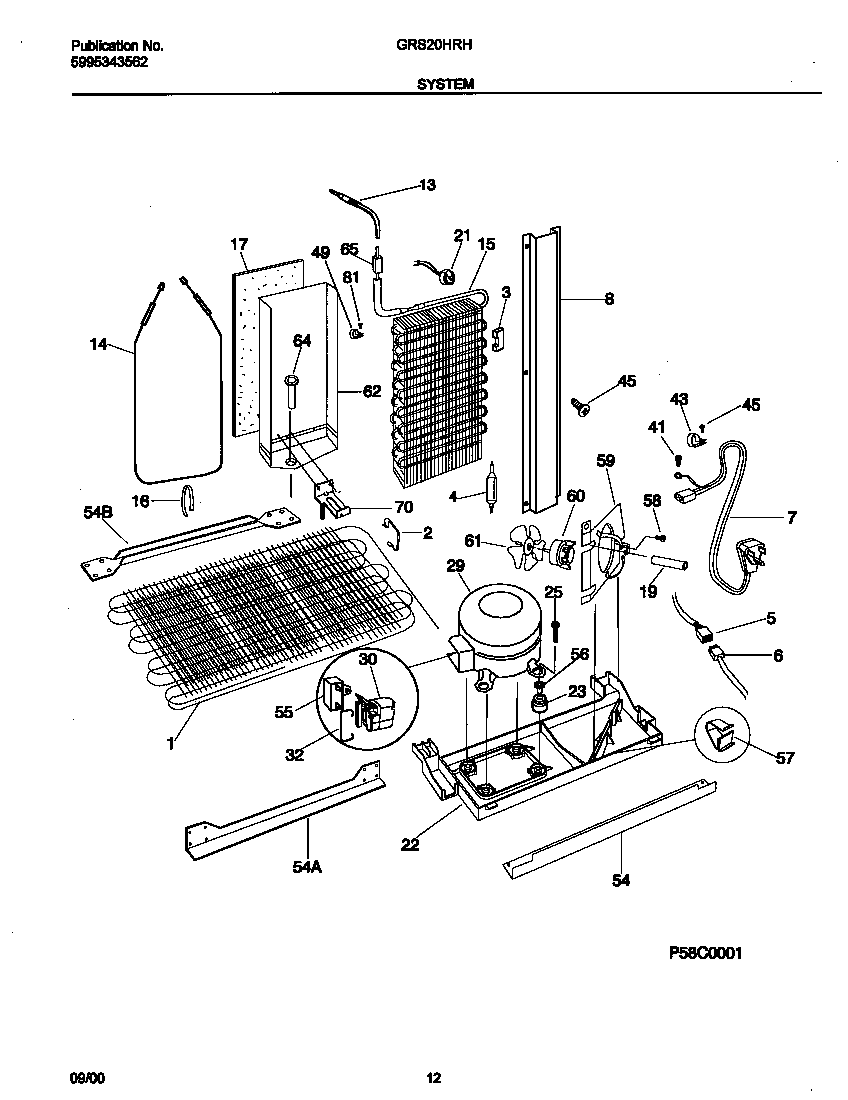

GRS20HRHD4 07 – SYSTEM

Products

PositionProduct
*17956WCI 218769200
*17949WCI 218679605
*17948WCI 5304406721
*17951HARNESS-WIRING, FRZR CONTROLS (NOT ILLUSTRATED)
*17955SCREW,HEX HD SER WSHR ,8-18 X 0.375
*17946SPACER-COND TUBE,BLACK
*17947SPACER TUBE
*17961WCI 5303917166
*17950HARNESS-WIRING, REFR CONTROLS (NOT ILLUSTRATED)
*17952TUBE-INLET (NOT ILLUSTRATED)
*179545308000133 Frigidaire Refrigerator Clamp
*17958WCI 218897001
*17960WCI 215004800
*17959WCI 215004700
*179575304455852 Frigidaire Refrigerator Screw
1WCI 218787700
2WCI 5303289029
3WCI 218679608
45303305677 Frigidaire Replacement Filter Dryer Filters
5WCI 218965301
6WCI 218965901
7WCI 215459201
8WCI 218803400
13WCI 215006701
14218169804 Frigidaire Refrigerator Defrost Heater
15WCI 218955801
165308000110 Frigidaire Refrigerator Evaporator/Heater Primary Strap
17WCI 5304415968
19WCI 218631200
21297216600 Frigidaire Refrigerator Defrost Thermostat
22WCI 218811100
23218513300 Frigidaire Refrigerator Compressor Mount Grommet
25WCI 218773500
295304475098 Frigidaire Refrigerator Compressor Kit
30WCI 218721109
32WCI 216649100
415308000039 Frigidaire Refrigerator Screw
435303001199 Frigidaire Refrigerator Wiring Harness Clamp
455304455651 Frigidaire Refrigerator Screw
49218990801 Frigidaire Refrigerator Evaporator/Cover Mount Bracket
54WCI 5303289027
54WCI 5303289292
54WCI 5303289311
555304464438 Frigidaire Compressor Run Capacitor
56WCI 218769300
57WCI 218247300
58240555002 Frigidaire Refrigerator Screw #8-32 X 3/8
59WCI 5303289031
60WCI 215501901
61WCI 5303289032
62WCI 215048202
64241957901 Frigidaire Refrigerator Tube-Drain
65WCI 5303289301
70WCI 5303289041
815304455650 Frigidaire Refrigerator Screw
