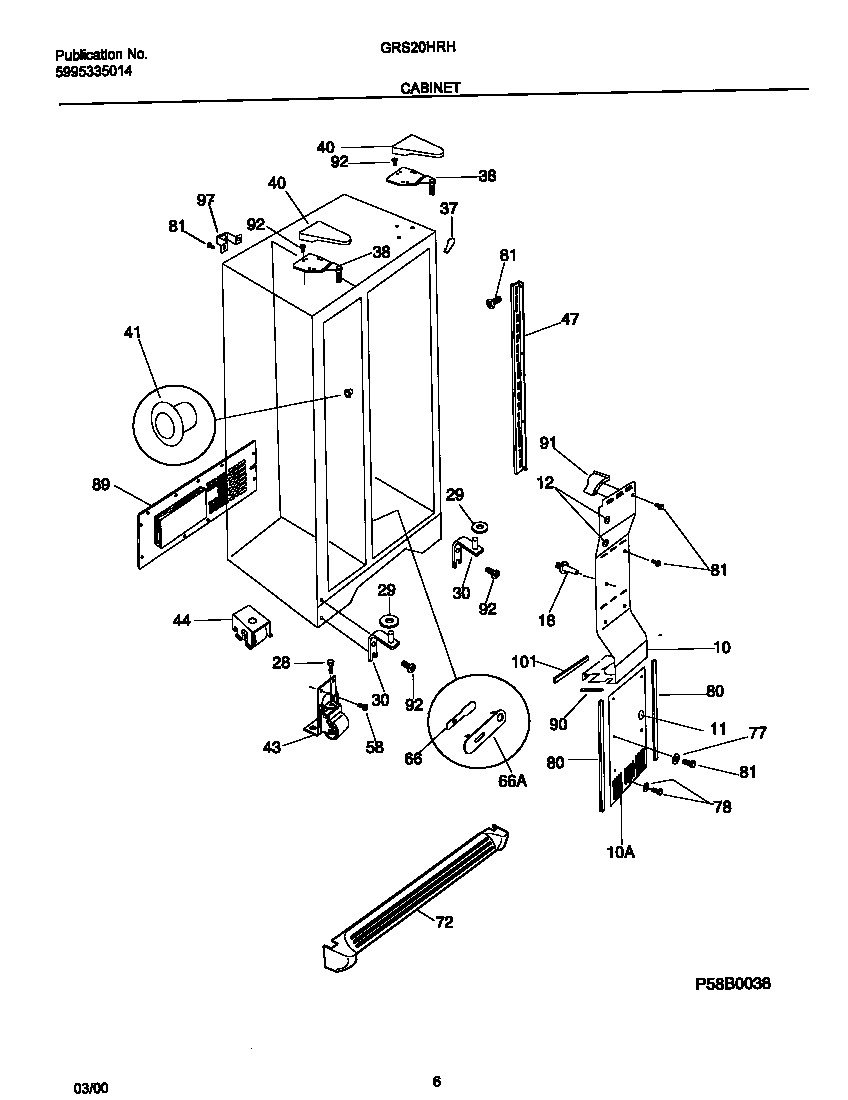

GRS20HRHW2 04 – CABINET

GRS20HRHW2 04 – CABINET

Written by

in

GRS20HRHW2 04 – CABINET

Products

PositionProduct
*46257PLUG-WTR INLET TUBE
*46253WCI 5303322647
*46248SUPPORT-AIR DUCT CVR,1.83“ LONG
*46247NUT, “U“ TYPE, NO. 8-15(A), FAN MOTOR MOUNT (NOT ILLUSTRATED)
*46258PLUG, BUTTON, CABINET LINER (NI)
*46249WCI 218871201
*46254WCI 218902101
*46250WCI 218979601
*462525304500407 Frigidaire Refrigerator Shelf Mounting Grommet
*46251WCI 218979701
*462555303321319 Frigidaire Refrigerator White Touch Up Paint
10WCI 218748902
10BWASHER, EXT TOOTH LOCK, NO. 10 (NON-ILLUSTRATED)
10AWCI 218751301
115303208309 Frigidaire Refrigerator Plug Hole
12WCI 5303291143
18WCI 5303289043
28WCI 5303289062
29WCI 215314301
30BRACKET-LOWER HINGE,RH/LH ,W/HINGE PIN
37WCI 5303321081
38WCI 218215241
40WCI 5303318773
415304509705 Frigidaire Refrigerator Grommet
43WCI 218615300
44WCI 218738300
47WCI 218659500
66WCI 218171301
66WCI 215050201
72WCI 218359604
77WASHER-NYLON,3/16 X 5/8 OD
785304455651 Frigidaire Refrigerator Screw
80WCI 218249802
815304455650 Frigidaire Refrigerator Screw
89WCI 5303288947
90WCI 215022602
91WCI 218769900
92241710601 Frigidaire Refrigerator Screw
97WCI 5303289299
101WCI 218663103
