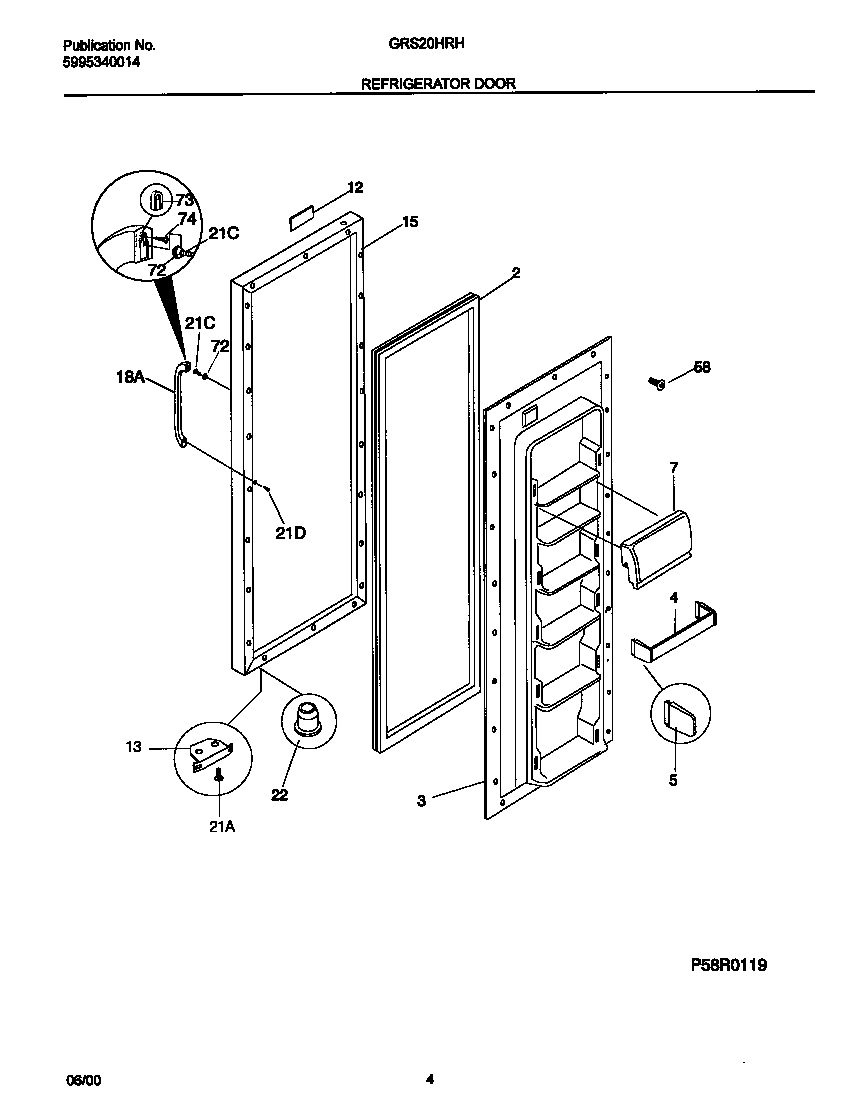

GRS20HRHW3 03 – REFRIGERATOR DOOR

GRS20HRHW3 03 – REFRIGERATOR DOOR

Written by

in

GRS20HRHW3 03 – REFRIGERATOR DOOR

Products

PositionProduct
*73766INSULATION
*73762WCI 218467406
*73765TAPE, ADHESIVE, 12“ LG, FOAM, DOUBLE-FACED (NOT ILLUSTRATED)
*73764WCI 218468024
2WCI 215734312
3WCI 5303288953
4RACK-DOOR,W/END CAPS
5215267701 Frigidaire Refrigerator White Door Shelf Endcap Left or Right
7WCI 5303296797
12WCI 218438907
13WCI 5303289522
15WCI 5303917867
18WCI 218717402
21WCI 215659600
21218252201 Frigidaire Refrigerator Screw
21218578600 Frigidaire Refrigerator Door Stop Mounting Screw
22WCI 5303289320
58218781101 Frigidaire Handle Screw
72WCI 218397000
73218396700 Frigidaire Door Handle Mounting Block
74215503203 Frigidaire Refrigerator Door Handle Screw
