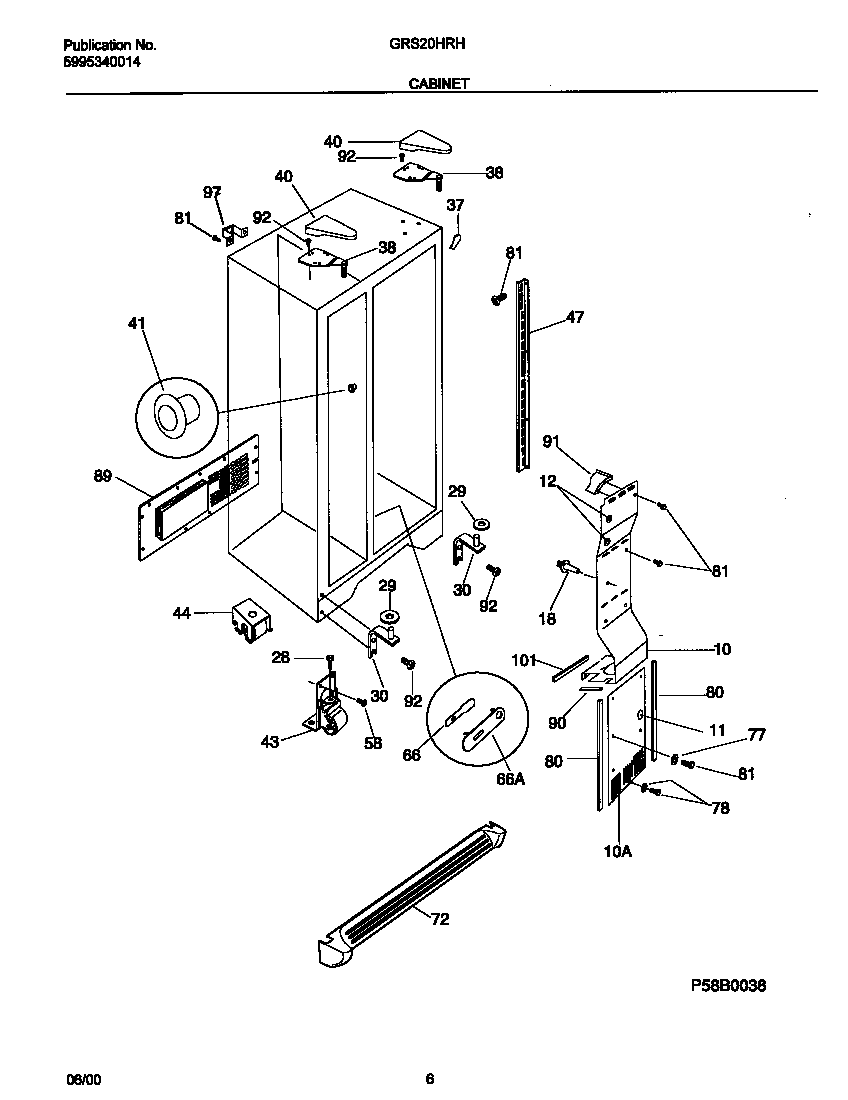

GRS20HRHW3 04 – CABINET

GRS20HRHW3 04 – CABINET

Written by

in

GRS20HRHW3 04 – CABINET

Products

PositionProduct
*73774WCI 218902101
*73773WCI 5303322647
*73768SUPPORT-AIR DUCT CVR,1.83“ LONG
*73767NUT, “U“ TYPE, NO. 8-15(A), FAN MOTOR MOUNT (NOT ILLUSTRATED)
*73777PLUG, BUTTON, CABINET LINER (NI)
*73776TOUCH, UP PAINT, ALMOND (NI)
*73770WCI 218979701
*73771WCI 218979601
*737725304500407 Frigidaire Refrigerator Shelf Mounting Grommet
*73769WCI 218871201
10WCI 5303289038
10AWCI 218751301
10BWASHER, EXT TOOTH LOCK, NO. 10 (NON-ILLUSTRATED)
115303208309 Frigidaire Refrigerator Plug Hole
12WCI 5303291143
18WCI 5303289043
28WCI 5303289062
29WCI 215314301
30BRACKET-LOWER HINGE,RH/LH ,W/HINGE PIN
37WCI 5303321082
38WCI 218215249
40WCI 5303318774
415304509705 Frigidaire Refrigerator Grommet
43WCI 218615300
44WCI 218738300
47WCI 218659500
66WCI 215050201
66WCI 218171301
72WCI 218359608
77WASHER-NYLON,3/16 X 5/8 OD
785304455651 Frigidaire Refrigerator Screw
80WCI 218249802
815304455650 Frigidaire Refrigerator Screw
89WCI 5303288947
90WCI 215022602
91WCI 218769900
92241710601 Frigidaire Refrigerator Screw
97WCI 5303289299
101WCI 218663103
