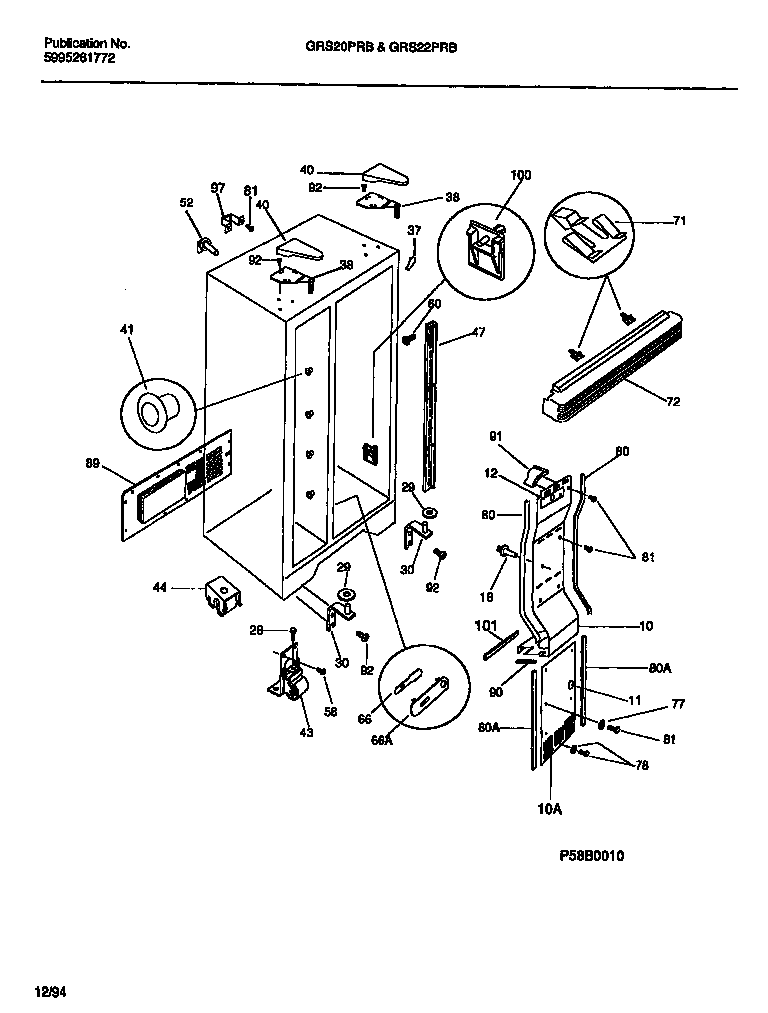

GRS20PRBD1 04 – CABINET

Written by

Products

Position	Product
*37564	WASHER, EXT TOOTH LOCK, NO. 10 (NON-ILLUSTRATED)
*37568	TOUCH, UP PAINT, ALMOND (NI)
*37569	PLUG, BUTTON, CABINET LINER (NI)
10A	WCI 5303289035
10	WCI 5303289038
11	5303208309 Frigidaire Refrigerator Plug Hole
12	WCI 5303291143
18	WCI 5303289043
18	SUPPORT-AIR DUCT CVR,1.83“ LONG
28	WCI 5303289062
29	WCI 215003200
30	TAPPING PLATE, LH (NOT ILLUSTRATED)
30	BRACKET-LOWER HINGE,RH/LH ,W/HINGE PIN
30	TAPPING PLATE, RH (NOT ILLUSTRATED)
37	TRIM-CABINET CORNER, ALMOND
38	BRACKET, UPPER HINGE, W/CLOSER, WHITE
40	WCI 5303288946
41	WCI 5308009757
41	5304509705 Frigidaire Refrigerator Grommet
43	WCI 5303289059
43	SCREW-ROLLER MTG,SPCL IND HEX HD, 5/16-18(23) X 7/8
44	WCI 215163900
47	WCI 5303288974
52	TUBE-WATER,ICE MOLD FILL ,ELBOW
52	PLUG-WTR INLET TUBE
60	5304455852 Frigidaire Refrigerator Screw
66	WCI 215050201
66A	WCI 218171301
71	SCREW-CLIP/GRILLE, PAN HEAD, 6-20AB X 1/4 (NOT ILLUSTRATED)
71	WCI 215003300
72	WCI 215362911
77	WASHER-NYLON,3/16 X 5/8 OD
78	5304455651 Frigidaire Refrigerator Screw
80	WCI 218154003
81	5304455650 Frigidaire Refrigerator Screw
89	WCI 5303288947
90	WCI 215022602
91	WCI 215175300
92	241710601 Frigidaire Refrigerator Screw
97	WCI 5303289299
100	SUPPORT-PAN COVER
