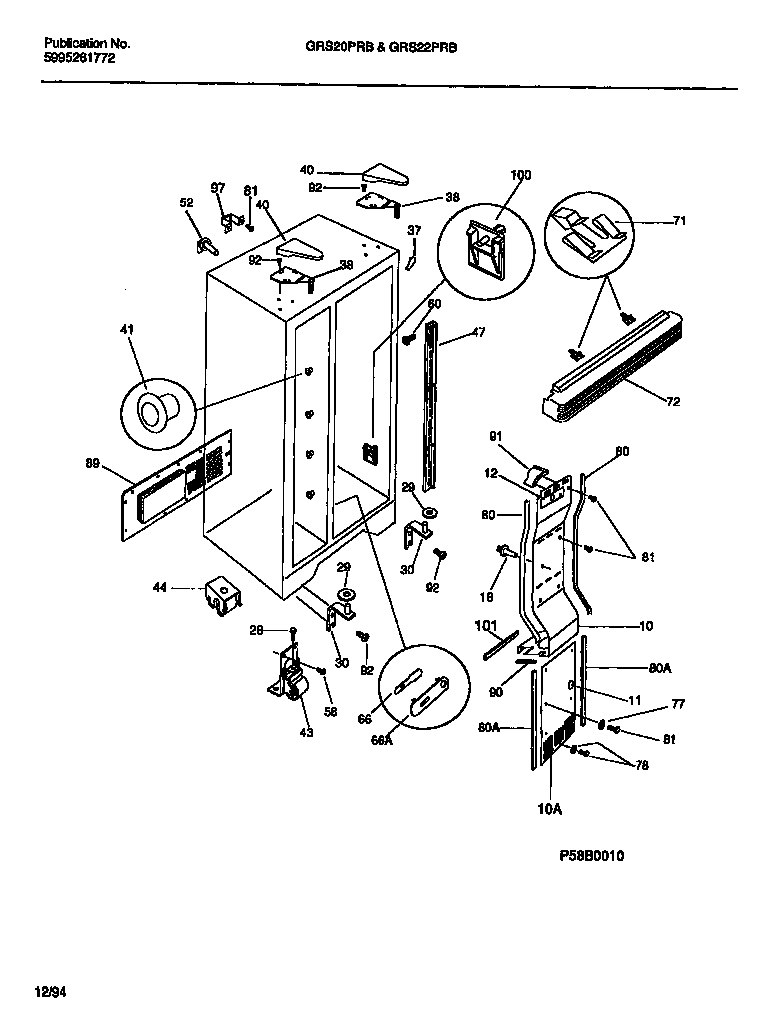

GRS20PRBW1 04 – CABINET

GRS20PRBW1 04 – CABINET

Written by

in

GRS20PRBW1 04 – CABINET

Products

PositionProduct
*37564WASHER, EXT TOOTH LOCK, NO. 10 (NON-ILLUSTRATED)
*375675303321319 Frigidaire Refrigerator White Touch Up Paint
*37569PLUG, BUTTON, CABINET LINER (NI)
10WCI 5303289038
10AWCI 5303289035
115303208309 Frigidaire Refrigerator Plug Hole
12WCI 5303291143
18SUPPORT-AIR DUCT CVR,1.83“ LONG
18WCI 5303289043
28WCI 5303289062
29WCI 215003200
30TAPPING PLATE, LH (NOT ILLUSTRATED)
30TAPPING PLATE, RH (NOT ILLUSTRATED)
30BRACKET-LOWER HINGE,RH/LH ,W/HINGE PIN
37TRIM-CABINET CORNER, WHITE
38BRACKET, UPPER HINGE, W/CLOSER, WHITE
40WCI 5303288945
415304509705 Frigidaire Refrigerator Grommet
41WCI 5308009757
43SCREW-ROLLER MTG,SPCL IND HEX HD, 5/16-18(23) X 7/8
43WCI 5303289059
44WCI 215163900
47WCI 5303288974
52PLUG-WTR INLET TUBE
52TUBE-WATER,ICE MOLD FILL ,ELBOW
605304455852 Frigidaire Refrigerator Screw
66AWCI 218171301
66WCI 215050201
71WCI 215003300
71SCREW-CLIP/GRILLE, PAN HEAD, 6-20AB X 1/4 (NOT ILLUSTRATED)
72WCI 215362901
77WASHER-NYLON,3/16 X 5/8 OD
785304455651 Frigidaire Refrigerator Screw
80WCI 218154003
815304455650 Frigidaire Refrigerator Screw
89WCI 5303288947
90WCI 215022602
91WCI 215175300
92241710601 Frigidaire Refrigerator Screw
97WCI 5303289299
100SUPPORT-PAN COVER
