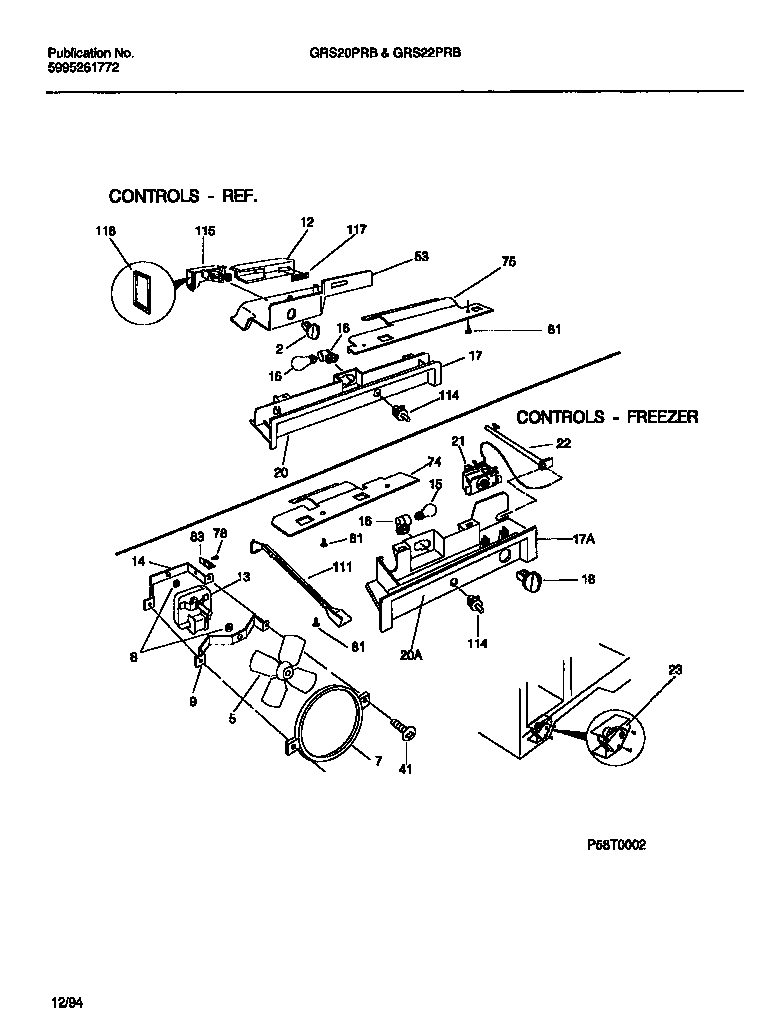

GRS20PRBW1 07 – REFRIGERATOR & FREEZER CONTROLS

GRS20PRBW1 07 – REFRIGERATOR & FREEZER CONTROLS

Written by

in

GRS20PRBW1 07 – REFRIGERATOR & FREEZER CONTROLS

Products

PositionProduct
*37566SCREW-CONTROL BOX MTG,HEX HEAD ,8-15A X 1.000,REFR/FRZR
2WCI 215028602
55308000010 Frigidaire Refrigerator Evaporator Fan Blade
7RING-FAN ORIFICE
8G187559 Frigidaire Refrigerator Bushing
9WCI 5303205118
12WCI 215901100
13215474201 Frigidaire Refrigerator Washer
13WCI 215348100
14BRACKET-MOTOR MTG, REAR
15316538904 Frigidaire Oven Lamp Light
16241559801 Frigidaire Light Socket Refrigerator
17CONTROL BOX, REFR
17AWCI 5303289056
18WCI 215051003
20WCI 5303306169
20AWCI 5303306168
21WCI 5303294323
22WCI 3018891
235304455649 Frigidaire Refrigerator Screw
23SHIELD-DEFROST TIMR,BTM
23COVER-DEFROST TIMER, TOP
23215846602 Frigidaire Refrigerator 8-Hour Defrost Timer
415308000039 Frigidaire Refrigerator Screw
41NUT, “U“ TYPE, NO. 8-15(A), FAN MOTOR MOUNT (NOT ILLUSTRATED)
53WCI 215625300
74WCI 5303289516
75WCI 5303289052
785304455651 Frigidaire Refrigerator Screw
815304455650 Frigidaire Refrigerator Screw
83WCI 5308000107
111WCI 5303289024
1145303289051 Frigidaire Refrigerator Light Switch
115WCI 215011501
116WCI 215011400
117WCI 215011700
