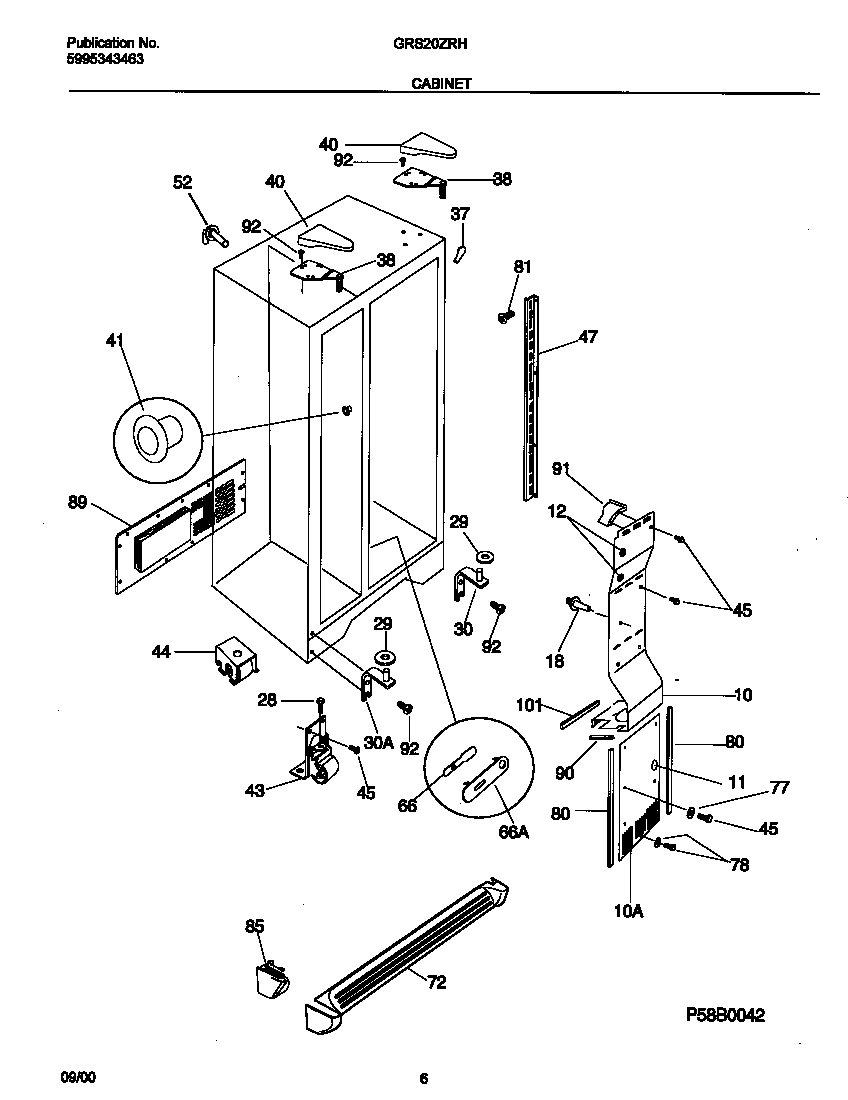

GRS20ZRHD7 04 – CABINET

GRS20ZRHD7 04 – CABINET

Written by

in

GRS20ZRHD7 04 – CABINET

Products

PositionProduct
*75368WCI 5303322647
*75365WCI 218871201
*75369WCI 218902101
*75364WCI 215598900
*75366WCI 218979701
*75363SUPPORT-AIR DUCT CVR,1.83“ LONG
*75362NUT, “U“ TYPE, NO. 8-15(A), FAN MOTOR MOUNT (NOT ILLUSTRATED)
*75370TOUCH, UP PAINT, ALMOND (NI)
*753675304500407 Frigidaire Refrigerator Shelf Mounting Grommet
10BWASHER, EXT TOOTH LOCK, NO. 10 (NON-ILLUSTRATED)
10AWCI 218751303
10WCI 218748901
115303208309 Frigidaire Refrigerator Plug Hole
125303001147 Frigidaire Refrigerator Plug-Harness Hole
18WCI 5303289043
28WCI 5303289062
29WCI 215314301
30BWCI 218979601
30WCI 218993701
30AWCI 218993901
37WCI 5303321082
38BWCI 218215251
38AWCI 218215249
40WCI 5303318774
415304509705 Frigidaire Refrigerator Grommet
43WCI 218615300
44WCI 218738300
455304455651 Frigidaire Refrigerator Screw
47WCI 218659500
52TUBE-WATER,ICE MOLD FILL ,ELBOW
66WCI 218171301
66WCI 215050201
72WCI 218359614
77WASHER-NYLON,3/16 X 5/8 OD
80WCI 218249802
815304455650 Frigidaire Refrigerator Screw
85WCI 218922703
89WCI 215741407
90WCI 215022602
91WCI 218964701
92241710601 Frigidaire Refrigerator Screw
101BWCI 218663103
101AWCI 215305701
