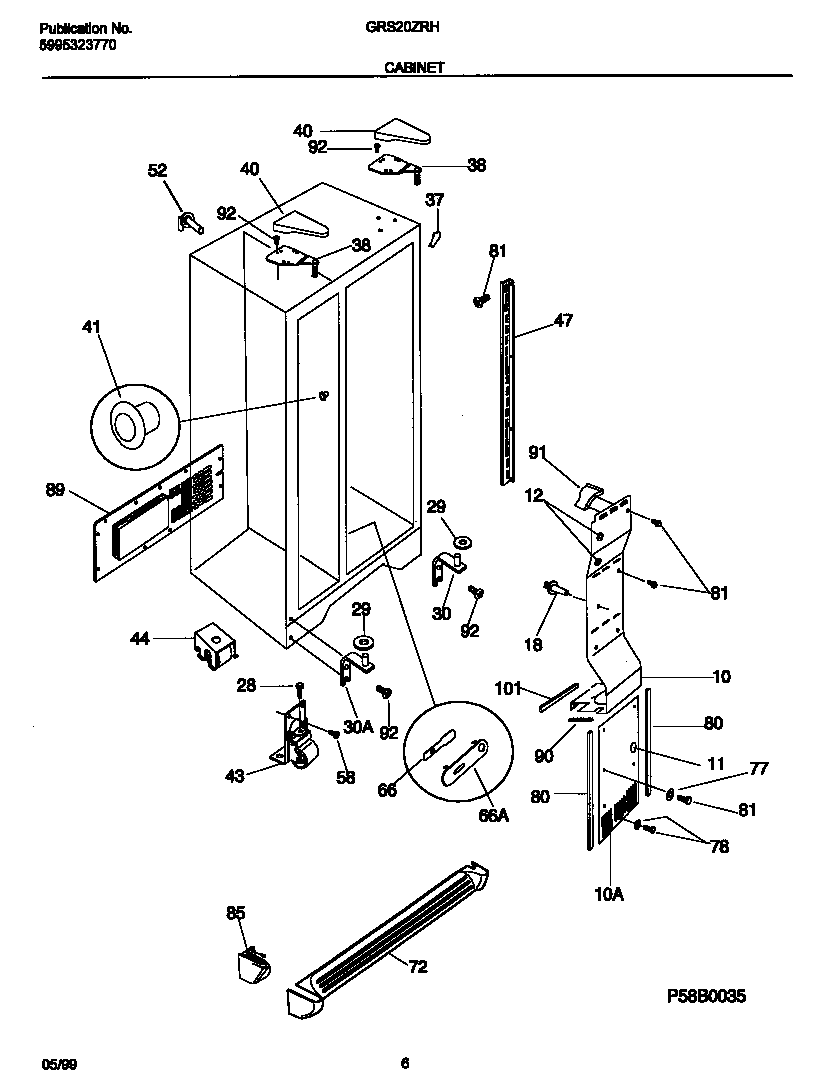

GRS20ZRHW0 04 – CABINET

GRS20ZRHW0 04 – CABINET

Written by

in

GRS20ZRHW0 04 – CABINET

Products

PositionProduct
*49124SUPPORT-AIR DUCT CVR,1.83“ LONG
*49127WCI 218730800
*49129SCREW-ROLLER MTG,SPCL IND HEX HD, 5/16-18(23) X 7/8
*49131WCI 5303322647
*49123NUT, “U“ TYPE, NO. 8-15(A), FAN MOTOR MOUNT (NOT ILLUSTRATED)
*49130WCI 218154003
*49125WCI 215598900
*49126WCI 218871201
*491285304500407 Frigidaire Refrigerator Shelf Mounting Grommet
*49133218515401 Frigidaire Refrigerator Clip
*491355303321319 Frigidaire Refrigerator White Touch Up Paint
*49132WCI 218902101
10BWASHER, EXT TOOTH LOCK, NO. 10 (NON-ILLUSTRATED)
10WCI 218748901
10AWCI 218751301
115303208309 Frigidaire Refrigerator Plug Hole
125303001147 Frigidaire Refrigerator Plug-Harness Hole
18WCI 5303289043
28WCI 5303289062
29WCI 215314301
30BRACKET-LOWER HINGE,RH/LH ,W/HINGE PIN
30AWCI 215009000
30BWCI 218730700
37WCI 5303321081
38BBRACKET-UPPER HINGE, WITH CLOSER, WHITE, LH
38AWCI 218215213
40WCI 5303318773
415304509705 Frigidaire Refrigerator Grommet
43WCI 218615300
44WCI 218738300
47WCI 218659500
52TUBE-WATER,ICE MOLD FILL ,ELBOW
66WCI 215050201
66WCI 218171301
72WCI 218359613
77WASHER-NYLON,3/16 X 5/8 OD
785304455651 Frigidaire Refrigerator Screw
80WCI 218249802
815304455650 Frigidaire Refrigerator Screw
85WCI 218359801
89WCI 215741407
90WCI 215022602
91WCI 218769900
92241710601 Frigidaire Refrigerator Screw
101BWCI 218663103
101AWCI 215305701
