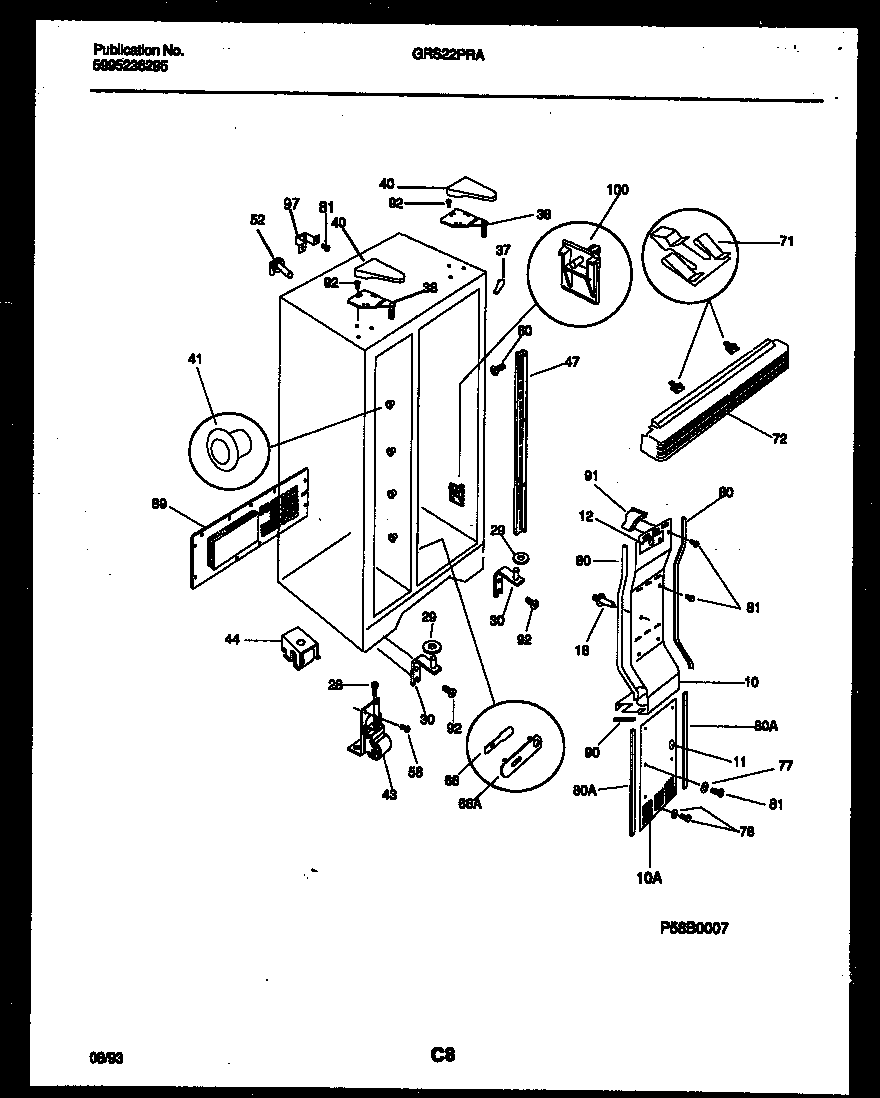

GRS22PRAD0 04 – CABINET PARTS

GRS22PRAD0 04 – CABINET PARTS

Written by

in

GRS22PRAD0 04 – CABINET PARTS

Products

PositionProduct
*59664PLUG, BUTTON, CABINET LINER (NI)
10WCI 5303289495
10AWCI 5303289494
115303208309 Frigidaire Refrigerator Plug Hole
12WCI 5303291143
18ASUPPORT-AIR DUCT CVR,1.83“ LONG
18WCI 5303289043
28WCI 5303289062
29WCI 215003200
29AWCI 215314300
30BTAPPING PLATE, RH (NOT ILLUSTRATED)
30BRACKET-LOWER HINGE,RH/LH ,W/HINGE PIN
30ATAPPING PLATE, LH (NOT ILLUSTRATED)
37TRIM-CABINET CORNER, ALMOND
38WCI 215595600
40WCI 5303288946
415304509705 Frigidaire Refrigerator Grommet
41A5304500407 Frigidaire Refrigerator Shelf Mounting Grommet
43WCI 5303289059
43ASCREW-ROLLER MTG,SPCL IND HEX HD, 5/16-18(23) X 7/8
44WCI 215163900
47WCI 5303288974
52WCI 5303289294
52APLUG-WTR INLET TUBE
605304455852 Frigidaire Refrigerator Screw
66AWCI 215050101
66WCI 215050201
71WCI 215003300
72WCI 5303289508
72ASCREW-CLIP/GRILLE, PAN HEAD, 6-20AB X 1/4 (NOT ILLUSTRATED)
77WASHER-NYLON,3/16 X 5/8 OD
78AWASHER, EXT TOOTH LOCK, NO. 10 (NON-ILLUSTRATED)
785304455651 Frigidaire Refrigerator Screw
80AWCI 5303289036
80WCI 5303289037
815304455650 Frigidaire Refrigerator Screw
89A218843801 Frigidaire Refrigerator Screw
89WCI 215176300
90WCI 215022602
91WCI 215177600
92241710601 Frigidaire Refrigerator Screw
97WCI 5303289299
100SUPPORT-PAN COVER
