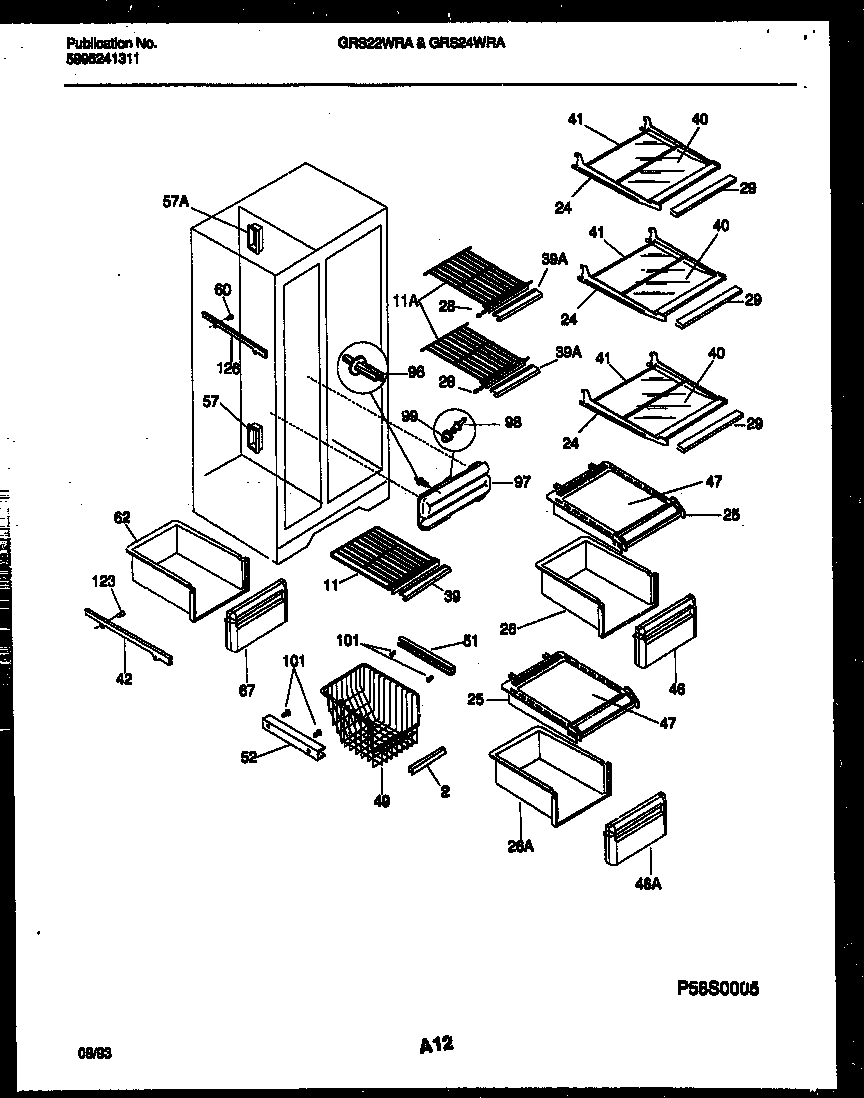

GRS22WRAD0 07 – SHELVES AND SUPPORTS

GRS22WRAD0 07 – SHELVES AND SUPPORTS

Written by

in

GRS22WRAD0 07 – SHELVES AND SUPPORTS

Products

PositionProduct
*59421WCI 215339900
2WCI 5303298147
11ASHELF-FREEZER, FIXED WIRE
11WCI 5303289518
24WCI 215069039
25ATRIM-STORAGE PAN CVR,LOWER
25COVER-STORAGE PAN, UPPER & LOWER, (2)
26A5303289501 Frigidaire Refrigerator Lower Storage Pan Os1
265303289500 Frigidaire Refrigerator Upper Storage Pan
28END CAP-SHELF, PROTECTOR, LOWER FZR SHELF
29ARETAINER-GLASS (3) (NON-ILLUSTRATED)
29WCI 5303298154
39ATRIM, FRZR SHELF
39WCI 5303298152
40WCI 5303300401
41WCI 5303298150
41ALOCK-SHELF TRIM, REAR
42WCI 215002301
42AHANGER-PAN/TRAY, RH
46WCI 215042005
46AWCI 215042004
47AWCI 5303289387
47INSERT-PAN COVER, GLASS, W/GRAPHICS
49WCI 5303289521
51WCI 5303288960
52WCI 215162501
57AWCI 5303289064
57WCI 5303271653
605304455852 Frigidaire Refrigerator Screw
62WCI 5303289517
67WCI 5303298203
96WCI 215192600
975303918258 Frigidaire Refrigerator P-1 Water Tank Kit
98CONNECTOR – TUBE
99GROMMET-TANK
101131420300 Frigidaire Screw
123WCI 08014528
126WCI 215205400
126WCI 215205200
