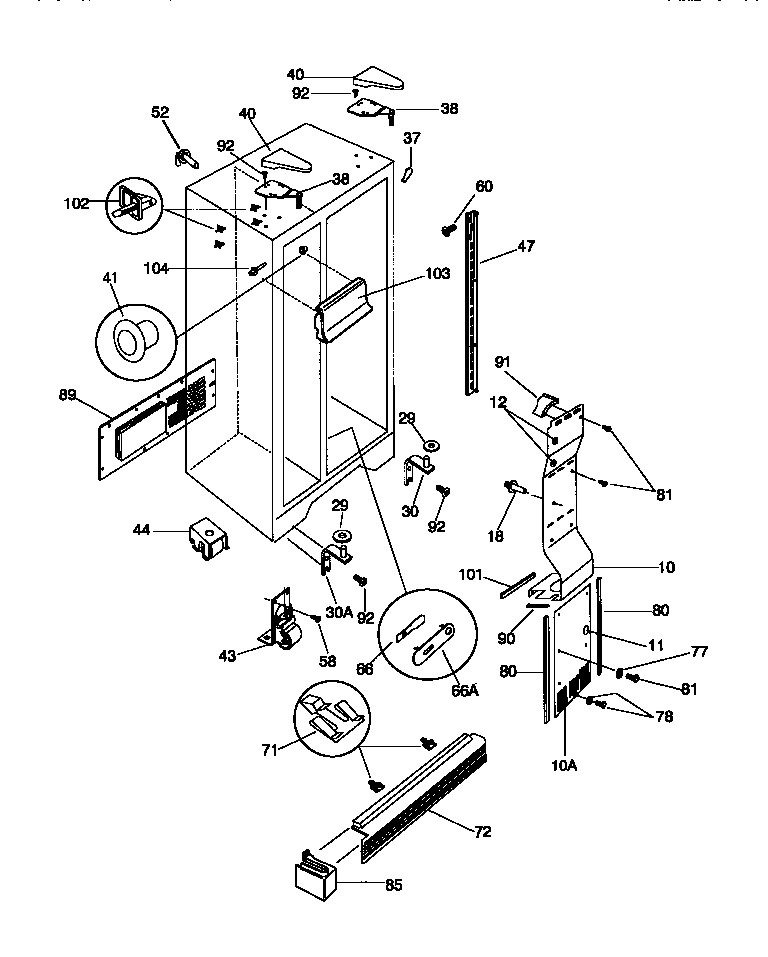

GRS24WNCD1 05 – CABINET

Written by

Products

Position	Product
*73206	TOUCH, UP PAINT, ALMOND (NI)
10	WCI 215637602
10A	WCI 215637400
11	5303208309 Frigidaire Refrigerator Plug Hole
12	5303001147 Frigidaire Refrigerator Plug-Harness Hole
18A	SUPPORT-AIR DUCT CVR,1.83“ LONG
18	WCI 5303289043
28	WCI 5303289062
29	WCI 215003200
29A	WCI 215598900
30B	TAPPING PLATE, RH (NOT ILLUSTRATED)
30	BRACKET-LOWER HINGE,RH/LH ,W/HINGE PIN
30A	WCI 215009000
30C	TAPPING PLATE, LH (NOT ILLUSTRATED)
37	TRIM-CABINET CORNER, ALMOND
38	WCI 218215209
40	WCI 5303288946
41	5304509705 Frigidaire Refrigerator Grommet
41A	5304500407 Frigidaire Refrigerator Shelf Mounting Grommet
43A	SCREW-ROLLER MTG,SPCL IND HEX HD, 5/16-18(23) X 7/8
43	WCI 218615300
44	WCI 215163900
47	WCI 5303288974
52	TUBE-WATER,ICE MOLD FILL ,ELBOW
60	5304455852 Frigidaire Refrigerator Screw
66	WCI 215050201
66A	WCI 218171301
71A	SCREW-CLIP/GRILLE, PAN HEAD, 6-20AB X 1/4 (NOT ILLUSTRATED)
71	WCI 215003300
72	WCI 5303295758
77	WASHER-NYLON,3/16 X 5/8 OD
78A	WASHER, EXT TOOTH LOCK, NO. 10 (NON-ILLUSTRATED)
78	5304455651 Frigidaire Refrigerator Screw
80	WCI 218249801
81	5304455650 Frigidaire Refrigerator Screw
85	WCI 215003803
89	WCI 215176300
90	WCI 215022602
91	WCI 215177600
92	241710601 Frigidaire Refrigerator Screw
101	WCI 215305702
102	SUPPORT, MOTOR BRKT, & SHELF
103	WCI 215413100
104A	SCREW-ICE DR SUPT, CR SPCL PAN HD, 8-15(A) X 1-5/8 (NOTILLUSTRATED)
104	SUPPORT-ICE ACCESS DR
