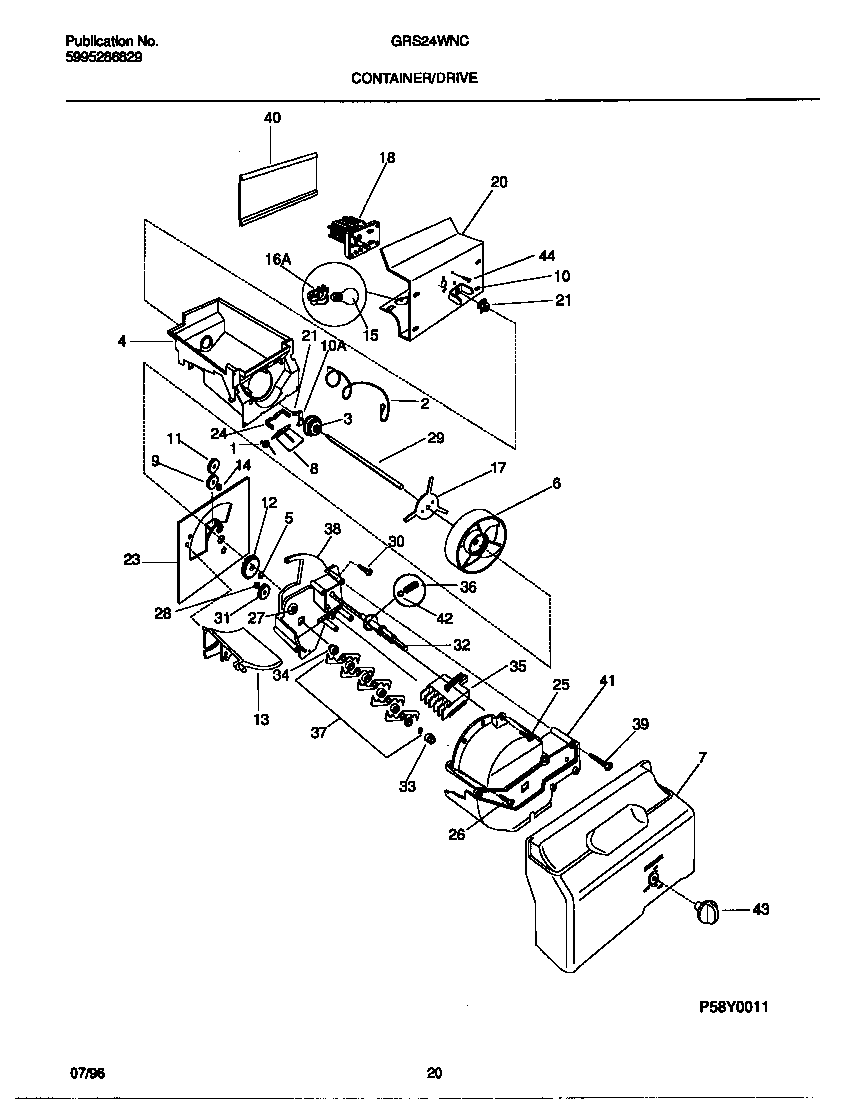

GRS24WNCD4 09 – CONTAINER/DRIVE

Products

Position	Product
*83853	WCI 215781700
1	WCI 215571300
2	WCI 218232500
3	WCI 218232300
4A	WCI 218216800
4B	LABEL-ICE CONTAINER (NOT ILLUSTRATED)
5	WCI 215748105
6	WCI 215752800
7	WCI 215421614
8	WCI 215571200
9	WCI 215419700
10	WCI 218232800
10	241726501 Frigidaire Refrigerator Drive Bar
11	WCI 215755200
12	WCI 215420400
13	WCI 218285200
14	WCI 215419900
15	316538904 Frigidaire Oven Lamp Light
16	218906802 Frigidaire Light Lamp Socket
17	WCI 215754800
18A	5304462594 Frigidaire Refrigerator Motor-Auger
18B	HARNESS-WIRING, AUGER MOTOR (NOT ILLUSTRATED)
20	WCI 215285301
23C	STUD (NOT ILLUSTRATED)
23A	WCI 215755300
23B	RING-RETAINER (NOT ILLUSTRATED)
24	WCI 215571400
25	WCI 215421400
26	215503203 Frigidaire Refrigerator Door Handle Screw
27	WCI 215748400
28	WCI 215755100
29	WCI 215757501
30	WCI 215757300
31	WCI 215757400
32B	RING-SNAP (NOT ILLUSTRATED)
32A	WCI 215747501
33	WCI 215748200
34	WCI 215748300
35	WCI 215753500
36	WCI 215756700
37E	BLADE-CRUSHER, NO. 4 (NOT ILLUSTRATED)
37G	BLADE-CRUSHER, NO. 2 (NOT ILLUSTRATED)
37H	BLADE-CRUSHER, NO. 1 (NOT ILLUSTRATED)
37A	WCI 215756100
37J	SPACER, (4) (NOT ILLUSTRATED)
37F	BLADE-CRUSHER, NO. 3 (NOT ILLUSTRATED)
37D	BLADE-CRUSHER, NO. 5 (NOT ILLUSTRATED)
37B	SHAFT-CRUSHER (NOT ILLUSTRATED)
37C	RING-SNAP (NOT ILLUSTRATED)
37I	SPACER, (2) (NOT ILLUSTRATED)
38	WCI 218270100
39	WCI 215757000
40	WCI 215363000
41	WCI 218270200
42	WCI 215756000
43A	WCI 215755003
43B	SPRING-KNOB (NOT ILLUSTRATED)
44	WCI 218359200
