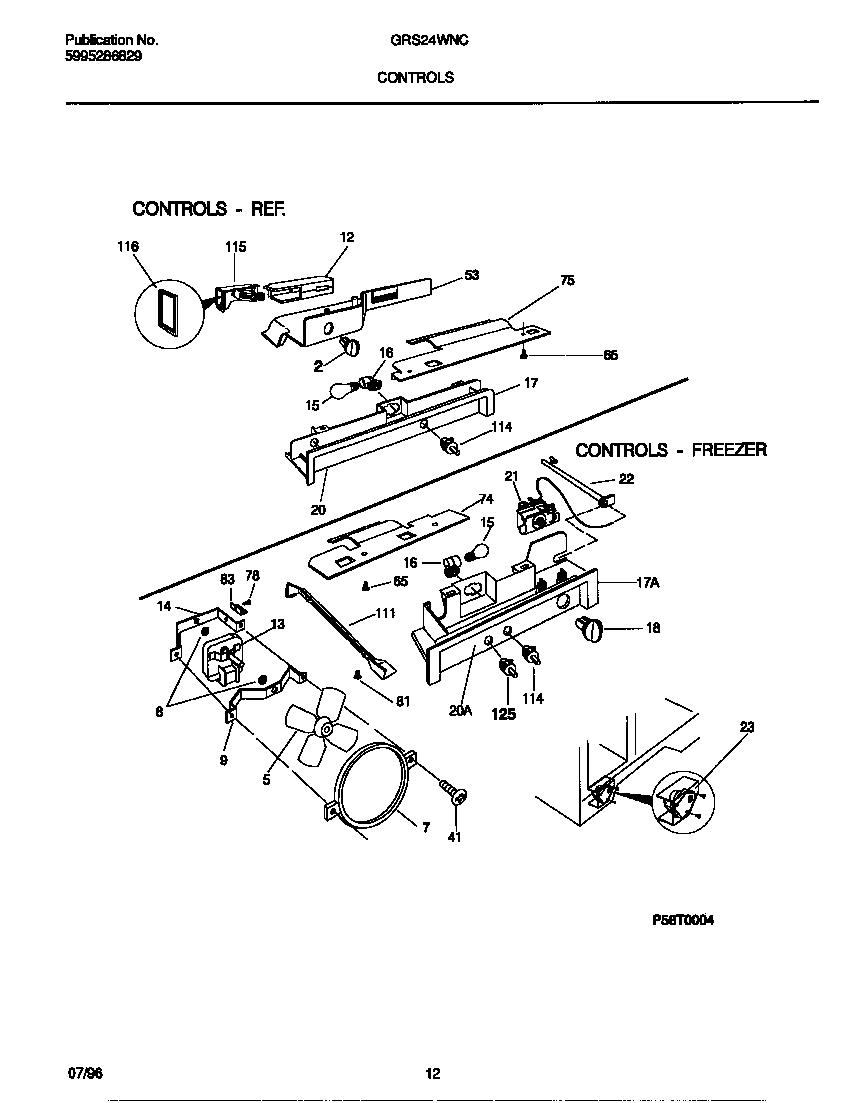

GRS24WNCW4 06 – CONTROLS

GRS24WNCW4 06 – CONTROLS

Written by

in

GRS24WNCW4 06 – CONTROLS

Products

PositionProduct
*83849SCREW-CONTROL BOX MTG,HEX HEAD ,8-15A X 1.000,REFR/FRZR
2WCI 215028605
55308000010 Frigidaire Refrigerator Evaporator Fan Blade
7RING-FAN ORIFICE
8G187559 Frigidaire Refrigerator Bushing
9WCI 5303205118
12WCI 215809600
13B215474201 Frigidaire Refrigerator Washer
13AWCI 218394100
14BRACKET-MOTOR MTG, REAR
15316538904 Frigidaire Oven Lamp Light
16241559801 Frigidaire Light Socket Refrigerator
16218906802 Frigidaire Light Lamp Socket
17ACONTROL BOX, FRZR
17WCI 5303296805
17BWCI 215980800
18WCI 215051008
20WCI 5303310340
20WCI 5303310339
21BWCI 5303001260
21AWCI 5303294323
22WCI 3018891
23DSHIELD-DEFROST TIMR,BTM
23BCOVER-DEFROST TIMER, TOP
23A215846602 Frigidaire Refrigerator 8-Hour Defrost Timer
23C5304455649 Frigidaire Refrigerator Screw
41BNUT, “U“ TYPE, NO. 8-15(A), FAN MOTOR MOUNT (NOT ILLUSTRATED)
41A5308000039 Frigidaire Refrigerator Screw
53WCI 215809505
65WCI 5303001361
74WCI 218465000
75WCI 218465100
785304455651 Frigidaire Refrigerator Screw
815304455650 Frigidaire Refrigerator Screw
83WCI 5308000107
111WCI 5303297842
1145303289051 Frigidaire Refrigerator Light Switch
115WCI 215011502
116WCI 215011400
125WCI 215334201
