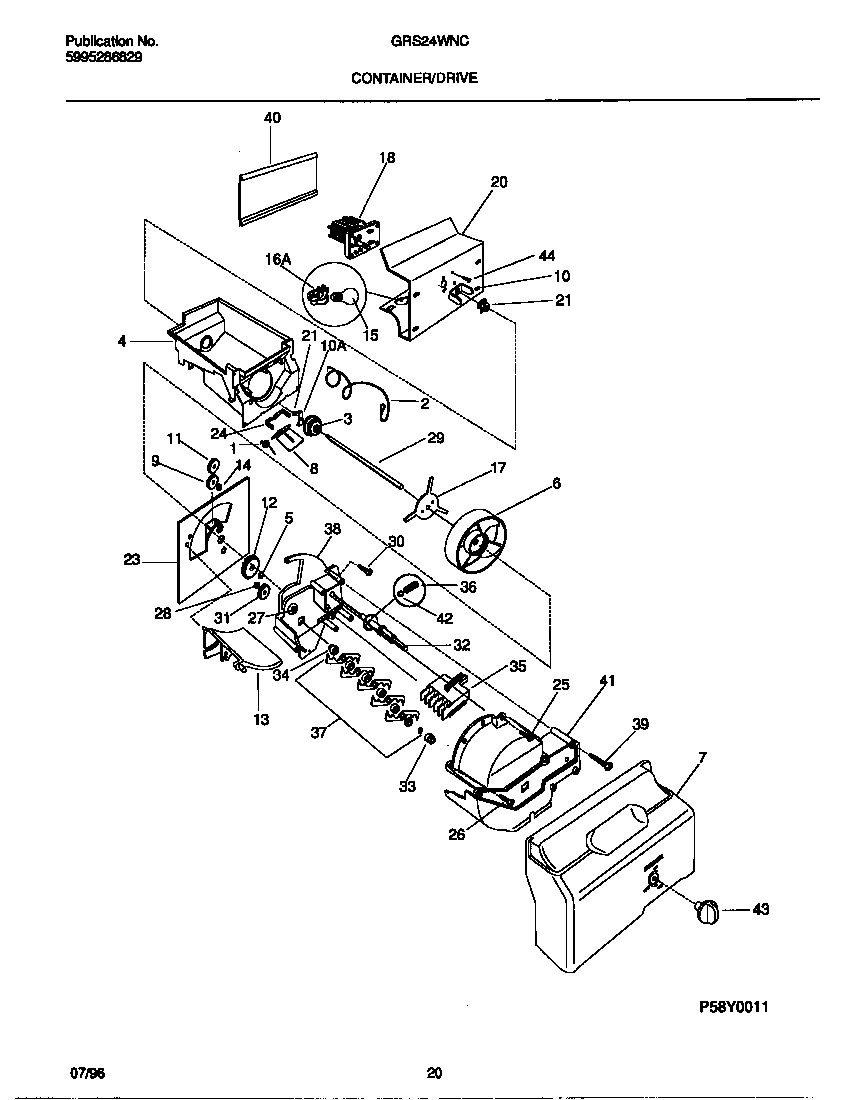

GRS24WNCW4 09 – CONTAINER/DRIVE

GRS24WNCW4 09 – CONTAINER/DRIVE

Written by

in

GRS24WNCW4 09 – CONTAINER/DRIVE

Products

PositionProduct
*83853WCI 215781700
1WCI 215571300
2WCI 218232500
3WCI 218232300
4AWCI 218216800
4BLABEL-ICE CONTAINER (NOT ILLUSTRATED)
5WCI 215748105
6WCI 215752800
7WCI 215421614
8WCI 215571200
9WCI 215419700
10WCI 218232800
10241726501 Frigidaire Refrigerator Drive Bar
11WCI 215755200
12WCI 215420400
13WCI 218285200
14WCI 215419900
15316538904 Frigidaire Oven Lamp Light
16218906802 Frigidaire Light Lamp Socket
17WCI 215754800
18A5304462594 Frigidaire Refrigerator Motor-Auger
18BHARNESS-WIRING, AUGER MOTOR (NOT ILLUSTRATED)
20WCI 215285301
23CSTUD (NOT ILLUSTRATED)
23AWCI 215755300
23BRING-RETAINER (NOT ILLUSTRATED)
24WCI 215571400
25WCI 215421400
26215503203 Frigidaire Refrigerator Door Handle Screw
27WCI 215748400
28WCI 215755100
29WCI 215757501
30WCI 215757300
31WCI 215757400
32BRING-SNAP (NOT ILLUSTRATED)
32AWCI 215747501
33WCI 215748200
34WCI 215748300
35WCI 215753500
36WCI 215756700
37EBLADE-CRUSHER, NO. 4 (NOT ILLUSTRATED)
37GBLADE-CRUSHER, NO. 2 (NOT ILLUSTRATED)
37HBLADE-CRUSHER, NO. 1 (NOT ILLUSTRATED)
37AWCI 215756100
37JSPACER, (4) (NOT ILLUSTRATED)
37FBLADE-CRUSHER, NO. 3 (NOT ILLUSTRATED)
37DBLADE-CRUSHER, NO. 5 (NOT ILLUSTRATED)
37BSHAFT-CRUSHER (NOT ILLUSTRATED)
37CRING-SNAP (NOT ILLUSTRATED)
37ISPACER, (2) (NOT ILLUSTRATED)
38WCI 218270100
39WCI 215757000
40WCI 215363000
41WCI 218270200
42WCI 215756000
43AWCI 215755003
43BSPRING-KNOB (NOT ILLUSTRATED)
44WCI 218359200
